J6100-1014000/01 Crankcase Ventilation Device Assembly
/ Yuchai YC6J220-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано J63HA-1001000/01 Engine Suspension Assembly J01QA-1002000/02 Cylinder Block Assembly J01QA-1002200/05 Gear Housing Parts J0200-1003000/01 Cylinder Head AND Cylinder Head Cover Assembly J0100-1004000/05 Piston AND Connecting Rod Assembly J6000-1005000/02 Crankshaft Vibration Damper Assembly J5600-1006000/06 Camshaft Assembly J5600-1007000/05 Valve Train Assembly J5R00-1008100/06 Intake Manifold Parts AND J5J9A-1008500/01 Intake Connecting Pipe Parts J61SA-1008200/06 Exhaust Manifold Parts AND J61SA-1008400/01 Exhaust Pipe Shield Parts A0100-1009000/05 Oil Sump Assembly A0200-1010000/04 Oil Strainer Assembly A0200-1011000/02 Oil Pump Assembly A3100-1012000/02 Oil Filter Assembly A3519-1013000/04 Oil Cooler Assembly J6100-1014000/01 Crankcase Ventilation Device Assembly J62QA-1028000/02 Oil Dipstick Assembly J5600-1104000/32 Fuel Supply Pipeline Assembly J63SB-1105000/02 Fuel Filter Assembly J5600-1111000/06 Fuel Injection Pump Assembly J0100-1112000/03 Fuel Injector Assembly J5LSB-1118000/01 Turbocharger Assembly 631-1305000/08 Water Drain Assembly J030M-1306000/01 Thermostat Assembly A0100-1307000/02 Water Pump Assembly J40KC-1600000/04 Power Output Assembly J03SA-3407000/02 Steering Pump Assembly J01SB-3509000/04 Pneumatic Air Compressor Assembly J620C-3701000/11 Generator Assembly G6098-3708000/01 Starter Assembly J5LSD-3823000/02 Controlling System Assembly L540C-3904000/01 Data Plate LA1YA-3800000/01 Instrument and Sensor Assembly

1

2

3

4

5

6

7

8

9

10

11

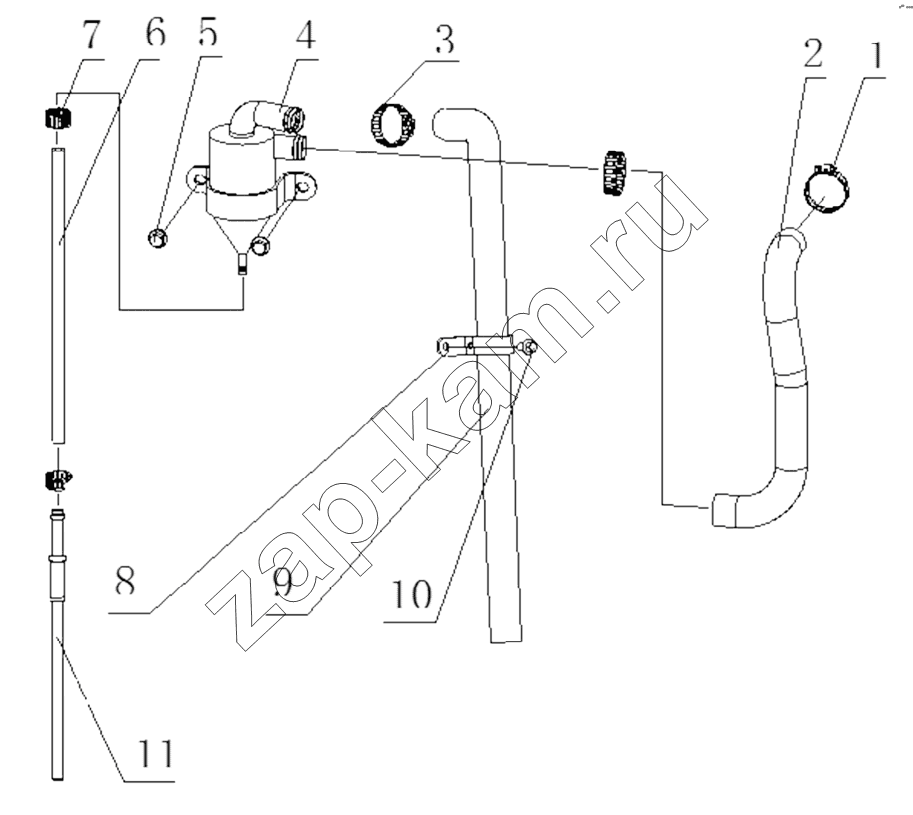

Поз.	Артикул		Название детали	Кол-во
1	Q67645		Хомут d45	2;
2	J5600-1014049A		Вентиляционная трубка	1;
3	Q67638		Кольцевой хомут	3;
4	J5600-1014100A		Сепаратор воды-масла центрифужного типа	1;
5	Q1841016		Болт M10x16	2;
6	J6100-1014025		Oil return soft pipe	1;
7	Q67616		Хомут обруча	2;
8	J3312-1014005		Зажим трубы	1;
9	J5600-1014003A		Вентиляционная мягкая трубка	1;
10	Q1840816		Болт M8x16	1;
11	J61YD-1014070		Сварная чать трубки возврата масла сапуна	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер

Дополнительная информация

×

Название:

Номер:

Примечание:
