5. J4096-1008200/10 Exhaust Pipe Assembly

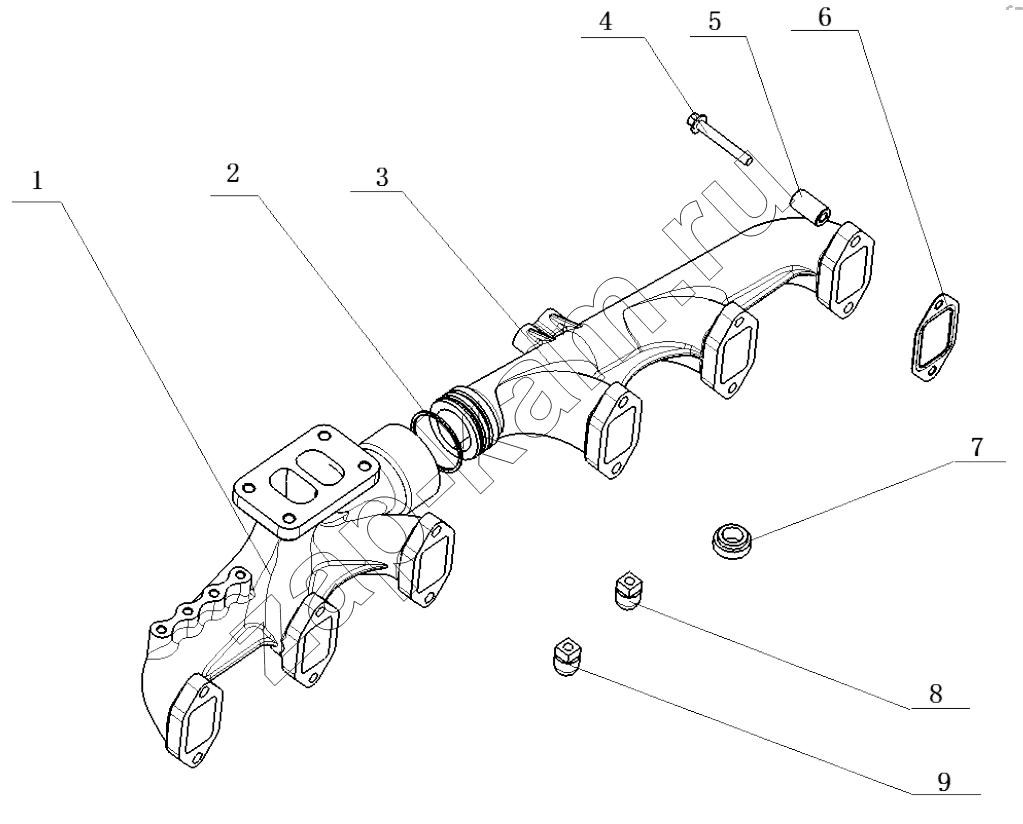

J4096-1008200/10 Exhaust Pipe Assembly
/ Yuchai YC6J225N-52

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано B7741-1001000/01 Engine Suspension Assembly J3C01-1002000/01 Cylinder Block Assembly J3C01-1002200/01 Gear Housing Part J3HJ1-1003000/03 Cylinder Headand Cylinder Head Cover Assembly J4J00-1004000/02 Piston Connecting Rod Assembly J3C01-1005000/01 Crankshaft Vibration Damper Assembly J3C00-1006000/01 Camshaft Assembly J1A00-1007000/02 Valve Train System Assembly J4R00-1008100/05 and J3C00-1008500/03 Intake Manifold Part J4096-1008200/10 Exhaust Pipe Assembly J4096-1009000/01 Oil Sump Assembly J55G1-1028000/02 Oil Dipstick Part 430-1010000/12 Oil Collector Assembly B78C0-1011000/01 Oil Pump Subassembly J421F-1012000/01 Oil Strainer Assembly J4A00-1013000/04 Oil Radiator Assembly J5400-1014000/02 Crankcase Ventilation Device Assembly J4WJ1-1205000/03 Catalytic Converter Assembly J5700-1107000/08 Low-pressure gas filter Assembly LM100-1107000/04 Gas filter assembly J3C01-1113000/01 Gas Supply Device Assembly J3C01-1118000/01 Turbocharger Assembly J54D1-1303000/06 Water Pipeand Hose of Radiator Assembly 631-1305000/08 Water Drain Cock Assembly J3C01-1306000/01 Thermostat Assembly J4A00-1307000/05 Water Pump Assembly J1B04-1308000/02 Fan Assembly J1E99-8104000/05 Air-condition Assembly J4B0C-1600000/01 Power Output Assembly J42FL-3407000/01 Steering Pump Assembly J3C01-3509000/02 Pneumatic Air Compressor Assembly J3602-3701000/06 Generator Assembly J3C00-3705000/01 Ignition System Assembly J55G1-3708000-R Starter Assembly J3C01-3823000/02 Control System Assembly J55G1-3800000/01 Instrument, Sensor Assembly C0000-3904000/01 Data Plate

1

1

2

3

3

4

5

6

7

8

9

Поз.	Артикул		Название детали	Кол-во	Цена
1	J3808-1008202		Rear exhaust pipe	1;	-
1	J3808-1008202-W		Rear exhaust pipe	1;	-
2	J5600-1008223A		Seal ring	4;	-
3	J3808-1008201A		Front exhaust pipe	1;	-
3	J3808-1008201-W		Front exhaust pipe	1;	-
4	Q1840855TF2		Болт	12;	-
5	J45D1-1008226		Втулка болт	12;	-
6	D2000-1008250B		Узел прокладки впускной трубы	6;	-
7	G6800-1008024		Установочное место датчика кислорода	1;	-
8	J3808-1008228		Exhaust pipe preheat sleeve	1;	-
9	J3808-1008229		Exhaust pipe preheat sleeve II	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
