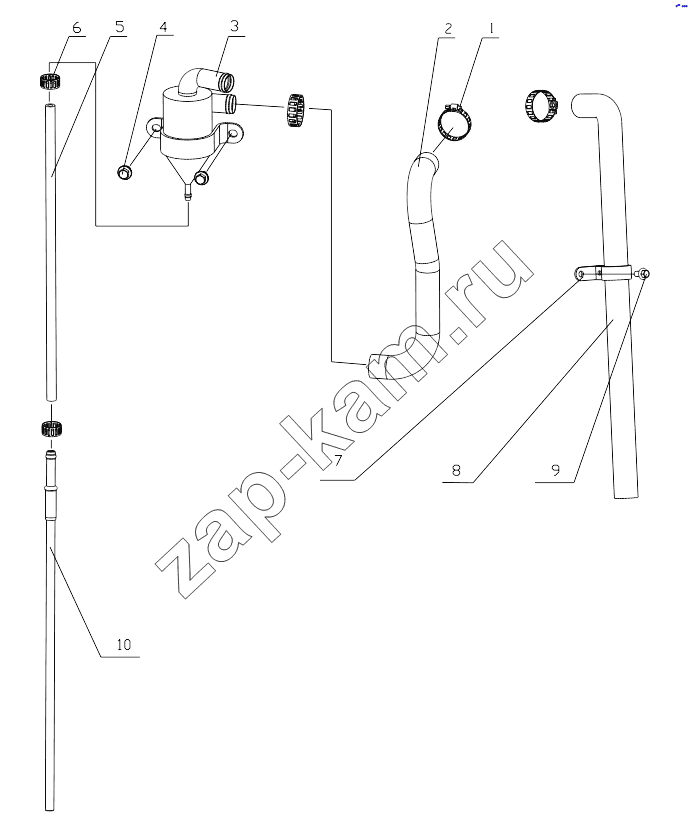

J5600-1014000/02 Crankcase Ventilation Device Assembly
/ Yuchai YC6J245-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано J61JB-1001000/01 Engine Suspension Assembly J01MC-1002000/04 Cylinder Block Assembly J0299-1002200/03 Gear Housing Parts J5600-1003000/02 Cylinder Head and Cylinder Head Cover Assembly J0100-1004000/04 Piston and Connecting Rod Assembly J5J8A-1005000/01 Crankshaft Vibration Damper Assembly J5600-1006000/06 Camshaft Assembly A5A00-1007000/05 Valve Train Assembly J5600-1008100/05 Intake Manifold Parts and J5600-1008500/03 Intake Connecting Pipe Parts J62AA-1008200/12 Exhaust Manifold Parts and J62AA-1008400/04 Exhaust Pipe Shield Parts A30-1009000/08 Oil Sump Assembly A3000-1010000/01 Oil Strainer Assembly A30-1011000/03 Oil Pump Assembly A3100-1012000/01 Oil Filter Assembly A3519-1013000/02 Oil Cooler Assembly J5600-1014000/02 Crankcase Ventilation Device Assembly J62QP-1028000/05 Oil Dipstick Assembly J5600-1104000/29 Fuel Supply Pipeline Assembly J61YA-1105000/05 Fuel filter assembly J5600-1111000/05 Fuel Injection Pump Assembly J0100-1112000/03 Fuel Injector Assembly J5N9A-1118000/03 Turbocharger Assembly CT-SR21RLBD4-0700/01 Catalytic Converter Assembly 631-1305000/06 Water Drain Cock Assembly JJ63GA-1306000/16 Thermostat Assembly J02YS-1307000/03 Water Pump Assembly J5J8A-1600000/02 Power Output Assembly J5J8A-3407000/07 Steering Pump Assembly J5J8A-3509000/02 Pneumatic Air Compressor Assembly J0298-3701000/13 Alternator Assembly G6098-3708000/01 Starter Assembly J0197-3823000/02 Controlling System Assembly LA1YA-3800000/01 Instrument and Sensor Assembly J5J00-3904000/01 Data Plate

1

2

3

4

5

6

7

8

9

10

Поз.	Артикул		Название детали	Кол-во	Цена
1	Q67645		Хомут d45	3;	-
2	J5600-1014049A		Вентиляционная трубка	1;	-
3	J5600-1014100A		Сепаратор воды-масла центрифужного типа	1;	-
4	Q1841016		Болт M10x16	2;	-
5	J5600-1014025		Мягкая трубка возврата масла	1;	-
6	Q67616		Хомут обруча	2;	-
7	J3312-1014005		Зажим трубы	1;	-
8	J5600-1014003A		Вентиляционная мягкая трубка	1;	-
9	Q1840816		Болт M8x16	1;	150 ₽
Болт фланцевый шестигранный АКПП F12JZ / FastGear / Q1840816T 150 ₽
10	J61YD-1014070		Сварная чать трубки возврата масла сапуна	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
