5. K7500-1014000 Crankcase Ventilation Device Assembly

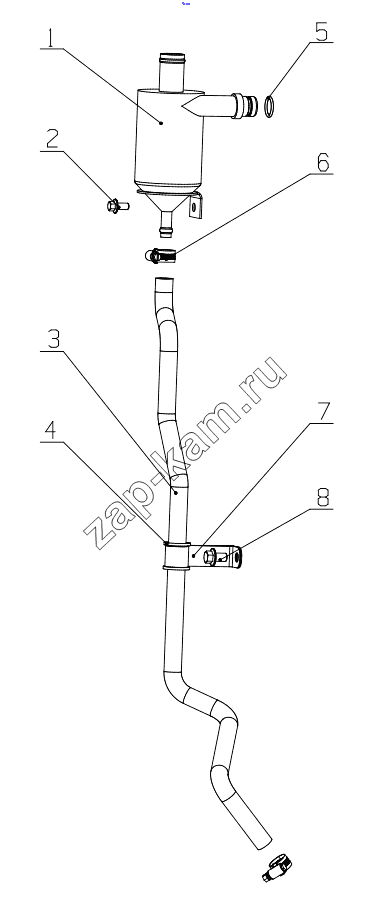

K7500-1014000 Crankcase Ventilation Device Assembly
/ Yuchai YC6K

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано K7301-1002000 Cylinder Block Assembly KC000-1002000 Cylinder Block Assembly K7301-1003000 Cylinder Head & Valve Cover Assembly K7500-1004000 Piston & Connecting Rod Assembly KC000-1004000 Piston & Connecting Rod Assembly K7301-100500 Crankshaft Vibration Damper Assembly K6100-1006000 Camshaft Assembly K6000-1007000 Valve Train Assembly K7500-1008000 Intake & Exhaust Manifold Parts K7301-1009000 Oil Sump Assembly K7500-1010000 Oil Strainer Assembly K6000-1011000 Oil Pump Assembly K7301-1012000 Oil Filter Assembly K7250-1013000 Oil Cooler Assembly K7500-1013000 Oil Cooler Assembly K7500-1014000 Crankcase Ventilation Device Assembly K7500-1028000 Oil Dipstick Assembly K7500-1104000 Supply line assembly K7600-1105000 Fuel Filter Assembly K7500-1109000 Air filter Assembly K7200-1109000 Air filter Assembly K7500-1111000 Fuel Injection Pump Assembly K6000-1112000 Fuel Injector Assembly KC100-1112000 Fuel Injector Assembly K7501-1118000 Turbocharger Assembly KYA00-1118000 Turbocharger Assembly KC100-1118000 Turbocharger Assembly K7200-1119000 Air Cooler Assembly K7500-1306000 Thermostat Assembly K7301-1306000 Thermostat Assembly K6000-1307000 Water Pump Assembly K7501-1312000 Heat Exchanger Assembly K7500-1315000 Sea water pump assembly KNB00-1315000 Sea water pump assembly K7301-1600000 Power Output Assembly K7500-3701000 Generator Assembly K7200-3701000 Alternator Assembly K7500-3708000 Starter Assembly K7500-3800000 Monitoring System Assembly K7301-3800000 Monitoring System Assembly K71D1-3800000 Monitoring System Assembly K7500-3823000 Controlling System Assembly K7500-3904000 Name Plate

1

2

3

4

5

6

7

8

Поз.	Артикул		Название детали	Кол-во
1	K87B1-1014100KS2		Centrifugal oil gas separator	1;
2	Q1840816		Болт M8x16	1;
3	K790B-1014025		Oil return soft pipe	1;
4	K6100-1014055		Rubber sleeve	1;
5	YC208-B02000F		Уплотнительное кольцо 2,65x20	1;
6	Q67622		Кольцевой хомутик 22	2;
7	K6100-101404AA		Vent pipe	1;
8	K6000-101404FA		Bracket	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
