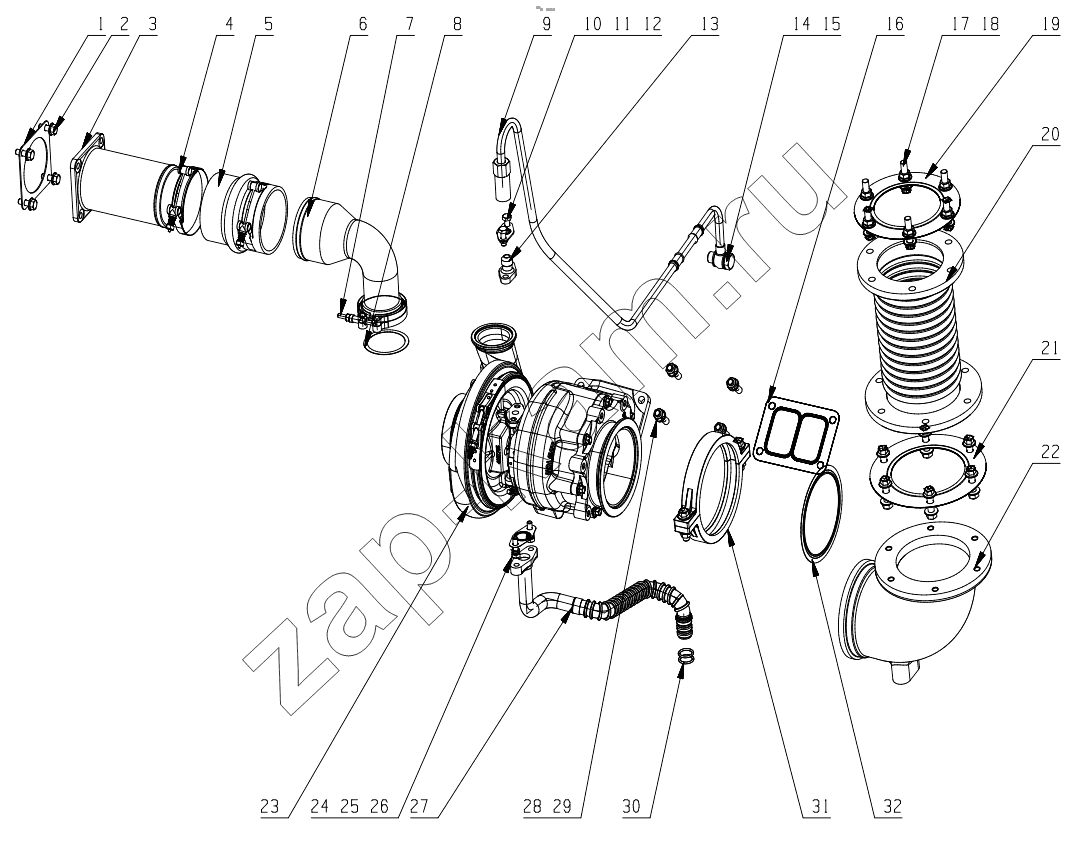

KYA00-1118000 Turbocharger Assembly
/ Yuchai YC6K
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | K7500-1118049 | Compressor outlet connecting 77 pipe gasket | 1; | - | |
| 2 | Q1840822TF6 | Bolt M8X22 | 4; | - | |
| 3 | K7500-1118022-FF | Compressor outlet connecting pipe | 1; | - | |
| 4 | Q/YC147.1-101 | Hoop 101 | 2; | - | |
| 5 | K7500-1118023 | Compressor outlet connecting pipe | 1; | - | |
| 6 | KNB00-1118021KS1 | Compressor outlet connecting pipe | 1; | - | |
| 7 | M3200-1118401A | Кольцо зажим | 1; | - | |
| 8 | K6000-1118028 | Seal copper gasket | 1; | - | |
| 9 | KN4A0-1118240KS1 | Oil inlet pipe | 1; | - | |
| 10 | G3D00-1118201 | Gasket | 1; | - | |
| 11 | Q150B0822TF2 | Болт M8x22 | 2; | - | |
| 12 | Q40308 | Шайба 8 | 2; | 30 ₽ - 60 ₽ | |
| 13 | K6B00-1118211 | Oil inlet connector | 1; | - | |
| 14 | Q/YC149-16 | Уплотнительное кольцо d16 | 2; | - | |
| 15 | Q/YC901-1C1615 | Болт M16x1,5 | 1; | - | |
| 16 | K6100-1118002A | Прокладка турбокомпрессора | 1; | - | |
| 17 | Q1841040TF6 | Bolt M10X40 | 14; | - | |
| 18 | Q32010 | Гайка M10 | 14; | - | |
| 19 | K7600-1118028 | Exhaust Gasket | 1; | - | |
| 20 | K7B01-1008208 | Exhaust connecting pipe | 1; | - | |
| 21 | K7B01-1118028 | Exhaust connecting pipe gasket | 1; | - | |
| 22 | KNB01-1118502 | Connecting pipe after turbo | 1; | - | |
| 23 | K6100-1118100-181-CCS | Turbocharger | 1; | - | |
| 24 | Q150B0825TF2 | Бoлт M8x25 | 2; | - | |
| 25 | Q40308 | Шайба 8 | 1; | 30 ₽ - 60 ₽ | |
| 26 | M3600-1118301A | Масляный шланг | 1; | - | |
| 27 | KN4A0-1118340KS1 | Oil return pipe | 1; | - | |
| 28 | K6000-1008206 | Гайка | 4; | - | |
| 29 | K6000-1118001 | Double screw | 4; | - | |
| 30 | YC208-B02000F | Уплотнительное кольцо 2,65x20 | 2; | - | |
| 31 | K7200-1118504 | Clutch | 2; | - | |
| 32 | K7200-1118003 | Gasket of turbo outlet | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
