L4198-1307000 water pump assembly
/ Yuchai YC6L260-30

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано L37LA-1002000 Cylinder block assembly L37LA-1002200 Timing housing subassembly L30KA-1003000 Cylinder head assembly L3100-1004000 Pistion and connecting rod assembly L30SA-1005000Crankshaft flywheel assembly L3000-1006000A Camshaft assembly L3000-10070000 Valve tappet system L36JA-1008100 Intake manifold subassembly L3002-1008200 Exhaust manifold subassembly L30YA-1009000 Oil sump assembly L30YA-1010000 Oil collector assembly L30YA-1011000 Oil pump assembly L3000-1012000 Oil strainer assembly L3000-1013000C Oil cooler assembly L38DA-1104000 Fuel line assembly L3100-1105000 Fuel filter assembly L3100-1111000 Fuel injection pump assembly L3100-1112000 Injector assembly L41AA-1118000 Turbocharger assembly 231-1305000 Drain water cock assembly L3002-1306000 Thermostat assembly L4198-1307000 water pump assembly L370F-1600000 Power take off assembly A3007-3407000 Steering pump assembly L3002-3509000 Air brake air compressor assembly L30LA-3701000 Generator assembly L3000-3708000 Starter assembly L3100-3904000 Nameplate G470J-1015000 Starting assistant assembly A440B-1001000 Engine suspending assembly A35D1-3800000 Gauge and sensor assembly L4198-3823000 Control system assembly

1

2

3

4

5

6

7

8

9

10

11

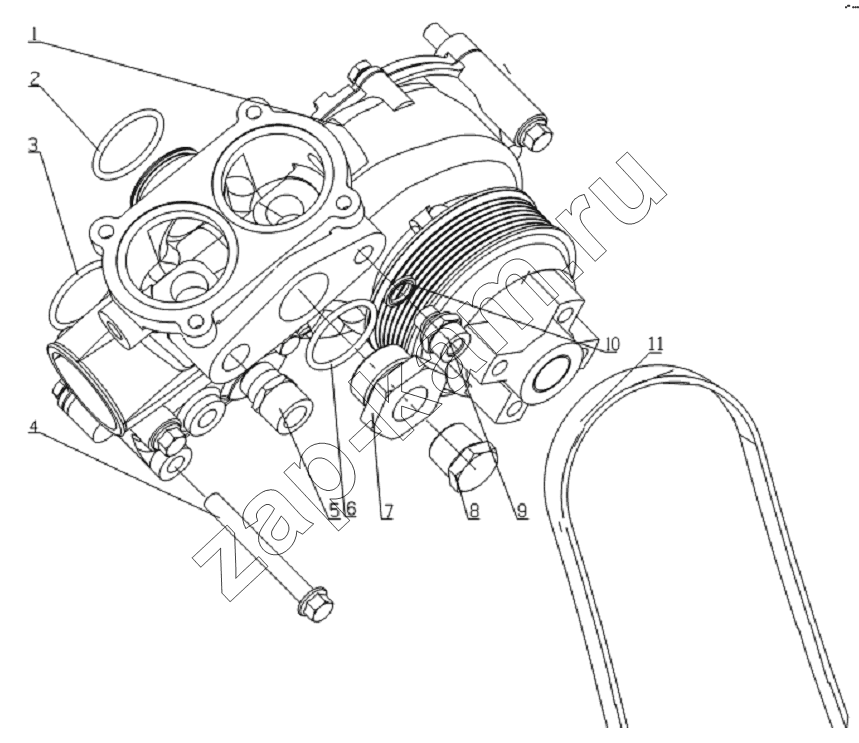

Поз.	Артикул		Название детали	Кол-во	Цена
1	L3000-1307100C		Части водной трубки	1;	-
2	YC208-C03550		Уплотнительное кольцо	1;	-
3	YC208-C04000		Кольцевая прокладка 3.55X40	1;	-
4	Q1841085TF2		Болт M10X85	5;	-
5	A3100-1303003		Муфта	1;	-
6	Q/YC149-36		Уплотнительная шайба 36	1;	-
7	G4607-1306008B		Сустав транзита	1;	-
8	Q618B06		Винтовая пробка NPT3/4	1;	-
9	L360A-3800101		Разъем датчика температуры воды	1;	-
10	Q/YC149-14		Комбинированная уплотнительная шайба 14	1;	-
11	L3002-1307042		Полимерный V-образный ремень	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
