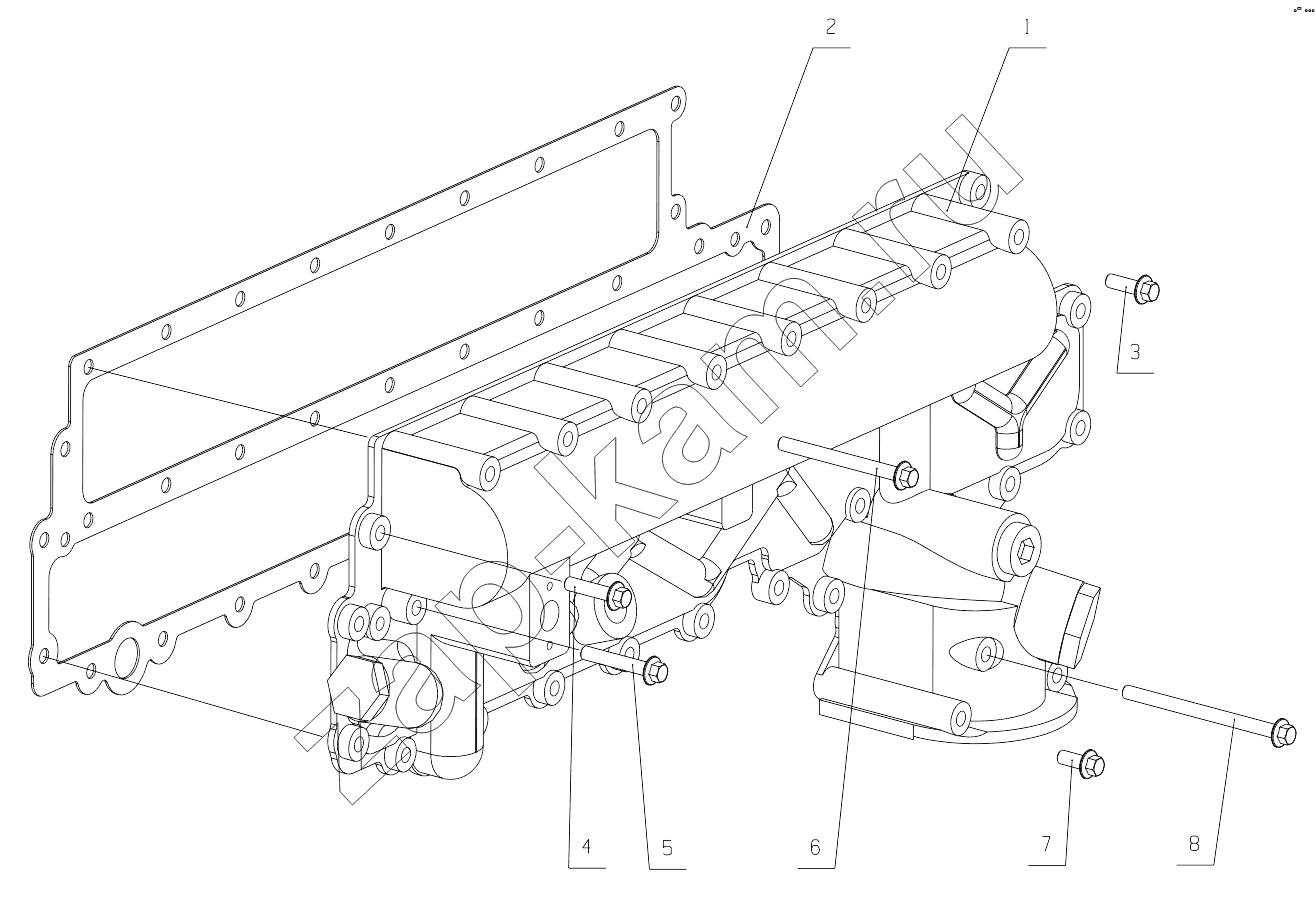

L36DB-1013000C/06 Oil Cooler Assembly
/ Yuchai YC6L280N-52

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано LND99-1001000/03 Engine Suspension LN100-1002100/10 Cylinder Block Assembly LMDYA-1002200/06 Gear Housing Part LMDYA-1003000/05 Cylinder Head & Cylinder Head Cover Assembly LNE00-1004000/04 Piston Connecting Rod Assembly LND99-1005000/01 Crankshaft Vibration Damper Assembly LN100-1006000/06 Camshaft Assembly LN100-1007000/03 Valve Train System Assembly LA2MB-1009000/05 Oil Sump Assembly LA2MB-1010000/02 Oil Collector Assembly L30YA-1011000/04 Oil Pump Assembly L3000-1012000/04 Oil Strainer Assembly L36DB-1013000C/06 Oil Cooler Assembly LM2SA-1014000A/04 Crankcase Ventilation Device Assembly LNCYA-1028000/01 Oil Dipstick Part LNDYA-1008100/03 & LND00-1008500/04 Intake Manifold Part J61SA-1008200/08 Exhaust Pipe Parts & J61SA-1008400/01 Exhaust Pipe Cover Parts LNG00-1107000/01 Gas filter assembly G2K00-1108000/01 Low Pressure Gas Filter Assembly LND97-1113000/02 Gas Supply Device Assembly LN1YA-1118000/05 Turbocharger Assembly CT-GC09RSBN5-0096/01 Catalytic converter Assembly 231-1305000/10 Water Drain Cock Assembly LMDYB-1306000/01 Thermostat Assembly LMDYA-1307000/03 Water Pump Assembly L53YB-1600000/01 Power Output Assembly LNDFA-3407000/0 Steering Pump Assembly L48YC-3509000/04 Pneumatic Air Compressor Assembly LND01-3701000/01 Generator Assembly L47YA-3708000/01 Starter Assembly LND97-3823000/03 Control System Assembly LNCYA-3705000/11 Ignition System Assembly C0000-3904000/01 Data Plateh

1

2

3

4

5

6

7

8

Поз.	Артикул		Название детали	Кол-во	Цена
1	L3100-1013100		Oil cooler	1;	-
2	L6200-1013106		Oil cooler cover gasket	1;	-
3	Q1840825		Болт M8x25	4;	-
4	Q1840835		Болт M8x35	16;	-
5	Q1840850		Болт M8x50	6;	200 ₽
Болт фланцевый шестигранный АКПП F12JZ / FastGear / Q1840850 200 ₽
6	Q1840890		Болт M8x90	8;	-
7	Q1840820		Болт M8x20	1;	150 ₽
Болт фланцевый шестигранный АКПП F12JZ / FastGear / Q1840820T 150 ₽
8	Q18408115		Болт M8x115	3;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
