L3000-1006000A/06 Camshaft Assembly
/ Yuchai YC6L310-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано LND99-1001000/03 Engine Suspension Assembly LA1KA-1002000/02 Cylinder Block Assembly L64DD-1002200/05 Timing Gear Housing Parts LC2MA-1003000/05 Cylinder Head and Cylinder Head Cover Assembly L4700-1004000/01 Piston and Connecting Rod Assembly LND99-1005000/02 Crankshaft Vibration Damper Assembly L3000-1006000A/06 Camshaft Assembly L3000-1007000/15 Valve Tappet Assembly L38DA-1008100/09 Intake Pipe and andL520C-1008500/07 Intake Connecting Pipe Component J61SA-1008200/08 Exhaust Pipe and J61SA-1008400/01 Exhaust Pipe Cover Component LA2MB-1009000/05 Oil Sump Assembly LA2MB-1010000/02 Oil Collector Assembly L30YA-1011000/04 Oil Pump Assembly L3000-1012000/05 Oil Strainer Assembly L6AL1-1013000/02 Oil Cooler Assembly L3000-1014000/10 Crankcase Ventilation Device Assembly G5XE-1015000/05 Cold start aid system Assembly LA2MB-1028000/04 Oil Dipstick Part L6200-1104000/09 Fuel Supply Pipeline Assembly J62MA-1105000/01 Fuel Filter Assembly L6400-1111000/08 Fuel Injection Pump Assembly L4700-1112000/09 Injector Assembly L36QA-1118000/02 Turbocharger Assembly CT-SR21RLBD5-0119/03 Exhaust aftertreatment assembly 231-1305000/10 Water Drain Cock Assembly LA39A-1306000/02 Thermostat Assembly L640G-1307000/05 Water Pump Assembly L53YB-1600000/01 Power Output Assembly LNDFA-3407000/01 Steering Pump Assembly LA20B-3509000/03 Air Brake Air Compressor Assembly LA20B-3701000/01 Generator Assembly L47YA-3708000/01 Starter Assembly LA20B-3823000/05 Control System Assembly LA200-3904000/02 Nameplate

1

2

3

4

5

6

7

8

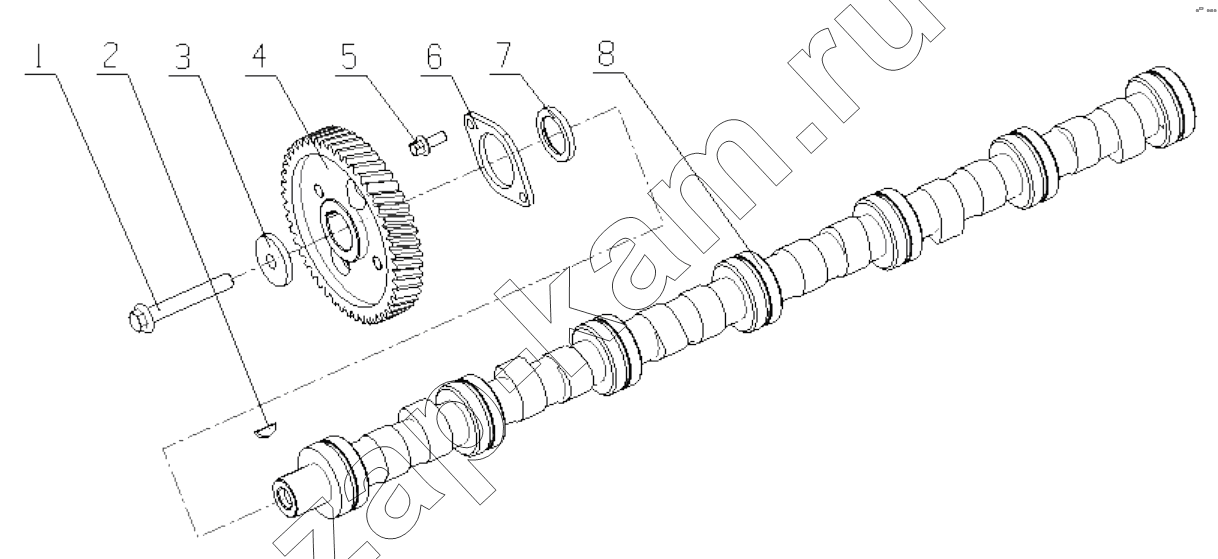

Поз.	Артикул		Название детали	Кол-во
1	L3000-1006007A		Болт распределительного вала	1;
2	Q5500519		Шпонка 5x19	1;
3	L3000-1006006A		Шайба	1;
4	J5600-1006002		Шестерня распредвала	1;
5	Q/YC207-0820		Болт M8x20	2;
6	L3000-1006003A		Опорная прокладка распредвала	1;
7	L3000-1006005A		Уплотнительное кольцо	1;
8	L3000-1006015D		Распределительный вал	1;
