LA2MB-1009000/05 Oil Sump Assembly
/ Yuchai YC6L310-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано LND99-1001000/03 Engine Suspension Assembly LA1KA-1002000/02 Cylinder Block Assembly L64DD-1002200/05 Timing Gear Housing Parts LC2MA-1003000/05 Cylinder Head and Cylinder Head Cover Assembly L4700-1004000/01 Piston and Connecting Rod Assembly LND99-1005000/02 Crankshaft Vibration Damper Assembly L3000-1006000A/06 Camshaft Assembly L3000-1007000/15 Valve Tappet Assembly L38DA-1008100/09 Intake Pipe and andL520C-1008500/07 Intake Connecting Pipe Component J61SA-1008200/08 Exhaust Pipe and J61SA-1008400/01 Exhaust Pipe Cover Component LA2MB-1009000/05 Oil Sump Assembly LA2MB-1010000/02 Oil Collector Assembly L30YA-1011000/04 Oil Pump Assembly L3000-1012000/05 Oil Strainer Assembly L6AL1-1013000/02 Oil Cooler Assembly L3000-1014000/10 Crankcase Ventilation Device Assembly G5XE-1015000/05 Cold start aid system Assembly LA2MB-1028000/04 Oil Dipstick Part L6200-1104000/09 Fuel Supply Pipeline Assembly J62MA-1105000/01 Fuel Filter Assembly L6400-1111000/08 Fuel Injection Pump Assembly L4700-1112000/09 Injector Assembly L36QA-1118000/02 Turbocharger Assembly CT-SR21RLBD5-0119/03 Exhaust aftertreatment assembly 231-1305000/10 Water Drain Cock Assembly LA39A-1306000/02 Thermostat Assembly L640G-1307000/05 Water Pump Assembly L53YB-1600000/01 Power Output Assembly LNDFA-3407000/01 Steering Pump Assembly LA20B-3509000/03 Air Brake Air Compressor Assembly LA20B-3701000/01 Generator Assembly L47YA-3708000/01 Starter Assembly LA20B-3823000/05 Control System Assembly LA200-3904000/02 Nameplate

YC51-2702

1

2

3

4

5

6

7

8

9

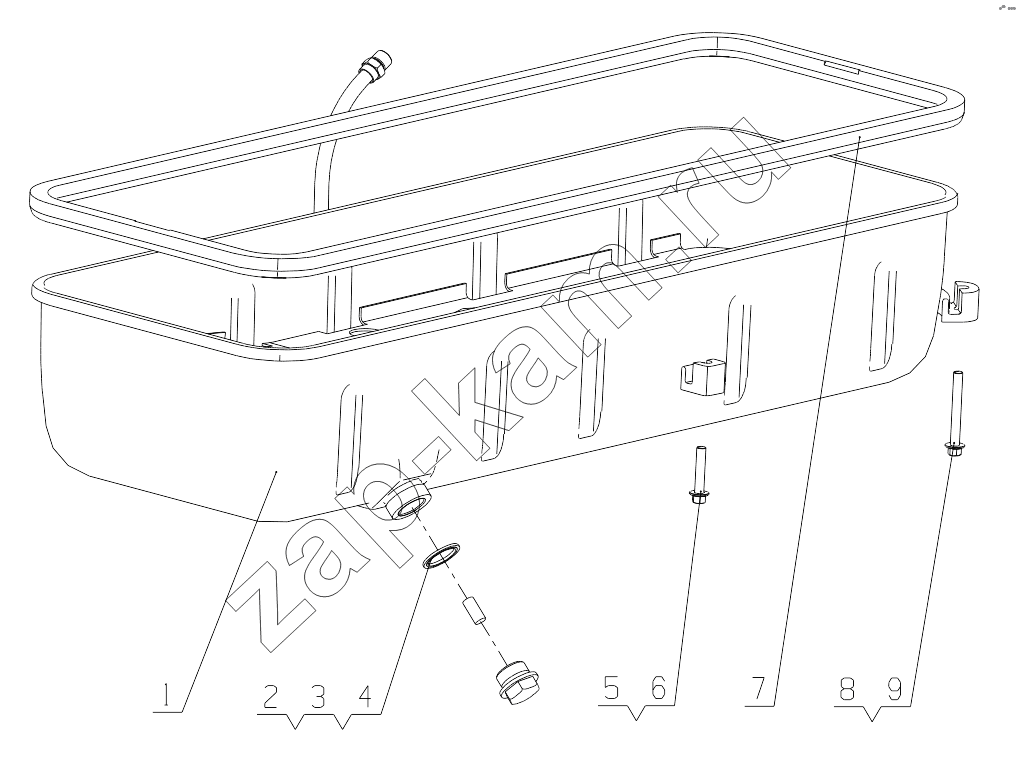

Поз.	Артикул		Название детали	Кол-во
YC51-2702	YC51-2702		Oil nameplate	1;
1	L53YC-1009040		Oil sump subassembly	1;
2	Q/YC149-27		Комбинированная уплотнительная шайба 27	1;
3	6105Q-1009032A		Магнит	1;
4	6105Q-1009031C		Сливная пробка	1;
5	Q1840840TF2		Болт M8x40	11;
6	L3200-1009305A		Oil sump hook	10;
7	L3000-1009001A		Oil sump gasket	1;
8	Q1840865TF2		Болт M8x65	2;
9	L3200-1009306A		Oil sump hook.	3;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
