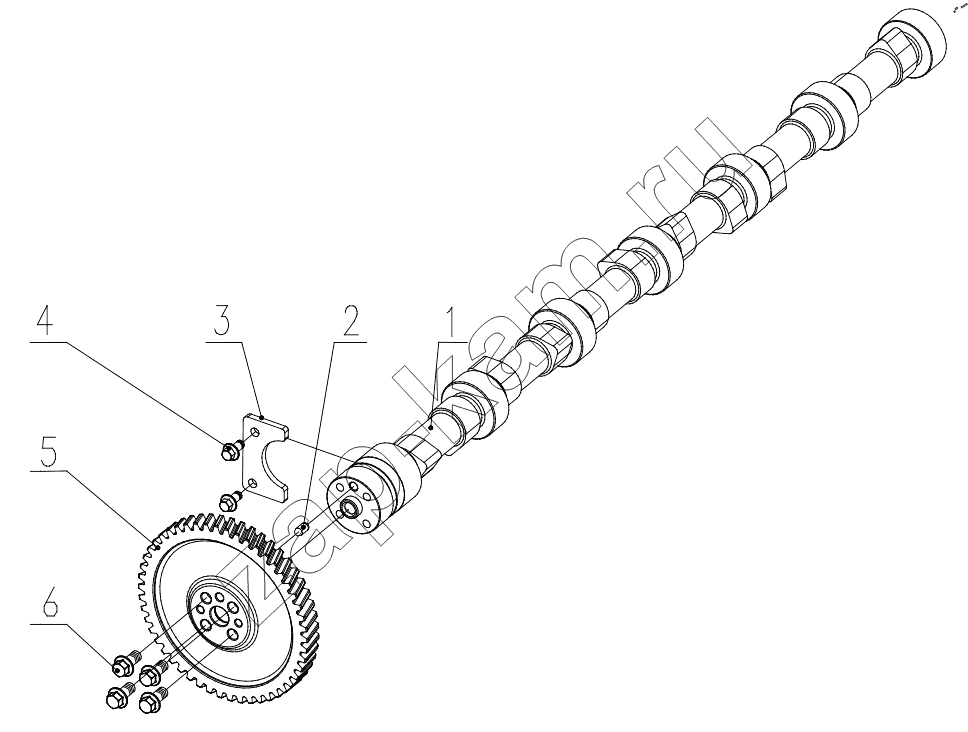

M3400-1006000/10 Camshaft assembly
/ Yuchai YC6M340-20

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано M35L1-1002000/09 Cylinder block assembly M3500-1003000/08 Cylinder head and cylinder head cover assembly M3500-1004000/08 Piston connecting rod assembly M36T1-1005000/01 Crankshaft shock absorber assembly M3400-1006000/10 Camshaft assembly M3500-1007000/05 Gas distribution mechanism assembly M35L1-1008100/15 and M35L1-1008500/06 Intake pipe parts M5101-1008200/06 and M3200-1008400/04 Exhaust pipe parts M32X2-1009000/09 and M33L1-1028000/01 Oil pan assembly M3000-1010000B/10 Oil filter collector assembly M3400-1011000/09 Oil pump assembly M32Y1-1012000/01 Oil filter assembly M3400-1013000/14 Oil cooler assembly M33L1-1014000/12 Crankcase ventilation device assembly G0801-1015000/01 Engine starting auxiliary device assembly M3 5L1-1104000/15 Supply system pipeline assembly M35L1-1105000/04 Diesel filter assembly M4100-1111000/08 fuel injection pump assembly M3699-1130000/01 Fuel injection pump accessory assembly M3500-1112000/12 Injector assembly M36L1-1115000/09 Oil breaking mechanism assembly M41L1-1118000/02 Supercharger assembly M35L1-1303000/12 Radiator water pipe and hose assembly M35L2-1306000/05 Thermostat assembly M35L2-1307000/03 Water pump assembly M38L1-1308000/03 Fan assembly M1199-1600000/01 Power output assembly M33L1-3407000/02 Steering pump assembly M41L1-3509000/01 Air brake air compressor assembly M36L1-3701000/06 Generator assembly M38T1-3708000/01 Starter M36T1-3800000/07 Instrument and sensor assembly M3300-3904000/01 Nameplate

1

2

3

4

5

6

Поз.	Артикул		Название детали	Кол-во
1	M3400-1006001B		Распределительный вал	;
2	M3400-1006013		Штифт	;
3	M3000-1006003		Упорная пластина распределительного вала	;
4	Q1840816TF2		Болт M8x16	;
5	M3400-1006002B		Распределительная шестерня распределительного вала	;
6	M3400-1006007		Болт распределительного вала	;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
