M6600-1013000/09 Oil Cooler Assembly
/ Yuchai YC6MK320N-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано MY6MA-1001000/02 Engine Suspension Assembly MY6MA-1002000/02 Cylinder Block Assembly MY6MA-1002200/02 Gear Housing Parts MY6MA-1003000/02 Cylinder Head Assembly MY100-1004000/01 Piston And Connecting Rod Assembly MY6MA-1005000/03 Crankshaft Damper Assembly M5000-1006000/04 Camshaft Assembly KJ400-1007000A/05 Valve Train System Assembly MY6MB-1008100/01 and MYB00-1008500/05 Intake Manifold Assembly and Intake Connecting Pipe Assembly MY6MA-1008200/01 and MY6MA-1008400/02 Exhaust Pipe Parts and Exhaust Pipe Cover Parts MKPGA-1009000/06 Oil sump assembly MKPGA-1010000/05 Oil Filter Assembly K2000-1011000/02 Oil Pump Assembly KJ100-1012000/04 Oil Filter Assembly M6600-1013000/09 Oil Cooler Assembly MY20B-1028000/02 Oil Dipstick Assembly MY6MA-1107000/01 Gas Low Pressure Filter Assembly MY6MA-1113000/06 Gas Supply Device Assembly MY100-1118000/01 Turbocharger Assembly MY6MA-1205000/01 Catalytic Converter Assembly MY6MA-1303000/03 Radiator Hose And Soft Hose Assembly 231-1305000/09 Water Drain Cock MY6MA-1306000/01 Thermostat Assembly MY6MA-1307000/03 Water Pump Assembly MY20A-1600000/01 Power Output Assembly A3204-3407000/06 Steering Pump Assembly MY6MA-3509000/03 Pneumatic Air Compressor MY6MA-3705000/05 Ignition System Assembly MY6MA-3701000/07 Alternator Assembly MY6MA-3708000/01 Starter Assembly MY6MA-3823000/06 Controlling System Assembly MY6MA-8104000/02 Air Condition Compressor Assembly MY6MA-3800000/02 Instrument and Sensor Assembly C0000-3904000/01 Nameplate

1

2

3

4

5

6

7

8

9

10

11

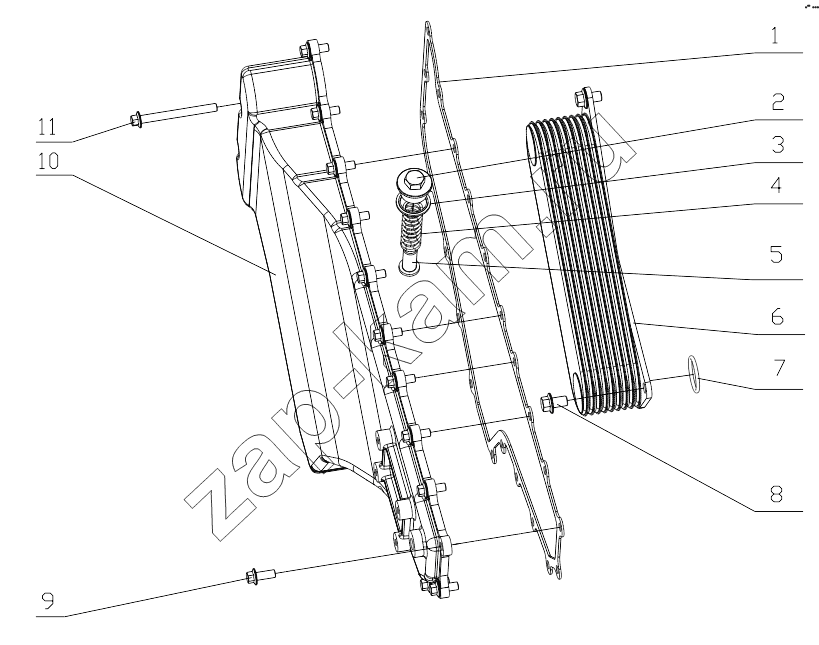

Поз.	Артикул		Название детали	Кол-во
1	M6600-1013104A		Cooler cover plate gasket	1;
2	M6600-1013110		Винтовая пробка	1;
3	Q/YC149-27		Комбинированная уплотнительная шайба 27	1;
4	M6600-1013121		Пружина клапана прохода	1;
5	M6600-1013115		Пробка клапана	1;
6	M6600-1013108A		Oil cooler core	1;
7	YC208-C03150F		Уплотнительное кольцо	2;
8	Q1841016		Болт M10x16	4;
9	Q1840828TF2		Болт M8x28	20;
10	M6600-1013105A		Cooler cover	1;
11	Q1840880		Болт M8x80	2;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
