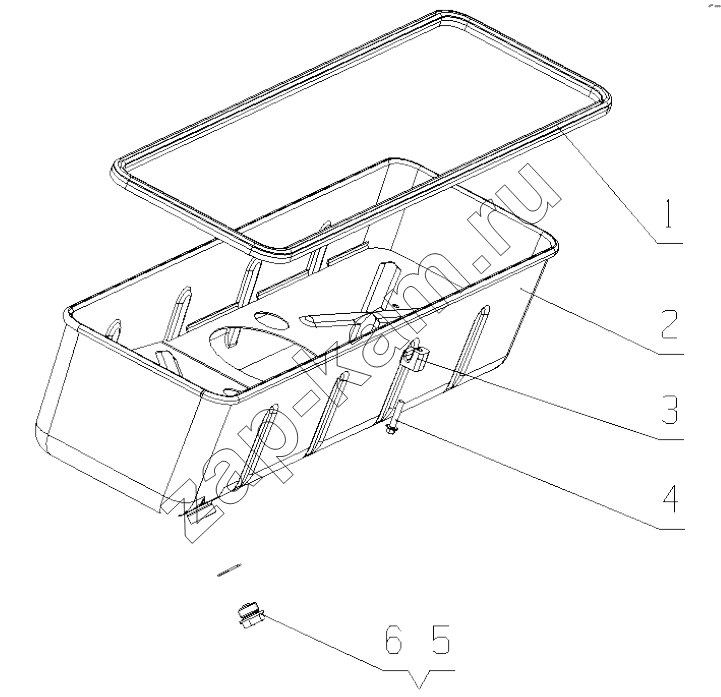

MKPGA-1009000/06 Oil sump assembly
/ Yuchai YC6MK320N-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано MY6MA-1001000/02 Engine Suspension Assembly MY6MA-1002000/02 Cylinder Block Assembly MY6MA-1002200/02 Gear Housing Parts MY6MA-1003000/02 Cylinder Head Assembly MY100-1004000/01 Piston And Connecting Rod Assembly MY6MA-1005000/03 Crankshaft Damper Assembly M5000-1006000/04 Camshaft Assembly KJ400-1007000A/05 Valve Train System Assembly MY6MB-1008100/01 and MYB00-1008500/05 Intake Manifold Assembly and Intake Connecting Pipe Assembly MY6MA-1008200/01 and MY6MA-1008400/02 Exhaust Pipe Parts and Exhaust Pipe Cover Parts MKPGA-1009000/06 Oil sump assembly MKPGA-1010000/05 Oil Filter Assembly K2000-1011000/02 Oil Pump Assembly KJ100-1012000/04 Oil Filter Assembly M6600-1013000/09 Oil Cooler Assembly MY20B-1028000/02 Oil Dipstick Assembly MY6MA-1107000/01 Gas Low Pressure Filter Assembly MY6MA-1113000/06 Gas Supply Device Assembly MY100-1118000/01 Turbocharger Assembly MY6MA-1205000/01 Catalytic Converter Assembly MY6MA-1303000/03 Radiator Hose And Soft Hose Assembly 231-1305000/09 Water Drain Cock MY6MA-1306000/01 Thermostat Assembly MY6MA-1307000/03 Water Pump Assembly MY20A-1600000/01 Power Output Assembly A3204-3407000/06 Steering Pump Assembly MY6MA-3509000/03 Pneumatic Air Compressor MY6MA-3705000/05 Ignition System Assembly MY6MA-3701000/07 Alternator Assembly MY6MA-3708000/01 Starter Assembly MY6MA-3823000/06 Controlling System Assembly MY6MA-8104000/02 Air Condition Compressor Assembly MY6MA-3800000/02 Instrument and Sensor Assembly C0000-3904000/01 Nameplate

1

2

3

4

5

6

Поз.	Артикул		Название детали	Кол-во	Цена
1	M3400-1009001C		Oil sump gasket	1;	-
2	MKPQA-1009040B		Oil sump component	1;	-
3	M1000-1009002B		Oil sump hold down	14;	-
4	Q1840840TF2		Болт M8x40	14;	-
5	Q/YC149-27		Комбинированная уплотнительная шайба 27	1;	-
6	6105Q-1009030		Сливная пробка в сборе	1;	-
