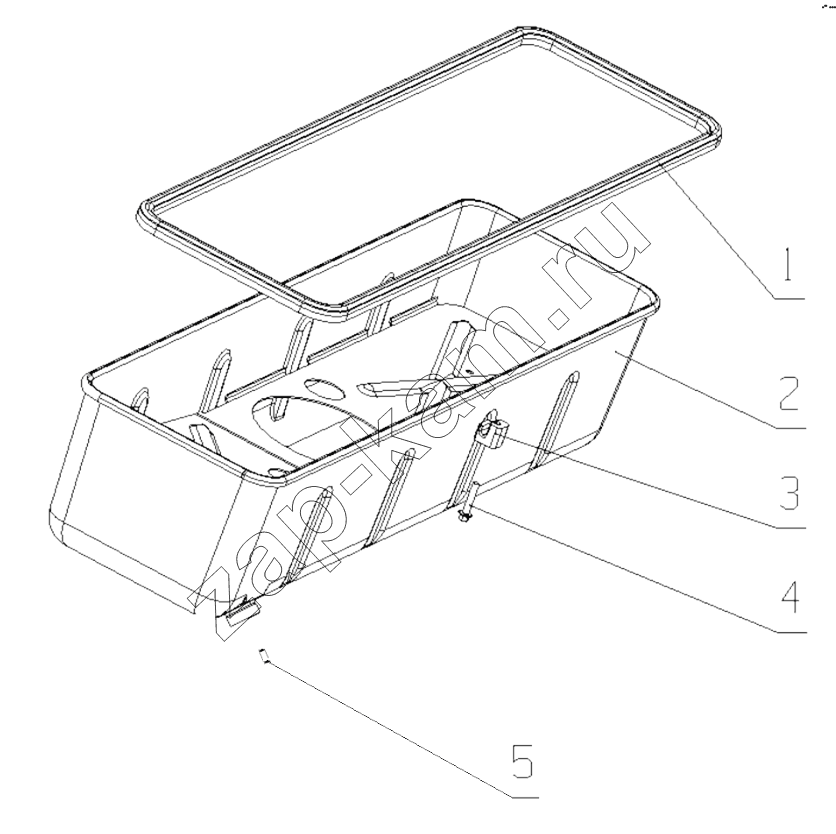

MKPGA-1009000/09 0il sump assembly
/ Yuchai YC6MK340N-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано ME30N-1001000/01 Engine Suspension Assembly MN70A-1002000/01 Cylinder Block Assembly MN70A-1002200/01 Gear Housing Parts MY4YA-1003000/02 Cylinder Head Assembly MY100-1004000/07 Piston And Connecting Rod Assembly MN70A-1005000/01 Crankshaft Damper Assembly M5000-1006000/04 Camshaft Assembly KJ400-1007000A/06 Valve Train System Assembly MY200-1008100/04 and MYB00-1008500/06 Intake Manifold Assembly and Intake Connecting Pipe Assembly Y6MA-1008200/04 and MY6MA -1008400/04 Exhaust Pipe and Exhaust Pipe Cover Parts MKPGA-1009000/09 0il sump assembly MKPGA-1010000/05 Oil Filter Assembly MKB00-1011000/05 Pump Assembly MYB00-1012000/01 Oil Filter Assembly MYB00-1013000/01 Cooler Assembly MY20B-1028000/03 0il Dipstick Assembly MY100-1118900/06 Exhaust gas bypass control valve parts CT-GC09RSBN5-0029 Exhaust aftertreatment assembly MN100-1107000/01 Gas Low Pressure Filter Assembly G2K00-1108000/01 Gas High Pressure Filter Assembly MN7A-1113000/01 Gas Supply Device Assembly MN70A-1118000/01 Turbocharger Assembly MN70A-1303000/02 Radiator Hose And Soft Hose Assembly 231-1305000/10 Water Drain Cock Assembly MY6MA-1306000/04 Thermostat Assembly MY6MA-1307000/05 Water Pump Assembly MKPGA-1600000/03 Power Output Assembly M1305-3407000/04 Steering Pump Assembly MN70A-3509000/01 Pneumatic Air Compressor MY100-3705000/08 Ignition System Assembly MS492-3701000/04 Alternator Assembly L47YA-3708000/01 Starter Assembly MN70A-3823000/01 Controlling System Assembly MN70A-3800000/01 Instrument and Sensor Assembly C0000-3904000/01 Name-plate

1

2

3

4

5

Поз.	Артикул		Название детали	Кол-во	Цена
1	М3400-1009001С		Oil sump gasket	1;	-
2	MKPQA-1009040B		Oil sump component	1;	-
3	М1000-1009305		Oil sump hold down	14;	-
4	Q1840840TF2		Болт M8x40	14;	-
5	Q/YC149-27		Комбинированная уплотнительная шайба 27	1;	-
6	6105Q-1009032A		Магнит	1;	-
