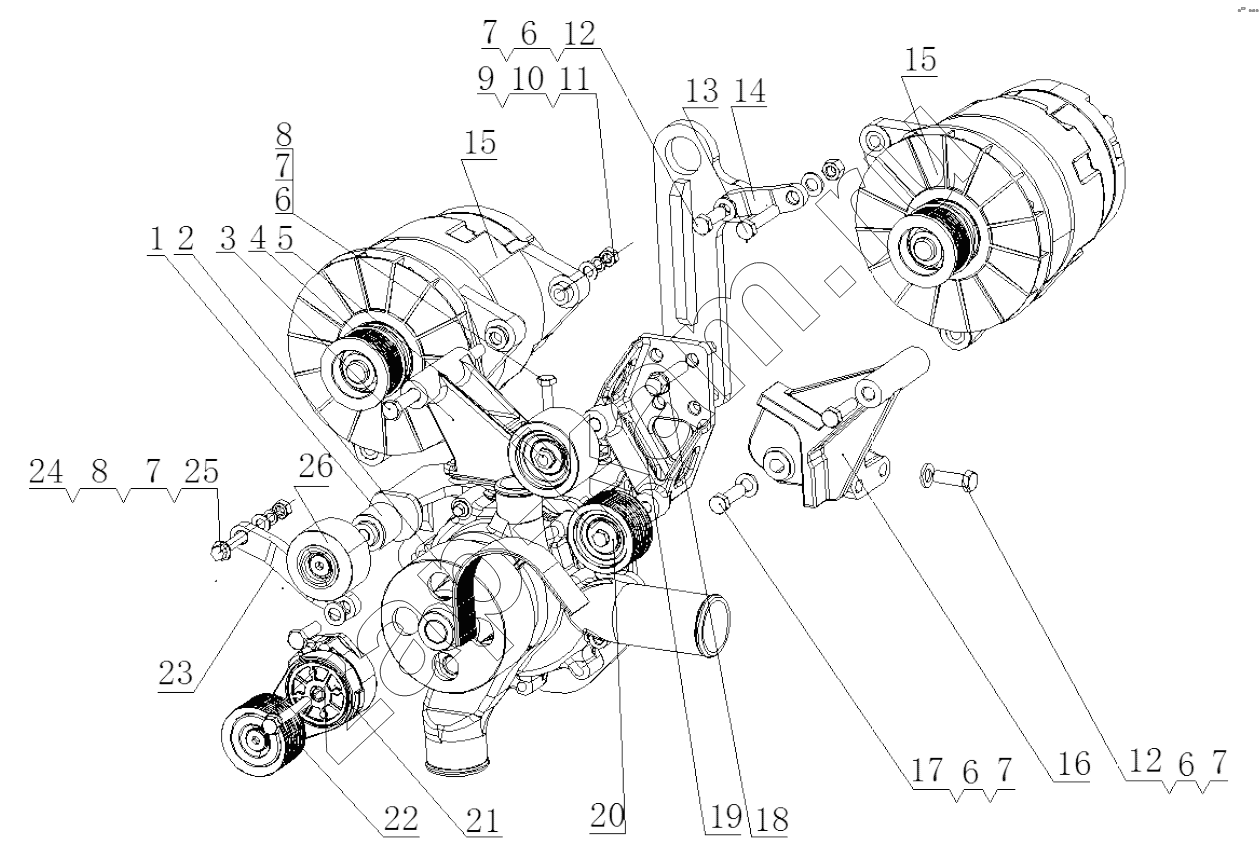

MS492-3701000/04 Alternator Assembly
/ Yuchai YC6MK340N-50
1
2
3
4
5
6
6
6
6
7
7
7
7
7
8
8
9
10
11
12
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | М6600-1002153А | Cushion block | 1; | - | |
| 2 | YC80-10PK-2950BG | Ribbed belt | 1; | - | |
| 3 | Q150B12180 | Винтовая пробка | 2; | - | |
| 4 | MS4LA-3701002A | Alternator bracket | 1; | - | |
| 5 | MS40D-1002460 | Poly V-belt idler subassembly | 1; | - | |
| 6 | Q150B1030TF2 | Болт M10x30 | 4; | - | |
| 7 | Q40310 | Шайба 10 | 5; | - | |
| 8 | Q40110 | Шайба 10 | 5; | - | |
| 9 | Q40312 | Шайба 12 | 9; | - | |
| 10 | Q40112 | Шайба 12 | 7; | - | |
| 11 | Q340B12 | Гайка М12 | 3; | - | |
| 12 | Q150B1235TF2 | Болт M12x35 | 5; | - | |
| 13 | Q150B1255TF2 | Болт M12x55 | 1; | - | |
| 14 | MY6MA-3701052 | Adjusting plate | 1; | - | |
| 15 | MKPGA-3701100 | Alternator | 2; | - | |
| 16 | MS4QA-3701002 | Alternator bracket | 1; | - | |
| 17 | Q150B1240TF2 | Болт M12x40 | 1; | - | |
| 18 | Q1841250TF2 | Болт М12х50 | 4; | - | |
| 19 | MY6MA-1002464 | Idler bracket | 1; | - | |
| 20 | L520L-1002460 | Poly V-belt idler subassembly | 1; | - | |
| 21 | M1100-1002450A | Tensioning wheel subassembly | 1; | - | |
| 22 | Q1841070TF2 | Болт M10x70 | 1; | - | |
| 23 | MY699-3701052 | Adjusting plate | 1; | - | |
| 24 | Q1841055TF2 | Болт M10x55 | 1; | - | |
| 25 | Q340B10 | Гайка М10 | 1; | 100 ₽ | |
| 26 | М6600-1002210 | Poly V-belt idler subassembly | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
