MYB00-1013000/01 Cooler Assembly
/ Yuchai YC6MK340N-50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано ME30N-1001000/01 Engine Suspension Assembly MN70A-1002000/01 Cylinder Block Assembly MN70A-1002200/01 Gear Housing Parts MY4YA-1003000/02 Cylinder Head Assembly MY100-1004000/07 Piston And Connecting Rod Assembly MN70A-1005000/01 Crankshaft Damper Assembly M5000-1006000/04 Camshaft Assembly KJ400-1007000A/06 Valve Train System Assembly MY200-1008100/04 and MYB00-1008500/06 Intake Manifold Assembly and Intake Connecting Pipe Assembly Y6MA-1008200/04 and MY6MA -1008400/04 Exhaust Pipe and Exhaust Pipe Cover Parts MKPGA-1009000/09 0il sump assembly MKPGA-1010000/05 Oil Filter Assembly MKB00-1011000/05 Pump Assembly MYB00-1012000/01 Oil Filter Assembly MYB00-1013000/01 Cooler Assembly MY20B-1028000/03 0il Dipstick Assembly MY100-1118900/06 Exhaust gas bypass control valve parts CT-GC09RSBN5-0029 Exhaust aftertreatment assembly MN100-1107000/01 Gas Low Pressure Filter Assembly G2K00-1108000/01 Gas High Pressure Filter Assembly MN7A-1113000/01 Gas Supply Device Assembly MN70A-1118000/01 Turbocharger Assembly MN70A-1303000/02 Radiator Hose And Soft Hose Assembly 231-1305000/10 Water Drain Cock Assembly MY6MA-1306000/04 Thermostat Assembly MY6MA-1307000/05 Water Pump Assembly MKPGA-1600000/03 Power Output Assembly M1305-3407000/04 Steering Pump Assembly MN70A-3509000/01 Pneumatic Air Compressor MY100-3705000/08 Ignition System Assembly MS492-3701000/04 Alternator Assembly L47YA-3708000/01 Starter Assembly MN70A-3823000/01 Controlling System Assembly MN70A-3800000/01 Instrument and Sensor Assembly C0000-3904000/01 Name-plate

1

2

3

4

5

6

7

8

9

10

11

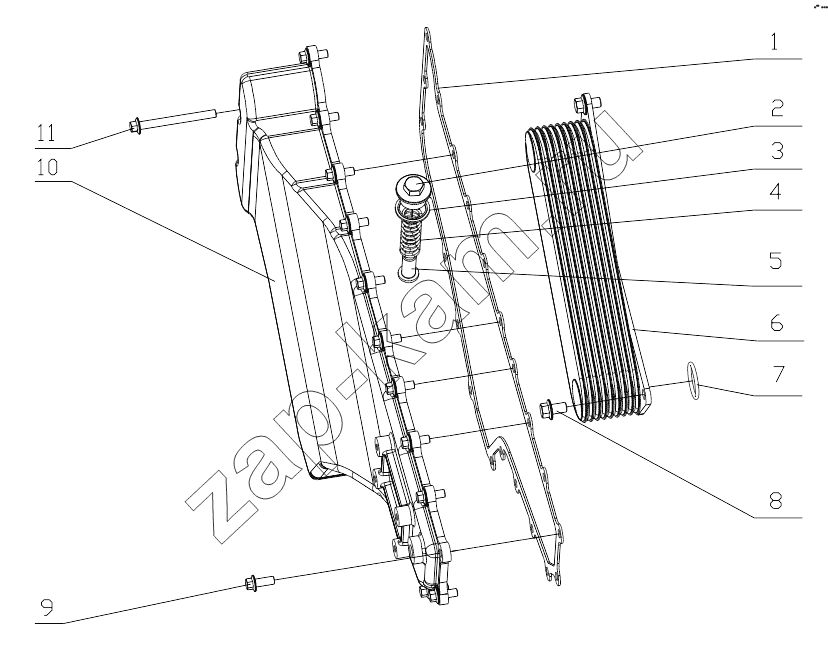

Поз.	Артикул		Название детали	Кол-во
1	МКВ00-1013104		Cooler cover plate gasket	1;
2	М6600-1013110		Screw plug	1;
3	Q/YC149-27		Комбинированная уплотнительная шайба 27	1;
4	М6600-1013121		Bypass valve spring	1;
5	М6600-1013115		Valve plug	1;
6	М6600-1013108А		Oil cooler core	1;
7	YC208-C03150F		Уплотнительное кольцо	2;
8	Q1841016		Болт M10x16	4;
9	Q1840828		Bolt	20;
10	М6600-1013105А		Cooler cover	1;
11	Q1840880		Болт M8x80	2;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
