MY301-1306000/02 Thermostat Assembly
/ Yuchai YC6MK340N-50 (MN301-C)

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано MYB00-1002000/05 Cylinder Block Assembly MYB00-1002200/04 Gear Housing Parts MY3E2-1003000/05 Cylinder Head Assembly MY100-1004000/06 Piston And Connecting Rod Assembly MY301-1005000/02 Crankshaft Damper Assembly M5000-1006000/05 Camshaft Assembly KJ400-1007000A/06 Valve Train System Assembly MY301-1008100/03 & MYB00-1008500/06 Intake Manifold Assembly & Intake Connecting Pipe Assembly KJ300-1008200/08 & KJ100-1008400/05 Exhaust Pipe & Exhaust Pipe Cover Parts M2AYA-1009000/04 Oil sump assembly M63QA-1010000/06 Oil Filter Assembly K2000-1011000/02 Oil Pump Assembly MYB00-1012000/01 Oil Filter Assembly MY2S3-1013000/01 Oil Cooler Assembly MYAYA-1028000/02 Oil Dipstick Assembly MY901-1107000/01 Gas Low Pressure Filter Assembly G4R0A-1107000/01 Gas Low Pressure Filter Assembly MY501-1113000/05 Gas Supply Device Assembly MY301-1118000/01 Turbocharger Assembly MY499-1118900/01 Exhaust gas bypass control valve parts MY3Q1-1205000/01 Catalytic Converter Assembly MM901-1303000/03 Radiator Hose And Soft Hose Assembly MY301-1306000/02 Thermostat Assembly MM100-1307000/01 Water Pump Assembly M38J1-1308000/01 Fan assembly MM301-1600000/02 Power Output Assembly MY301-3407000/02 Steering Pump Assembly MY301-3509000/04 Pneumatic Air Compressor MY100-3705000/08 Ignition System Assembly K2000-3701000/04 Alternator Assembly M11D1-3708000-R/01 Starter Assembly MM901-3800000/01 Instrument & Sensor Assembly MN301-3823000/03 Controlling System Assembly C0000-3904000/01 Nameplate

1

2

3

4

5

6

7

8

9

10

11

12

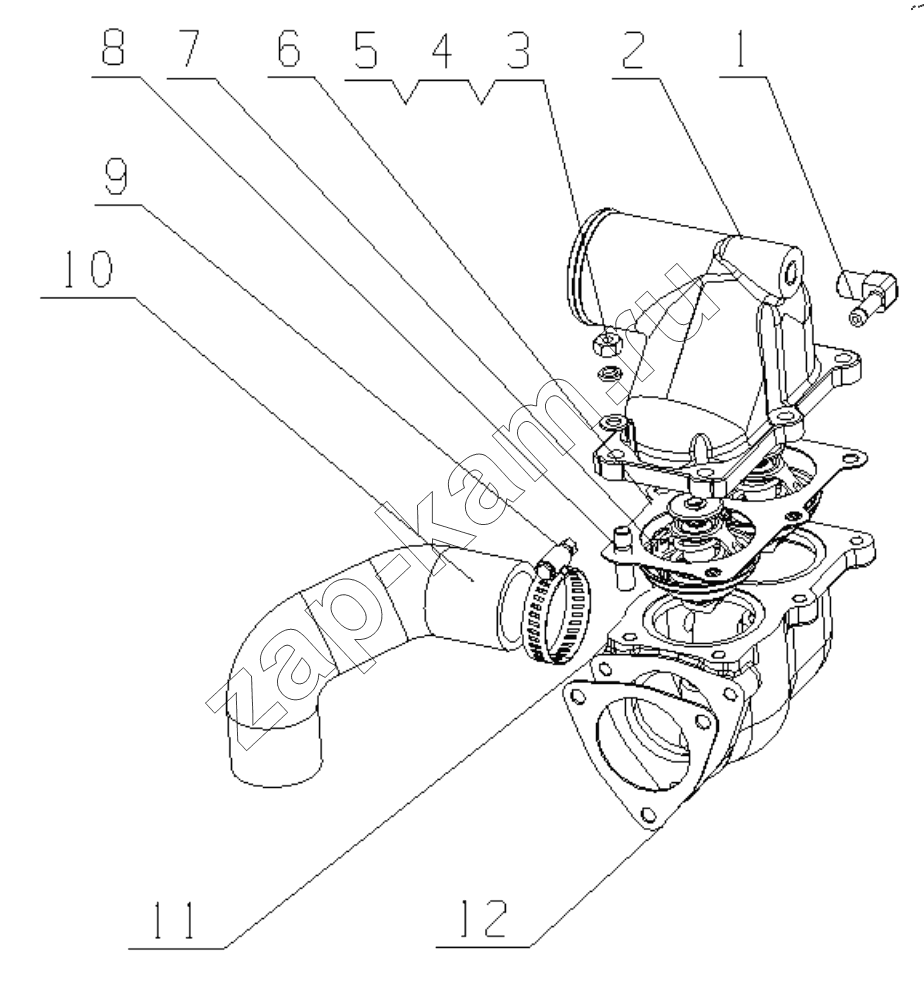

Поз.	Артикул		Название детали	Кол-во
1	675A-1303019A		Соединение труб прокачки	1;
2	M38D1-1306001A		Thermostat cover	1;
3	Q40308		Шайба 8	9;
4	Q340B08		Гайка М8	9;
5	Q40008		Шайба 8	9;
6	M3400-1306002		Прокладка крышки термостата	1;
7	530-1306004		Thermostat	2;
8	Q1200825		Шпилька М8х25	9;
9	Q67650		Хомут d50	2;
10	MY301-1306005		Water return hose	1;
11	M3400-1306003E		Сиденье термостата	1;
12	M3400-1306006A		Прокладка сиденья термостата	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
