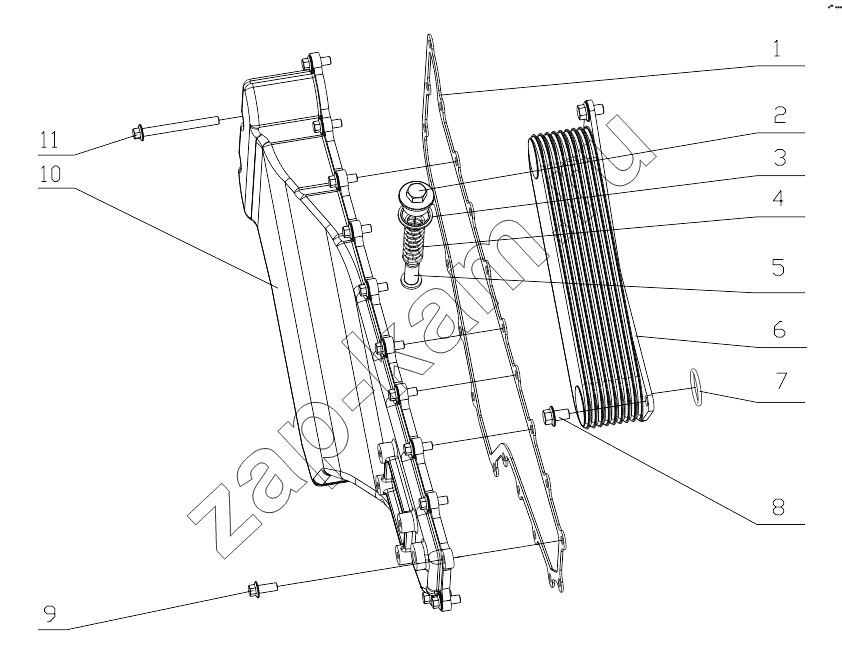

M6600-1013000/09 Oil Cooler Assembly
/ Yuchai YC6MK375N-40

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4A125Z-T21 (2016) YC4B105Z-T20 (2016) YC4B90-T10 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4D85Z-T20 (2014) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E140-33 YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J190N-40 (J4B0C-C) (2013) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK300N-50 (MN70A-C) (2015) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK340N-50 (MN301-C) (2014) YC6MK375N-40 (2014) YCD4F YCD4T32

Схема > Не выбрано ME30N-1001000/01 Engine Suspension Assembly MY6MA-1002000/04 Cylinder Block Assembly MY6MA-1002200/05 Gear Housing Parts MY50A-1003000/03 Cylinder Head Assembly MY100-1004000/05 Piston And Connecting Rod Assembly MY3YA-1005000/03 Crankshaft Damper Assembly M5000-1006000/04 Camshaft Assembly MY9SA-1007000/02 Valve Train System Assembly MY9SA-1008100/04 and MYB00-1008500/05 Intake Manifold Assembly and Intake Connecting Pipe Assembly MY100-1008200/03 and MY100-1008400/01 Exhaust Pipe Parts and Exhaust Pipe Cover Parts MKPGA-1009000/08 Oil sump assembly MKPGA-1010000/05 Oil Filter Assembly K2000-1011000/02 Oil Pump Assembly KJ100-1012000/04 Oil Filter Assembly M6600-1013000/09 Oil Cooler Assembly M2AYA-1028000/04 Oil Dipstick Assembly MY3QP-1113000/01 Gas Supply Device Assembly MY2QP-1118000/06 Turbocharger Assembly MY4YA-1205000/01 Catalytic Converter Assembly MYB00-1107000/05 Gas Filter Assembly MYE00-1107000/03 Low Pressure Gas Filter Assembly MY100-1303000/03 Radiator Hose And Soft Hose Assembly 231-1305000/09 Water Drain Cock M60QB-1306000/08 Thermostat Assembly MY6MA-1307000/05 Water Pump Assembly MY2QP-1600000/01 Power Output Assembly MKCQP-3407000/02 Steering Pump Assembly M600A-3509000/02 Pneumatic Air Compressor MY100-3705000/08 Ignition System Assembly MY6MA-3701000/08 Alternator Assembly L47YA-3708000/01 Starter Assembly MYBQP-3823000/01 Controlling System Assembly MKB00-3904000/01 Nameplate

1

2

3

4

5

6

7

8

9

10

11

Поз.	Артикул		Название детали	Кол-во	Цена
1	M6600-1013104A		Cooler cover plate gasket	1;	-
2	M6600-1013110		Винтовая пробка	1;	-
3	Q/YC149-27		Комбинированная уплотнительная шайба 27	1;	-
4	M6600-1013121		Пружина клапана прохода	1;	-
5	M6600-1013115		Пробка клапана	1;	-
6	M6600-1013108A		Oil cooler core	1;	-
7	YC208-C03150F		Уплотнительное кольцо	2;	-
8	Q1841016		Болт M10x16	4;	-
9	Q1840828TF2		Болт M8x28	20;	-
10	M6600-1013105A		Cooler cover	1;	-
11	Q1840880		Болт M8x80	2;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
