CONNPLATE

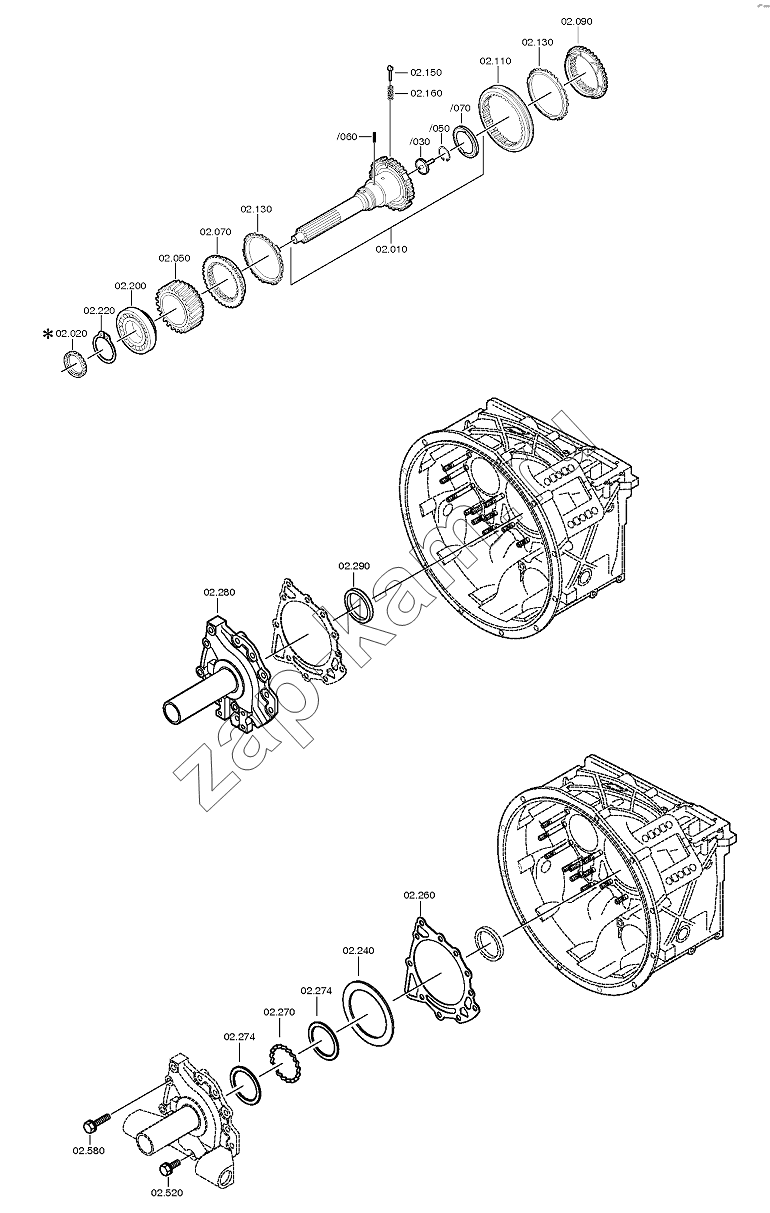

/ ZF КПП ZF 16S151 (вар.)
/3.gif)
10
/30
/50
/70
50
70
90
110
130
130
150
160
200
220
241
260
260
270
274
274
280
290
290
520
520
580
580
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 10 | 1315.202.037 | Input shaft | 1; | 27 310 ₽ | |
| /30 | 1354.302.019 | Pipe | 1; | 300 ₽ | |
| /50 | 0630.502.027 | Retaining ring | 1; | - | |
| /70 | 0750.101.179 | Oil dam | 1; | - | |
| 50 | 1315.302.158 | Helical gear | 1; | - | |
| 70 | 1312.304.027 | Корпус муфты синхронизатора | 1; | - | |
| 90 | 1312.304.027 | Корпус муфты синхронизатора | 1; | - | |
| 110 | 1310.304.202 | Муфта скользящая | 1; | 5 750 ₽ | |
| 130 | 1297.304.484 | Кольцо блокирующее синхронизатора делит. | 2; | - | |
| 150 | 1297.304.436 | PRESSURE PIECE | 3; | 230 ₽ | |
| 160 | 0732.040.409 | COMPRSPRING | 3; | по запросу | |
| 200 | 0750.117.732 | Tarollbearing | 1; | - | |
| 220 | 0730.501.598 | Retaining ring | 1; | - | |
| 241 | 2050.309.094 | Shim | 1; | - | |
| 242 | 0730.007.489 | Shim | 1; | - | |
| 243 | 0730.007.488 | Shim | 1; | - | |
| 244 | 0730.007.487 | Shim | 1; | - | |
| 245 | 0730.007.486 | Shim | 1; | - | |
| 246 | 0730.007.485 | Shim | 1; | - | |
| 247 | 0730.007.484 | Shim | 1; | - | |
| 248 | 0730.007.483 | Shim | 1; | - | |
| 249 | 0730.007.482 | Shim | 1; | - | |
| 250 | 0730.007.481 | Shim | 1; | - | |
| 251 | 0730.007.480 | Shim | 1; | - | |
| 252 | 0730.007.479 | Shim | 1; | - | |
| 253 | 0730.007.136 | Shim | 1; | - | |
| 254 | 0730.007.135 | Shim | 1; | - | |
| 255 | 0730.007.134 | Shim | 1; | - | |
| 256 | 0730.007.133 | Shim | 1; | - | |
| 257 | 0730.007.132 | Shim | 1; | - | |
| 258 | 0730.007.131 | Shim | 1; | - | |
| 259 | 0730.007.130 | Shim | 1; | - | |
| 260 | 0730.007.129 | Shim | 1; | - | |
| 261 | 2050.309.034 | Shim | 1; | - | |
| 262 | 0730.007.128 | Shim | 1; | - | |
| 263 | 0730.007.127 | Shim | 1; | - | |
| 264 | 0730.007.126 | Shim | 1; | - | |
| 265 | 2050.309.065 | Shim | 1; | - | |
| 266 | 0730.005.749 | Shim | 1; | - | |
| 267 | 0730.005.748 | Shim | 1; | - | |
| 260 | 0501.314.587 | Gasket | 1; | - | |
| 270 | 1315.302.040 | Spacer ring | 1; | - | |
| 274 | 0730.150.766 | Washer | 2; | - | |
| 280 | 1315.302.136 | Connplate | 1; | - | |
| 290 | 0734.310.387 | Shaft seal | 1; | - | |
| 520 | 0636.015.592 | Hexagon bolt | 8; | - | |
| 580 | 0636.015.593 | Hexagon bolt | 3; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
