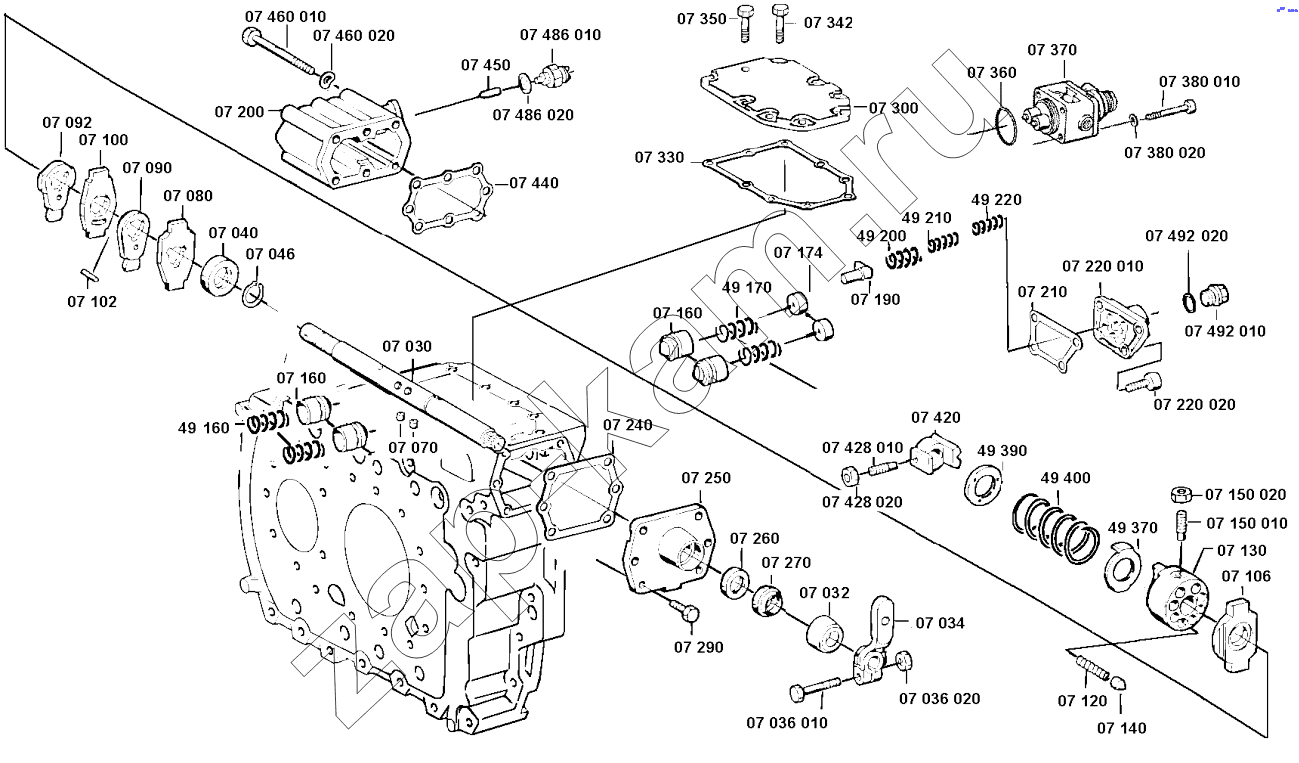

GEARSHIFT SHAFT
/ ZF КПП ZF 16S1650
330
380.010
370
370
360
350
342
380.020
300
290
290
270
260
250
240
220.020
420
428.010
428.020
440
450
460.010
460.020
486.010
486.020
492.010
492.020
040
100
092
090
080
070
046
102
040
040
036.010
034
032
030
106
120
130
140
150.010
150.020
160
160
174
190
200
200
210
210
220
220.010
HEXAGONSCREW
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 330 | 1313307003 | Gasket | 1; | - | |
| 380.010 | 0636101664 | Cap screw | 4; | - | |
| 380 | CYLINDRICALSCREW | Cylindrical screw | 4; | - | |
| 370 | 6038202003 | Cut -off valve | 1; | - | |
| 360 | 0634314021 | O-ring | 1; | - | |
| 350.010 | 0636015084 | Hexagon screw | 1; | - | |
| 350 | HEXAGONSCREW | Hexagon screw | 1; | - | |
| 342.010 | 0636015073 | Hexagon screw | 8; | - | |
| 342 | HEXAGONSCREW | Hexagon screw | 8; | - | |
| 380.020 | 0630302090 | Spring washer | 4; | - | |
| 300 | 0091307500 | Cover | 1; | - | |
| 290 | 0636015084 | Hexagon screw | 6; | - | |
| 290 | HEXAGONSCREW | Hexagon screw | 6; | - | |
| 270 | 0634307367 | Маслоотражатель | 1; | - | |
| 260 | 0634300302 | Shaft seal | 1; | - | |
| 250 | 1295307434 | Cover | 1; | - | |
| 240 | 1313307020 | Gasket | 1; | - | |
| 220.020 | 0636015084 | Hexagon screw | 4; | - | |
| 420 | 0091307219 | Stop part | 1; | - | |
| 428 | THREADED | Threaded | ; | - | |
| 428.010 | 0501398398 | Threaded bolt | 1; | - | |
| 428.020 | 0637002039 | Hexagon nut | 1; | - | |
| 440 | 1313307004 | Gasket | 1; | - | |
| 450 | 0731208056 | Pin | 1; | - | |
| 460 | HEXAGONSCREW | Hexagon screw | ; | - | |
| 460.010 | 0636010121 | Hexagon screw | 6; | - | |
| 460.020 | 0630302090 | Spring washer | 6; | - | |
| 486 | SWITCH | SWITCH | ; | - | |
| 486.010 | 0501210059 | Выключатель | 1; | - | |
| 486.020 | 0634801062 | Уплотнительное кольцо | 1; | - | |
| 492 | SCREWPLUG | SCREW PLUG | ; | - | |
| 492.010 | 0636302021 | Пробка с резьбой | 1; | - | |
| 492.020 | 0634801062 | Уплотнительное кольцо | 1; | - | |
| 040 | 1295307250 | Washer | 1; | - | |
| 100 | 1295307176 | Skid piece | 1; | - | |
| 092 | 1295307175 | Driver | 1; | - | |
| 090 | 1295307178 | Driver | 1; | - | |
| 080.020 | 1295307156 | Lock | 1; | - | |
| 080.010 | 1295307585 | Lock | 1; | - | |
| 080 | LOCK | Lock | 1; | - | |
| 070 | 0735470007 | Roller | 6; | - | |
| 046 | 0630532205 | Snap ring | 1; | - | |
| 102 | 0091380071 | Cylindrical pin | 1; | - | |
| 040 | 1295307379 | Washer | 1; | - | |
| 040 | WASHER | WASHER | 1; | - | |
| 036.030 | 0637006120 | Hexagon nut | 1; | - | |
| 036.010 | 0636015469 | Hexagon screw | 1; | - | |
| 036 | HEXAGONSCREW | Hexagon screw | 1; | - | |
| 034 | 1307307006 | Gear shift lever | 1; | - | |
| 032 | 1238307411 | Protecting cap | 1; | - | |
| 030 | 0091307304 | Gear shift shaft | 1; | - | |
| 106 | 0091307197 | Skid piece | 1; | - | |
| 120 | 0732040736 | Нажимная пружина | 8; | - | |
| 130 | 1295307409 | Stop part | 1; | - | |
| 140 | 1295307243 | Stop bolt | 8; | - | |
| 150 | THREADEDBOLT | Threaded bolt | 1; | - | |
| 150.010 | 0501398399 | Threaded bolt | 1; | - | |
| 150.020 | 0637002039 | Hexagon nut | 1; | - | |
| 160 | 0750115335 | Ball roller | 4; | - | |
| 174 | 0730062448 | Bush | 2; | - | |
| 190 | 0091307160 | Bolt | 1; | - | |
| 200 | 0091307153 | Cover | 1; | - | |
| 210 | 1313307002 | Gasket | 1; | - | |
| 220 | COVER | Cover | 1; | - | |
| 220.010 | 0091307149 | Cover | 1; | - | |
| HEXAGONSCREW | HEXAGONSCREW | Hexagon screw | 4; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
