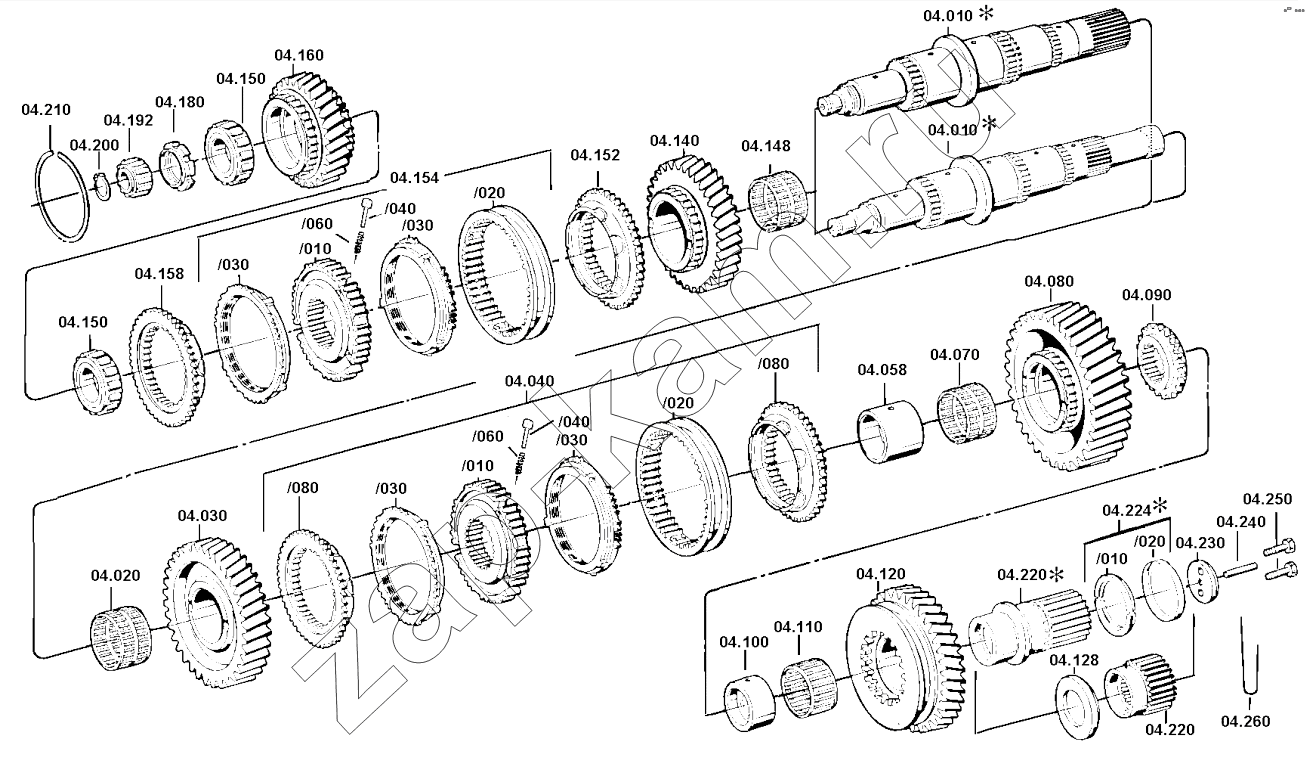

MAIN SHAFT
/ ZF КПП ZF 16S1650
260
210
210
210
210
210
210
200
192
0501398371
180
160
210
210
210
250
250
240
230
220
220
210
210
210
210
210
210
158
154.040
070
058
040.080
040.080
040.060
040.040
040.030
040.030
040.020
040.010
040
030
020
080
090
100
154.030
154.030
154.020
154.010
154
152
150
150
148
140
128
120
110
010
010
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 260 | 666890019 | Wire | 1; | |
| 210 | 0730005469 | Ring | 1; | |
| 210 | 0730005470 | Ring | 1; | |
| 210 | 0730005471 | Ring | 1; | |
| 210 | 0730005472 | Ring | 1; | |
| 210 | 0730005473 | Ring | 1; | |
| 210 | RING | RETAINING RING | 1; | |
| 200 | 0630501028 | Retaining ring | 1; | |
| 192 | 0735455040 | Cy.roll.bearing | 1; | |
| 0501398371 | 0501398371 | Locking nut | 1; | |
| 180 | LOCKINGNUT | Locking nut | 1; | |
| 160 | 0091304314 | Helical gear | 1; | |
| 210 | 0730005468 | Ring | 1; | |
| 210 | 0730005467 | Ring | 1; | |
| 210 | 0730005466 | Ring | 1; | |
| 250 | 0636010168 | Hexagon screw | 2; | |
| 250 | HEXAGONSCREW | Hexagon screw | 2; | |
| 240 | 0730061842 | Pipe | 1; | |
| 230 | 0091304291 | Fixing washer | 1; | |
| 220 | 0091304194 | Sun gear | 1; | |
| 210 | 0730007747 | Кольцо | 1; | |
| 210 | 0730005464 | Кольцо | 1; | |
| 210 | 0501398360 | Ring | 1; | |
| 210 | 0501398362 | Ring | 1; | |
| 210 | 0501398358 | Ring | 1; | |
| 210 | 0730005465 | Кольцо | 1; | |
| 158 | 0091304310 | Clutch body | 1; | |
| 154.050 | 0732040409 | Нажимная пружина | 3; | |
| 154.040 | 1297304436 | Толкатель | 3; | |
| 070 | 0735320487 | Needle cage | 1; | |
| 058 | 1297304035 | Bush | 1; | |
| 040.080 | 1316304154 | Clutch body | 2; | |
| 040.060 | 0732040409 | Нажимная пружина | 3; | |
| 040.040 | 1297304436 | Толкатель | 3; | |
| 040.030 | 1316304170 | Synchronizer ring | 2; | |
| 040.020 | 1316304169 | Sliding sleeve | 1; | |
| 040.010 | 1316304152 | Synchronizer body | 1; | |
| 040 | 1316204017 | Synchronizer | 1; | |
| 030 | 0091304322 | Helical gear | 1; | |
| 020 | 0735320418 | Needle cage | 1; | |
| 080 | 0091304297 | Helical gear | 1; | |
| 090 | 0091304207 | Clutch body | 1; | |
| 100 | 0091304034 | Bush | 1; | |
| 154.030 | 1297304484 | Кольцо синхронизатора | 2; | |
| 154.020 | 1310304225 | Sliding sleeve | 1; | |
| 154.010 | 0091304361 | Synchronizer body | 1; | |
| 154 | 0091204034 | Synchronizer | 1; | |
| 152 | 0091304310 | Clutch body | 1; | |
| 150 | 0750118005 | Cy.roll.bearing | 2; | |
| 148 | 0735320452 | Needle cage | 1; | |
| 140 | 0091304317 | Helical gear | 1; | |
| 128 | 0091304209 | Ring | 1; | |
| 120 | 0091304210 | Gear | 1; | |
| 110 | 0735320486 | Needle cage | 1; | |
| 010 | 0091304359 | Main shaft | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
