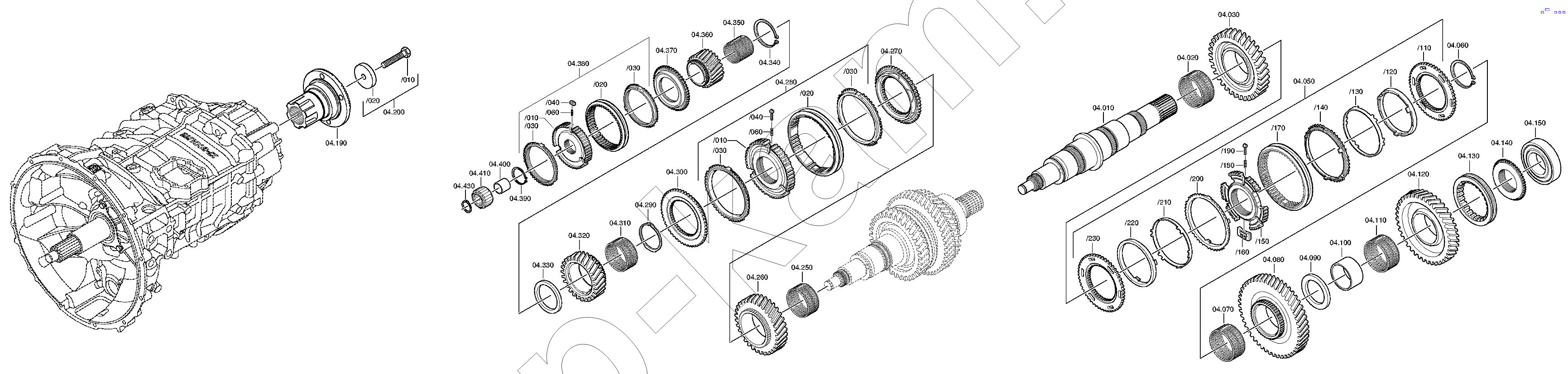

MAIN SHAFT
/ ZF КПП ZF 6S1000TO
10
20
30
50
60
70
80
90
100
110
120
130
140
150
190
200
200
250
260
270
280
290
300
310
320
330
340
350
360
370
380
390
400
410
430
1010
1010
1020
1020
1030
1030
1030
1030
1040
1040
1060
1060
10110
10120
10120
10120
10130
10140
10150
10160
10170
10180
10190
10200
10210
10220
10220
10220
10230
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 10 | 1346.304.107 | MAIN SHAFT | 1; | |
| 20 | 0750.115.567 | NEEDLE CAGE | 1; | |
| 30 | 1346.304.054 | HELICAL GEAR | 1; | |
| 50 | 1346.204.001 | SYNCHRONIZER | 1; | |
| 60 | 0730.300.991 | SNAP RING | 1; | |
| 70 | 0735.321.529 | NEEDLE CAGE | 1; | |
| 80 | 1346.304.125 | HELICAL GEAR | 1; | |
| 90 | 0501.322.939 | THRUST WASHER | 1; | |
| 100 | 0735.295.239 | INNNER RING | 1; | |
| 110 | 0735.321.529 | NEEDLE CAGE | 1; | |
| 120 | 1346.304.167 | HELICAL GEAR | 1; | |
| 130 | 1308.304.087 | SLIDING SLEEVE | 1; | |
| 140 | 1346.304.177 | CLUTCH BODY | 1; | |
| 150 | 0735.330.799 | BALL BEARING | 1; | |
| 190 | 1346.304.086 | OUTPUT FLANGE | 1; | |
| 200 | 0636.100.541 | HEXAGON BOLT | 1; | |
| 200 | 0730.113.920 | WASHER | 1; | |
| 250 | 0750.115.567 | NEEDLE CAGE | 1; | |
| 260 | 1346.304.136 | HELICAL GEAR | 1; | |
| 270 | 1346.304.094 | CLUTCH BODY | 1; | |
| 280 | 1346.204.005 | SYNCHRONIZER | 1; | |
| 290 | 0730.501.762 | RETAINING RING | 1; | |
| 300 | 1346.304.093 | CLUTCH BODY | 1; | |
| 310 | 0750.115.566 | NEEDLE CAGE | 1; | |
| 320 | 1346.304.099 | HELICAL GEAR | 1; | |
| 330 | 0501.323.702 | THRUST WASHER | 1; | |
| 340 | 0730.300.992 | SNAP RING | 1; | |
| 350 | 0750.115.565 | NEEDLE CAGE | 1; | |
| 360 | 1346.304.048 | HELICAL GEAR | 1; | |
| 370 | 1346.304.047 | CLUTCH BODY | 1; | |
| 380 | 1346.204.004 | SYNCHRONIZER | 1; | |
| 390 | 0630.531.050 | RETAINING RING | 1; | |
| 400 | 0735.295.223 | INNNER RING | 1; | |
| 410 | 0735.358.346 | ROLLER CAGE | 1; | |
| 430 | 0630.513.070 | SNAP RING | 1; | |
| 1010 | 1346.304.118 | SYNCHROBODY | 1; | |
| 1010 | 1346.304.025 | SYNCHROBODY | 1; | |
| 1020 | 1333.304.061 | SLIDING SLEEVE | 1; | |
| 1020 | 1310.304.195 | SLIDING SLEEVE | 1; | |
| 1030 | 1317.304.150 | SYNCHRORING | 2; | |
| 1030 | 1268.304.594 | SYNCHRORING | 2; | |
| 1040 | 1297.304.436 | PRESSURE PIECE | 3; | |
| 1040 | 1317.304.081 | PRESSURE PIECE | 3; | |
| 1060 | 0732.042.510 | COMPRSPRING | 3; | |
| 1060 | 0732.040.409 | COMPRSPRING | 3; | |
| 10110 | 1346.304.092 | CLUTCH DISC | 1; | |
| 10120 | 1346.304.039 | INNNER RING | 1; | |
| 10120 | 1346.304.032 | INNNER RING | 1; | |
| 10120 | RINGD135/128 | INNNER RING | 1; | |
| 10130 | 1346.304.038 | INTERMRING | 1; | |
| 10140 | 1346.304.033 | OUTER RING | 1; | |
| 10150 | 1346.304.091 | SYNCHROBODY | 1; | |
| 10160 | 1312.304.159 | COUPLING ELEMENT | 1; | |
| 10170 | 6002.305.994 | SLIDING SLEEVE | 1; | |
| 10180 | 0732.040.409 | COMPRSPRING | 1; | |
| 10190 | 1297.304.436 | PRESSURE PIECE | 1; | |
| 10200 | 1346.304.033 | OUTER RING | 1; | |
| 10210 | 1346.304.038 | INTERMRING | 1; | |
| 10220 | 1346.304.032 | INNNER RING | 1; | |
| 10220 | RINGD135/128 | INNNER RING | 1; | |
| 10220 | 1346.304.039 | INNNER RING | 1; | |
| 10230 | 1346.304.092 | CLUTCH DISC | 1; |
