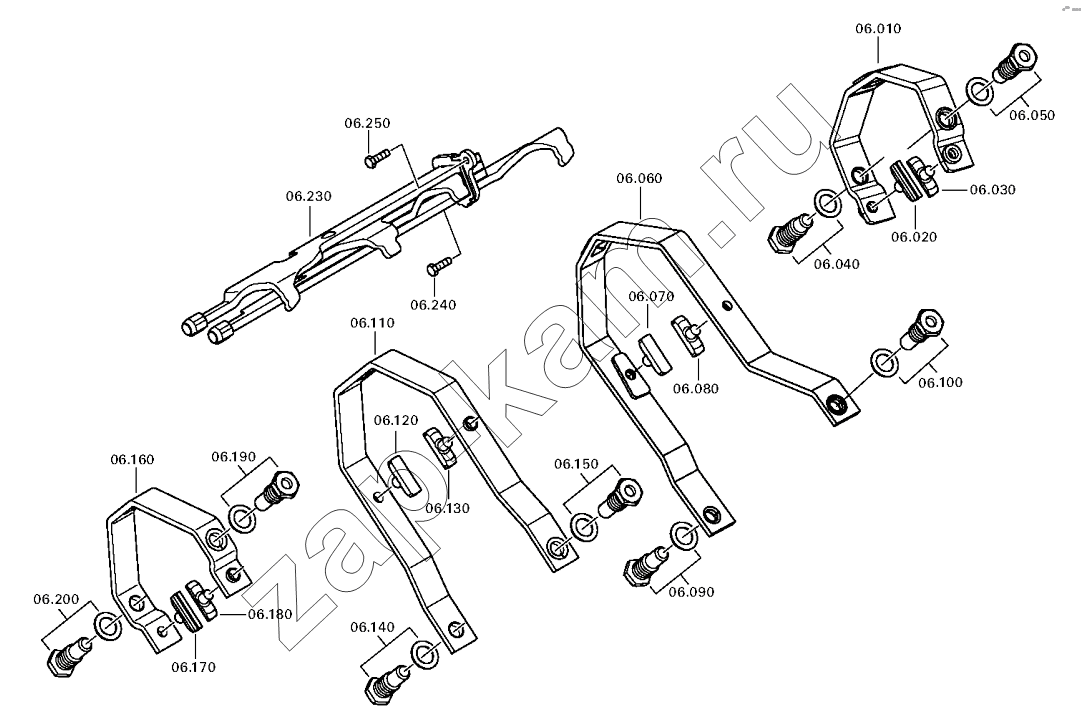

Система переключения передач
/ ZF КПП ZF 6S1000TO
/6.gif)
10
20
30
40
40
40
40
40
50
50
50
50
50
60
70
80
90
90
90
90
90
90
90
100
100
100
100
100
100
100
110
120
130
140
140
140
140
140
140
140
150
150
150
150
150
150
150
160
170
180
190
190
190
190
190
190
190
200
200
200
200
200
200
200
230
240
250
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 10 | 0501.217.826 | GEAR SHIFT FORK | 1; | |
| 20 | 1290.306.423 | SLIDING PAD | 1; | |
| 30 | 1290.306.423 | SLIDING PAD | 1; | |
| 40 | 0730.302.932 | Spring washer | 1; | |
| 40 | 0730.301.379 | SPRING WASHER | 1; | |
| 40 | 1346.306.082 | ARTICULATION BOLT | 1; | |
| 50 | 1346.306.082 | ARTICULATION BOLT | 1; | |
| 50 | 0730.301.379 | SPRING WASHER | 1; | |
| 50 | 0730.302.932 | Spring washer | 1; | |
| 60 | 0501.220.531 | Gearshift fork | 1; | |
| 70 | 1290.306.066 | SLIDING PAD | 1; | |
| 80 | 1290.306.066 | SLIDING PAD | 1; | |
| 90 | 1346.306.088 | ARTICULATION BOLT | 1; | |
| 90 | 1360.306.059 | Болт шарнирный | 1; | |
| 90 | 0730.301.379 | SPRING WASHER | 1; | |
| 90 | 0730.302.932 | Spring washer | 1; | |
| 100 | 0730.302.932 | Spring washer | 1; | |
| 100 | 0730.301.379 | SPRING WASHER | 1; | |
| 100 | Шайба | Шайба | 1; | |
| 100 | 1360.306.059 | Болт шарнирный | 1; | |
| 100 | 1346.306.088 | ARTICULATION BOLT | 1; | |
| 110 | 0501.217.828 | GEAR SHIFT FORK | 1; | |
| 120 | 1290.306.066 | SLIDING PAD | 1; | |
| 130 | 1290.306.066 | SLIDING PAD | 1; | |
| 140 | 1346.306.088 | ARTICULATION BOLT | 1; | |
| 140 | 1360.306.059 | Болт шарнирный | 1; | |
| 140 | 0730.301.379 | SPRING WASHER | 1; | |
| 140 | 0730.302.932 | Spring washer | 1; | |
| 150 | 0730.302.932 | Spring washer | 1; | |
| 150 | 0730.301.379 | SPRING WASHER | 1; | |
| 150 | 1360.306.059 | Болт шарнирный | 1; | |
| 150 | 1346.306.088 | ARTICULATION BOLT | 1; | |
| 160 | 0501.217.830 | GEAR SHIFT FORK | 1; | |
| 170 | 1290.306.423 | SLIDING PAD | 1; | |
| 180 | 1290.306.423 | SLIDING PAD | 1; | |
| 190 | 0730.302.932 | Spring washer | 1; | |
| 190 | 0730.301.379 | SPRING WASHER | 1; | |
| 190 | 1360.306.059 | Болт шарнирный | 1; | |
| 190 | 1346.306.088 | ARTICULATION BOLT | 1; | |
| 200 | 1346.306.088 | ARTICULATION BOLT | 1; | |
| 200 | 1360.306.059 | Болт шарнирный | 1; | |
| 200 | 0730.301.379 | SPRING WASHER | 1; | |
| 200 | 0730.302.932 | Spring washer | 1; | |
| 230 | 0501.217.832 | DRAG LINK | 1; | |
| 240 | 0636.100.613 | HEXAGON BOLT | 1; | |
| 250 | 0636.100.613 | HEXAGON BOLT | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
