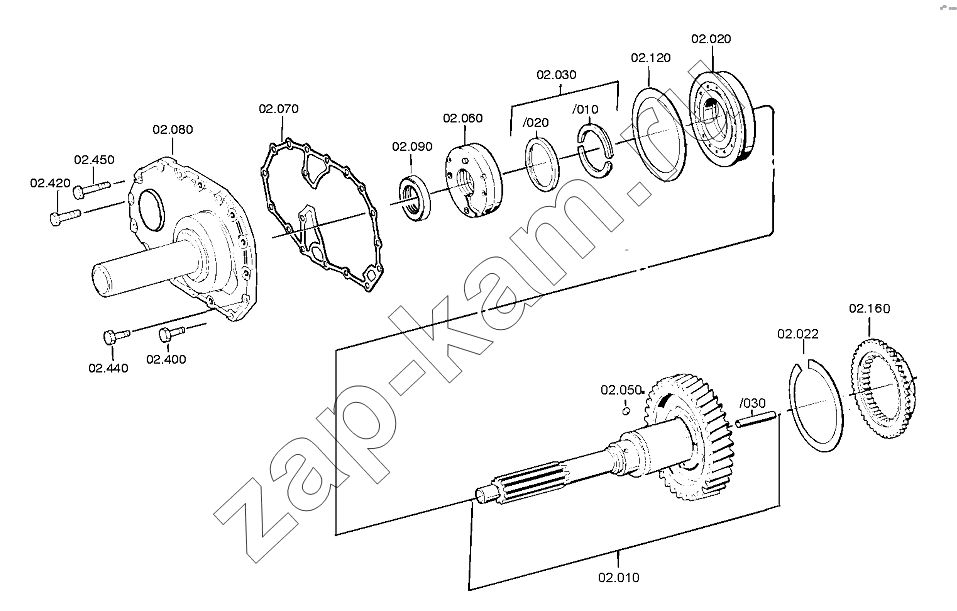

INPUT SHAFT 0091102190
/ ZF КПП ZF 8S-1350
010
010.030
020
022
022
022
022
022
022
022
022
022
022
022
030.010
030.010
030.010
030.010
030.020
030.020
030.010
030.010
030.010
030.010
030.010
030.010
030.010
030.010
030.010
030.010
030.020
050
060
060
060
070
080
090
120
120
120
120
120
160
400
400
420
420
440
440
450
450
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 010 | 0091202052 | Input shaft | 1; | |
| 010.030 | 0730062323 | Pipe | 1; | |
| 020 | 0750118130 | Cy.roll.bearing | 1; | |
| 022 | 0501398751 | Ring | 1; | |
| 022 | 0501398750 | Ring | 1; | |
| 022 | 0501398749 | Ring | 1; | |
| 022 | 0501398748 | Ring | 1; | |
| 022 | 0501398746 | Ring | 1; | |
| 022 | 0501398745 | Ring | 1; | |
| 022 | 0501398744 | Ring | 1; | |
| 022 | 0501398743 | Ring | 1; | |
| 022 | 0501398741 | Ring | 1; | |
| 022 | 0501398739 | Ring | 1; | |
| 030.010 | 1295202034 | Split ring | 1; | |
| 030.010 | 0730105156 | Split ring | 1; | |
| 030.010 | 0730105155 | Split ring | 1; | |
| 030.010 | 0730105154 | Split ring | 1; | |
| 030.020 | 0730062579 | Retaing ring | 1; | |
| 030.020 | 0091202058 | Split ring | 1; | |
| 030.010 | 0501396744 | Split ring | 1; | |
| 030.010 | 0501396743 | Split ring | 1; | |
| 030.010 | 0501396742 | Split ring | 1; | |
| 030.010 | 0501396741 | Split ring | 1; | |
| 030.010 | 0501396740 | Split ring | 1; | |
| 030.010 | 0501396739 | Split ring | 1; | |
| 030.010 | 0501396738 | Split ring | 1; | |
| 030.010 | 0501396737 | Split ring | 1; | |
| 030.010 | 0501396736 | Split ring | 1; | |
| 030.010 | 0501396745 | Split ring | 1; | |
| 030.020 | 0501398753 | Retaing ring | 1; | |
| 050 | 0635470012 | Cyl.roller | 1; | |
| 060 | 0091202057 | Pump | 1; | |
| 060 | 1295202035 | Pump | 1; | |
| 060 | 1269202087 | Pump | 1; | |
| 070 | 1313302014 | Gasket | 1; | |
| 080 | 0091302284 | Conn.plate | 1; | |
| 090 | 0734310111 | Shaft seal | 1; | |
| 120 | 0730103804 | Shim | 1; | |
| 120 | 0730108096 | Shim | 1; | |
| 120 | 0730102505 | Shim | 1; | |
| 120 | 0730102504 | Shim | 1; | |
| 120 | 0730102503 | Shim | 1; | |
| 160 | 0091304311 | Clutch body | 1; | |
| 400 | HEXCAPSCREW | Hex cap screw | 11; | |
| 400 | 0636015120 | Hex cap screw | 11; | |
| 420 | HEXCAPSCREW | Hex cap screw | 1; | |
| 420 | 0636015120 | Hex cap screw | 1; | |
| 440 | HEXCAPSCREW | Hex cap screw | 2; | |
| 440 | 0636015120 | Hex cap screw | 2; | |
| 450 | HEXCAPSCREW | Hex cap screw | 2; | |
| 450 | 0636015120 | Hex cap screw | 2; |
