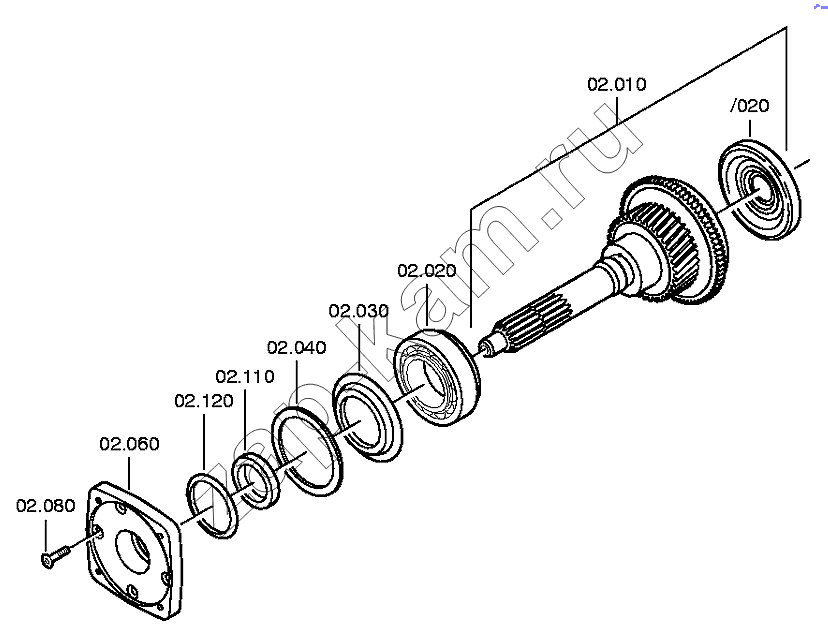

Вал первичный
/ ZF КПП ZF S5-42
10
20
20
30
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
60
80
110
120
1020
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 10 | 1307.202.160 | INPUT SHAFT | 1; | - | |
| 20 | 1307.202.116 | TAROLLBEARING | 1; | - | |
| 20 | 1307.202.018 | TAROLLBEARING | 1; | - | |
| 30 | 0750.112.061 | RING | 1; | - | |
| 40 | 0730.106.201 | WASHER | 1; | - | |
| 40 | 0730.106.684 | WASHER | 1; | - | |
| 40 | 0730.106.685 | WASHER | 1; | - | |
| 40 | 0730.106.686 | WASHER | 1; | - | |
| 40 | 0730.106.687 | WASHER | 1; | - | |
| 40 | 0730.106.688 | WASHER | 1; | - | |
| 40 | 0730.106.689 | WASHER | 1; | - | |
| 40 | 0730.105.763 | WASHER | 1; | - | |
| 40 | 0730.106.200 | WASHER | 1; | - | |
| 40 | 0730.105.764 | WASHER | 1; | - | |
| 40 | 0730.105.765 | WASHER | 1; | - | |
| 40 | 0730.106.202 | WASHER | 1; | - | |
| 40 | 0730.105.766 | WASHER | 1; | - | |
| 40 | 0730.106.203 | WASHER | 1; | - | |
| 40 | 0730.105.767 | WASHER | 1; | - | |
| 40 | 0730.106.204 | WASHER | 1; | - | |
| 40 | 0730.105.768 | WASHER | 1; | - | |
| 60 | 1307.302.126 | BEARING FLANGE | 1; | - | |
| 80 | 0636.100.315 | COUNTERSSCREW | 1; | - | |
| 110 | 0734.310.396 | SHAFT SEAL | 1; | - | |
| 120 | 0634.303.053 | O-RING | 1; | - | |
| 1020 | 0750.190.014 | OIL DAM | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
