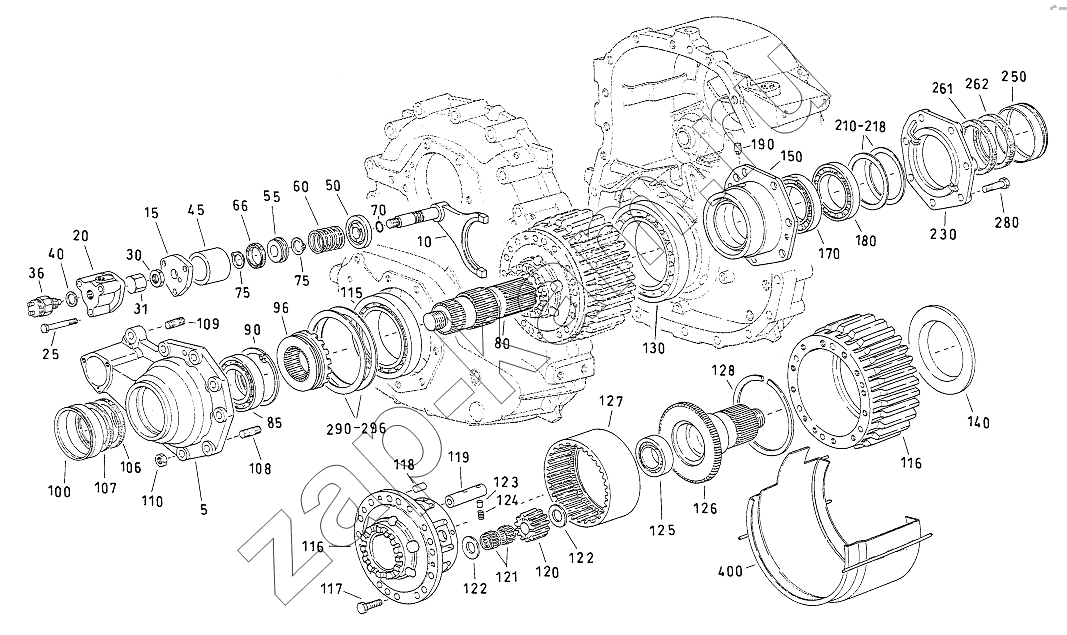

OUTPUT SHAFT, BEARING COVER
/ ZF VG-1600-300

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
5
10
15
20
25
30
31
36
40
45
50
55
60
66
70
75
75
80
85
90
96
100
106
107
108
109
110
115
116
116
117
118
119
120
121
122
122
123
124
125
126
127
128
130
140
150
170
180
190
210
212
214
216
218
218
230
250
261
262
280
290
291
292
293
294
295
296
400
Поз. Артикул Название детали Кол-во
5 199118250222 Bearing housing 1;
10 199118250127 Shift fork 1;
15 199118250094 Cover 1;
20 199118250251 Cover 1;
25 190003800467 Hex head bolt 3;
30 190003871545 Hexagon nut 1;
31 199118250250 Plain nut 1;
36 171200710001 Pressure switch 1;
40 190003098020 Sealing ring 1;
45 199014250122 Bush 1;
50 199014250123 Washer 1;
55 199014250124 Piston 1;
60 1-99-976-003 Pressure ring 1;
66 1-99-965-021 Sealing cup 1;
70 1306A 010019 O-ring 1;
75 190003933076 Retaining ring 2;
80 199118250120 Output shaft 1;
85 190003310018 Grove ball bearing 1;
90 190003934520 Retaining ring 1;
96 199118250345 Shifting sleeve 1;
100 199118250601 Sealing pot 1;
106 190003070026 Radial realing ring 1;
107 190003078772 Radial realing ring 1;
108 190003813655 Stud bolt 3;
109 190003813638 Stud bolt 7;
110 190003871319 Hexagon nut 10;
115 190003320070 Roller bearing 1;
116 171600220055 Drive gear 1;
117 190003800025 Hex head bolt 12;
118 179200250035 Bolt 6;
119 199118250289 Planetary bolt 5;
120 199118250125 Planetary gear 5;
121 199118250178 Needle bearing 10;
122 199118250160 Thrust washer 10;
123 190003901309 Cylinder pin 5;
124 199118250159 Pressure spring 5;
125 199118250175 Roller bearing 1;
126 199118250121 Output shaft 1;
127 199118250126 Hollow gear 1;
128 1-99-917-003 Retaining ring 1;
130 199118250253 Roller bearing 1;
140 199118250254 Baffle washer 1;
150 199118250252 Bearing support 1;
170 199118250176 4-point bearing 1;
180 190003320067 Roller bearing 1;
190 199118250157 Locking bolt 1;
210 199118250304 Shim 1;
212 199118250305 Shim 1;
214 199118250306 Shim 1;
216 199118250307 Shim 1;
218 199118250308 Shim 1;
230 199118250224 Bearing cover 1;
250 199118250602 Sealing pot 1;
261 190003070039 Radial sealing ring 1;
262 190003070068 Radial sealing ring 1;
280 190003802642 Hex head bolt 7;
290 199118250364 Shim 1;
291 199118250365 Shim 1;
292 199118250366 Shim 1;
293 199118250367 Shim 1;
294 199118250368 Shim 1;
295 199118250369 Shim 1;
296 199118250370 Shim 1;
297 199118250371 Shim 1;
400 171600210019 Cover plate 1;
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
