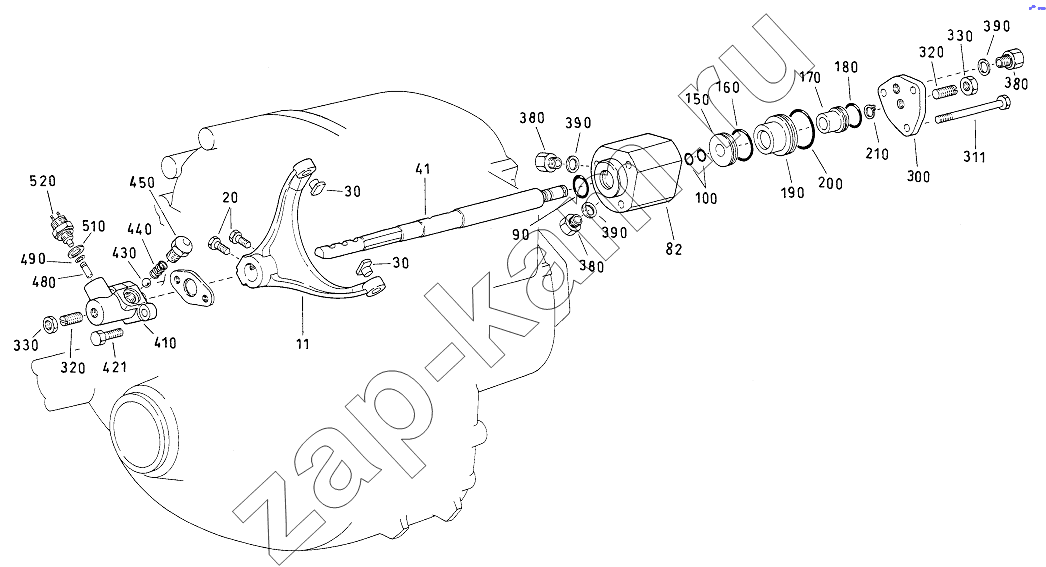

PNEUM.GEAR SHIFTING
/ ZF VG-1600-300
11
20
30
30
41
82
90
100
150
160
170
180
190
200
210
300
311
320
320
330
330
380
380
390
390
390
410
421
430
440
450
480
490
510
520
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 11 | 172000240009 | Shift fork | 1; | |
| 20 | 199118250424 | Screw | 2; | |
| 30 | 11800 320077 | Slider | 2; | |
| 41 | 171600240010 | Shift rod | 1; | |
| 82 | 171600240011 | Shifting cylinder | 1; | |
| 90 | 199118250427 | Sealing ring | 1; | |
| 100 | 1306A 010019 | O-ring | 2; | |
| 150 | 199118250352 | Piston | 1; | |
| 160 | 199118250406 | Sealing ring | 1; | |
| 170 | 199118250353 | Piston | 1; | |
| 180 | 199118250405 | Sealing ring | 1; | |
| 190 | 199118250351 | Piston | 1; | |
| 200 | 199118250407 | Sealing ring | 1; | |
| 210 | 190003933076 | Retaining ring | 1; | |
| 300 | 199118250039 | Cover | 1; | |
| 311 | 190003800676 | Hex head screw | 3; | |
| 320 | 199114250079 | Threaded pin | 2; | |
| 330 | 190003871526 | Hexagon nut | 2; | |
| 380 | 1680350125 | Boss reducer | 3; | |
| 390 | 190003098012 | Sealing ring | 3; | |
| 410 | 199118250425 | Flange housing | 1; | |
| 421 | 190003802527 | Hex head bolt | 2; | |
| 430 | 190003330183 | Ball | 1; | |
| 440 | 11800 240023 | Snap spring | 1; | |
| 450 | 12700 240049 | Locking ball | 1; | |
| 480 | 199114250047 | Pin | 1; | |
| 490 | 190003936004 | Snap ring | 1; | |
| 510 | 190003098020 | Sealing ring | 1; | |
| 520 | 171200710002 | Pressure switch | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
