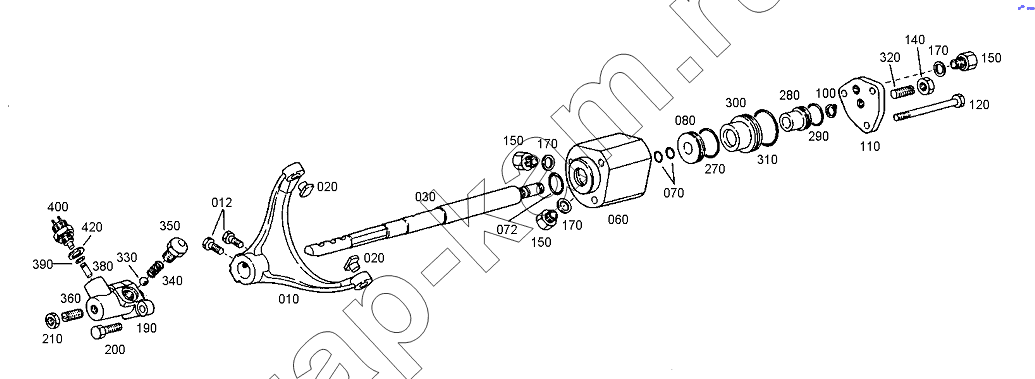

GEARSHIFT SYST.
/ ZF VG-1600-300 (без КОМ)
10
12
20
20
30
60
70
72
80
100
110
120
140
150
150
150
170
170
170
190
200
210
270
280
290
300
310
320
330
340
350
360
380
390
400
420
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 10 | 5840.303.319 | Gear shift fork | 1; | |
| 12 | 5841.300.624 | Screw | 2; | |
| 20 | 5841.300.008 | Schaltgabelschu | 2; | |
| 30 | 5841.300.208 | Gear shift rod | 1; | |
| 60 | 5841.300.209 | Shift cylinder | 1; | |
| 70 | 0634.306.012 | O-ring | 2; | |
| 72 | 5840.333.137 | Sealing ring | 1; | |
| 80 | 5841.300.597 | Piston | 1; | |
| 100 | 0630.501.014 | Retaining ring | 1; | |
| 110 | 5841.300.531 | Cover | 1; | |
| 120 | 5840.333.146 | Hexagon screw | 3; | |
| 140 | 5840.333.197 | Hexagon nut | 1; | |
| 150 | 5840.303.316 | Reduction piece | 3; | |
| 170 | 0634.801.205 | Sealing ring | 3; | |
| 190 | 5841.300.625 | Flange | 1; | |
| 200 | 0636.015.386 | Hexagon screw | 2; | |
| 210 | 5840.333.197 | Hexagon nut | 1; | |
| 270 | 5840.303.318 | Sealing ring | 1; | |
| 280 | 5841.300.598 | Piston | 1; | |
| 290 | 5840.333.135 | Sealing ring | 1; | |
| 300 | 5841.300.596 | Piston | 1; | |
| 310 | 5838.300.726 | Sealing ring | 1; | |
| 320 | 5841.300.441 | Set screw | 1; | |
| 330 | 0635.460.021 | Ball | 1; | |
| 340 | 5841.300.006 | Spring | 1; | |
| 350 | 5841.300.030 | Sperrkugelfueh. | 1; | |
| 360 | 5841.300.441 | Set screw | 1; | |
| 380 | 5841.300.432 | Pin | 1; | |
| 390 | 0630.505.536 | Snap ring | 1; | |
| 400 | 5841.300.164 | Pressure switch | 1; | |
| 420 | 0634.801.057 | Sealing ring | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
