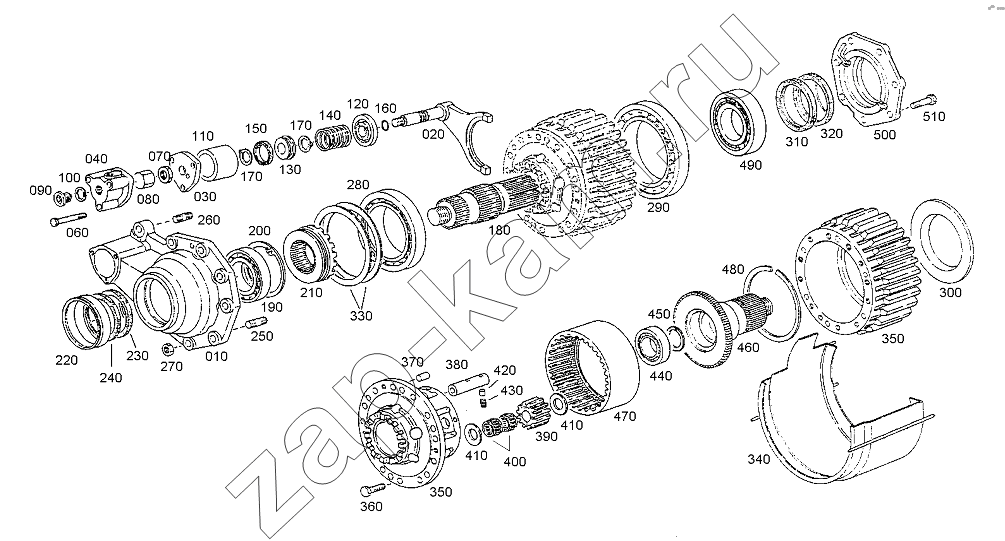

OUTPUT
/ ZF VG-1600-300 (без КОМ)
010
020
030
040
060
070
080
090
100
110
120
130
140
150
160
170
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
350
360
370
380
390
400
410
410
420
430
440
450
460
470
480
490
500
510
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 010 | 5841.300.552 | Bearing housing | 1; | |
| 020 | 5841.300.538 | Gear shift fork | 1; | |
| 030 | 5841.300.533 | Cover | 1; | |
| 040 | 5841.300.564 | Cover | 1; | |
| 060 | 0636.010.540 | Болт 6-гранный | 3; | |
| 070 | 5840.333.198 | Hexagon nut | 1; | |
| 080 | 5841.300.563 | Cap nut | 1; | |
| 090 | 0636.302.021 | Пробка с резьбой | 1; | |
| 100 | 0634.801.057 | Sealing ring | 1; | |
| 110 | 5841.300.373 | Bush | 1; | |
| 120 | 5841.300.374 | Washer | 1; | |
| 130 | 5841.300.375 | Piston | 1; | |
| 140 | 5841.300.653 | Compr.spring | 1; | |
| 150 | 5841.300.652 | Sealing collar | 1; | |
| 160 | 0634.306.012 | O-ring | 1; | |
| 170 | 0630.501.014 | Retaining ring | 2; | |
| 180 | 5841.300.534 | Output shaft | 1; | |
| 190 | 0750.116.206 | Ball bearing | 1; | |
| 200 | 0630.502.048 | Retaining ring | 1; | |
| 210 | 5841.300.595 | G.shift sleeve | 1; | |
| 220 | 5841.300.550 | Pot | 1; | |
| 230 | 5840.333.227 | Shaft seal | 1; | |
| 240 | 5840.333.268 | Shaft seal | 1; | |
| 250 | 0636.611.146 | Stud | 3; | |
| 260 | 0636.611.145 | Stud | 7; | |
| 270 | 0637.006.202 | Hexagon nut | 10; | |
| 280 | 5840.333.089 | Ta.roll.bearing | 1; | |
| 290 | 5841.300.566 | Kegelrollenlag. | 1; | |
| 300 | 5841.300.567 | Oil dam | 1; | |
| 310 | 5840.333.233 | Shaft seal | 1; | |
| 320 | 5840.333.240 | Shaft seal | 1; | |
| 330 | SHIM | SHIM | 1; | |
| 10.010 | 5841.300.607 | Shim | 1; | |
| 10.020 | 5841.300.608 | Shim | 1; | |
| 10.030 | 5841.300.609 | Shim | 1; | |
| 10.040 | 5841.300.610 | Shim | 1; | |
| 10.050 | 5841.300.611 | Shim | 1; | |
| 10.060 | 5841.300.612 | Shim | 1; | |
| 10.070 | 5841.300.613 | Shim | 1; | |
| 10.080 | 5841.300.614 | Shim | 1; | |
| 340 | 5841.300.166 | Cover plate | 1; | |
| 350 | 5841.303.204 | Output gear | 1; | |
| 360 | 0636.020.118 | Hexagon screw | 12; | |
| 370 | 5841.300.324 | Fitting pin | 6; | |
| 380 | 5841.300.573 | Planet shaft | 5; | |
| 390 | 5841.300.536 | Planet gear | 5; | |
| 400 | 5841.300.548 | Needle cage | 10; | |
| 410 | 5841.300.545 | Thrust washer | 10; | |
| 420 | 0631.302.047 | Cylindrical pin | 5; | |
| 430 | 5841.300.544 | Compr.spring | 5; | |
| 440 | 5841.303.205 | Cy.roll.bearing | 1; | |
| 450 | 0630.531.222 | V-ring | 1; | |
| 460 | 5841.303.207 | Output shaft | 1; | |
| 470 | 5841.300.537 | Ring gear | 1; | |
| 480 | 5841.300.642 | Retaining ring | 1; | |
| 490 | 5840.302.754 | Roller bearing | 1; | |
| 500 | 5841.300.812 | Bearing cover | 1; | |
| 510 | 0636.011.335 | Болт 6-гранный | 7; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
