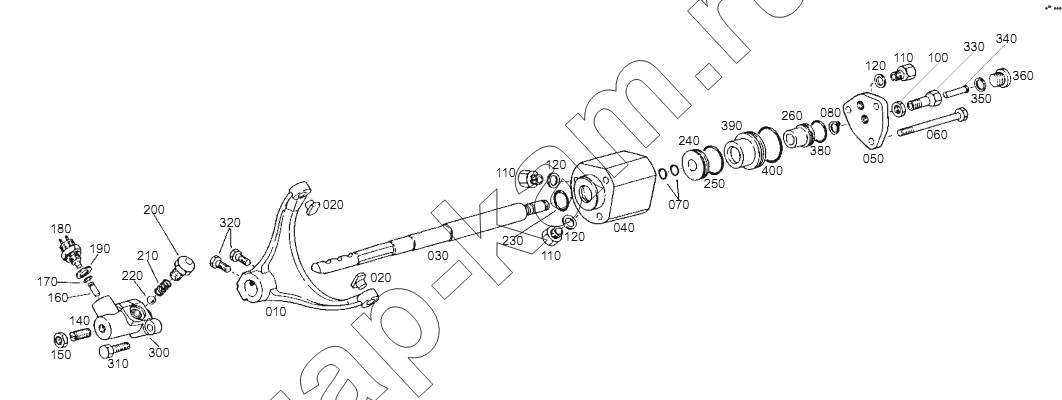

GEARSHIFT SYST. 5849.112.020
/ ZF VG-2000-300
10
20
20
30
40
50
60
70
80
100
110
110
110
120
120
120
140
150
160
170
180
190
200
210
220
230
240
258
260
300
310
320
330
340
350
360
380
390
400
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 10 | 5840.303.319 | Gear shift fork | 1; | |
| 20 | 5841.300.008 | Schaltgabelschu | 2; | |
| 30 | 5841.300.626 | Shifter rod | 1; | |
| 40 | 5841.300.209 | Shift cylinder | 1; | |
| 50 | 5841.300.531 | Cover | 1; | |
| 60 | 5840.333.146 | Hexagon screw | 3; | |
| 70 | 0634.306.012 | O-ring | 2; | |
| 80 | 0630.501.014 | Retaining ring | 1; | |
| 100 | 5840.333.197 | Hexagon nut | 1; | |
| 110 | 5840.303.316 | Reduction piece | 3; | |
| 120 | 0634.801.205 | Sealing ring | 3; | |
| 140 | 5841.300.441 | Set screw | 1; | |
| 150 | 5840.333.197 | Hexagon nut | 1; | |
| 160 | 5841.300.432 | Pin | 1; | |
| 170 | 0630.505.536 | Snap ring | 1; | |
| 180 | 5841.300.254 | Pressure switch | 1; | |
| 190 | 0634.801.057 | Sealing ring | 1; | |
| 200 | 5841.300.030 | Sperrkugelfueh. | 1; | |
| 210 | 5841.300.006 | Spring | 1; | |
| 220 | 0635.460.021 | Ball | 1; | |
| 230 | 5840.333.137 | Sealing ring | 1; | |
| 240 | 5841.300.597 | Piston | 1; | |
| 258 | 5840.303.318 | Sealing ring | 1; | |
| 260 | 5841.300.598 | Piston | 1; | |
| 300 | 5841.300.625 | Flange | 1; | |
| 310 | 0636.015.386 | Hexagon screw | 2; | |
| 320 | 5841.300.624 | Screw | 2; | |
| 330 | 5841.300.562 | Setting screw | 1; | |
| 340 | 5840.333.207 | Stud | 1; | |
| 350 | 0634.801.057 | Sealing ring | 1; | |
| 360 | 0636.302.021 | Пробка с резьбой | 1; | |
| 380 | 5840.333.135 | Sealing ring | 1; | |
| 390 | 5841.300.596 | Piston | 1; | |
| 400 | 5838.300.726 | Sealing ring | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
