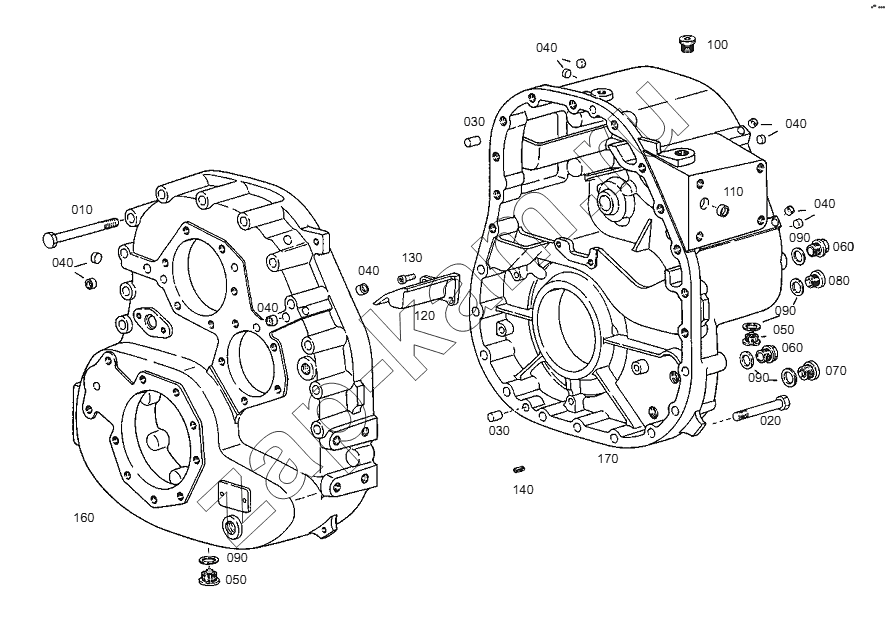

HOUSING 5849.103.027
/ ZF VG-2000-300
10
20
30
30
40
40
40
40
40
40
50
50
60
60
70
80
90
90
90
90
100
110
120
130
140
160
170
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 10 | 0636.011.583 | Hexagon screw | 12; | - | |
| 20 | 0636.011.582 | Hexagon screw | 10; | - | |
| 30 | 5840.333.205 | Zyl.stift | 2; | - | |
| 40 | 5840.333.132 | Plug | 12; | - | |
| 50 | 5838.300.283 | Screw plug | 2; | - | |
| 60 | 0636.305.061 | Screw plug | 2; | - | |
| 70 | 0636.302.045 | Screw plug | 1; | - | |
| 80 | 0636.302.045 | Screw plug | 2; | - | |
| 90 | 0634.801.074 | Sealing ring | 7; | - | |
| 100 | 0636.301.055 | Screw plug | 1; | - | |
| 110 | 5840.333.288 | Kernl.verschl. | 1; | - | |
| 120 | 5840.306.500 | Oil coll.bag | 1; | - | |
| 130 | 0636.101.662 | Cap screw | 2; | - | |
| 140 | 0631.329.053 | Slot.pin | 1; | - | |
| 160 | 5841.300.589 | Transfer box housing | 1; | - | |
| 170 | 5841.302.095 | Housing | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
