CONTROL UNIT
/ DongFeng DFH4180-HA40-000-A0

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

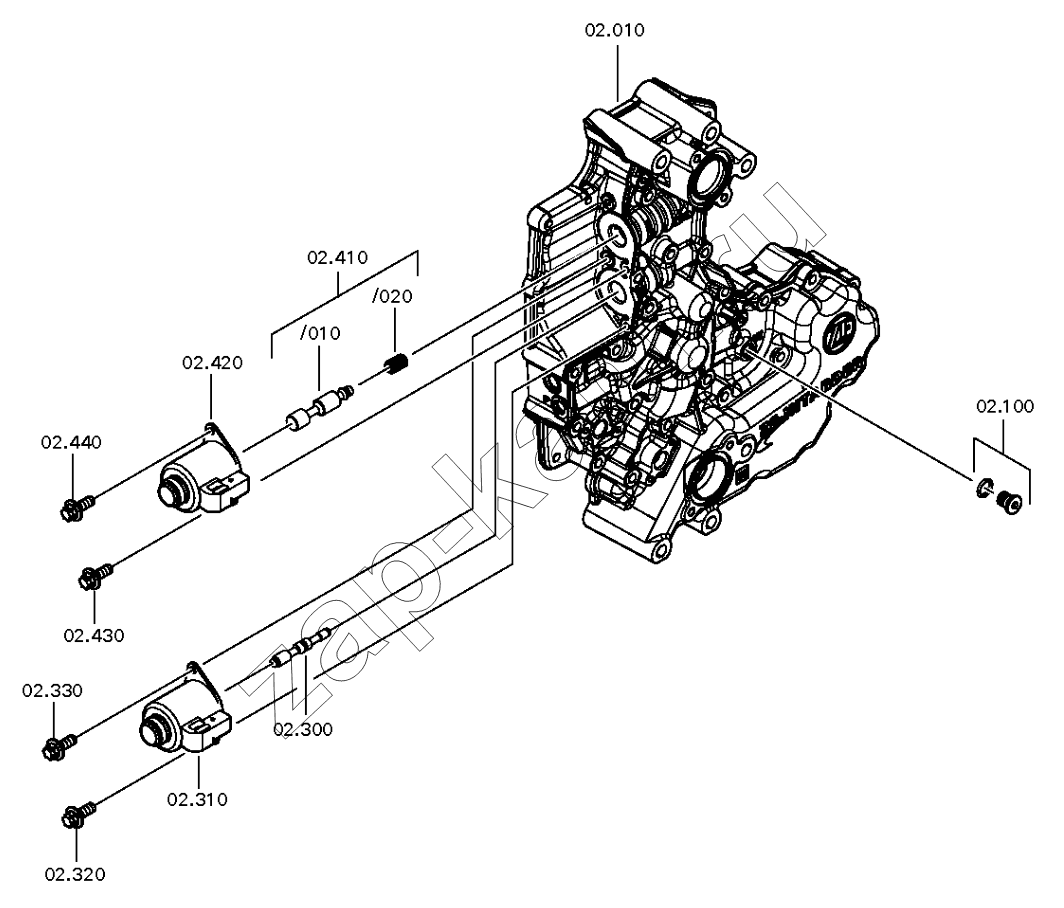

Схема/чертеж: CONTROL UNIT / DongFeng DFH4180-HA40-000-A0
02.10
02.100
02.100
02.100
02.300
02.310
02.320
02.330
02.410
02.410.10
02.410.20
02.420
02.430
02.440
Поз. Артикул Название детали Кол-во Цена
02.10 6093.302.053 Control housing 1; 77 060 ₽
02.50 0735.303.082 Needle bearing 1; -
02.60 0630.502.010 Retaining ring 1; -
02.100 SCREW PLUG Screw plug 1; -
02.100 0636.100.792 Screw plug 1; -
02.100 0634.349.853 O-ring 1; -
02.120 SCREW PLUG Screw plug 1; -
02.120 0636.100.792 Screw plug 1; -
02.120 0634.349.853 O-ring 1; -
02.200 0635.460.023 Ball 1; -
02.210 1204.304.116 Compression spring 1; -
02.220 SCREW PLUG Screw plug 1; -
02.220 0636.100.689 Screw plug 1; 310 ₽
02.220 0634.349.858 O-ring 1; -
02.300 6093.302.025 Piston 1; -
02.310 0501.330.120 Magnet 1; -
02.320 0636.102.673 Hexalobular driving screw 1; 170 ₽
02.330 0636.102.673 Hexalobular driving screw 1; 170 ₽
02.410 6093.202.003 Piston 1; 1 530 ₽
02.410.10 6093.302.039 Piston 1; -
02.410.20 0732.042.270 Compression spring 1; -
02.420 0501.330.120 Magnet 1; -
02.430 0636.102.673 Hexalobular driving screw 1; 170 ₽
02.440 0636.102.673 Hexalobular driving screw 1; 170 ₽
02.500 0501.217.385 Pump 1; -
02.500.10 0501.326.406 Rotor 1; -
02.500.20 0501.326.405 Pendulum 7; -
02.500.30 0501.326.407 Cage 1; -
02.500.40 0501.325.970 Ring slide 1; -
02.510 6093.203.001 Set of springs 1; -
02.520 0631.306.874 Cylindrical pin 1; -
02.600 0501.217.473 Gasket 1; -
02.600.10 0501.326.584 Gasket 1; -
02.600.20 0501.326.586 Intermediate plate 1; -
02.600.30 0501.326.585 Gasket 1; -
02.610 0631.100.005 Cylindrical pin 1; -
02.630 0631.100.005 Cylindrical pin 1; -
02.700 0736.300.642 Hexagon screw 1; -
02.704 0736.300.642 Hexagon screw 1; -
02.708 0736.300.642 Hexagon screw 1; -
02.712 0736.300.642 Hexagon screw 1; -
02.716 0736.300.642 Hexagon screw 1; -
02.720 0736.300.642 Hexagon screw 1; -
02.724 0736.300.642 Hexagon screw 1; -
02.728 0736.300.642 Hexagon screw 1; -
02.732 0736.300.642 Hexagon screw 1; -
02.736 0736.300.642 Hexagon screw 1; -
02.740 0736.300.642 Hexagon screw 1; -
02.744 0736.300.642 Hexagon screw 1; -
02.748 0736.300.642 Hexagon screw 1; -
02.752 0736.300.642 Hexagon screw 1; -
02.756 0736.300.642 Hexagon screw 1; -
02.760 0736.300.642 Hexagon screw 1; -
02.764 0736.300.642 Hexagon screw 1; -
02.768 0736.300.642 Hexagon screw 1; -
02.772 0736.300.642 Hexagon screw 1; -
02.776 0736.300.642 Hexagon screw 1; -
02.780 0736.300.642 Hexagon screw 1; -
02.784 0736.300.642 Hexagon screw 1; -
02.788 0736.300.642 Hexagon screw 1; -
02.792 0736.300.642 Hexagon screw 1; -
02.796 0736.300.642 Hexagon screw 1; -
02.800 0736.300.642 Hexagon screw 1; -
02.804 0736.300.642 Hexagon screw 1; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
