CONTROL UNIT
/ DongFeng DFH4180-HA40-000-A0

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

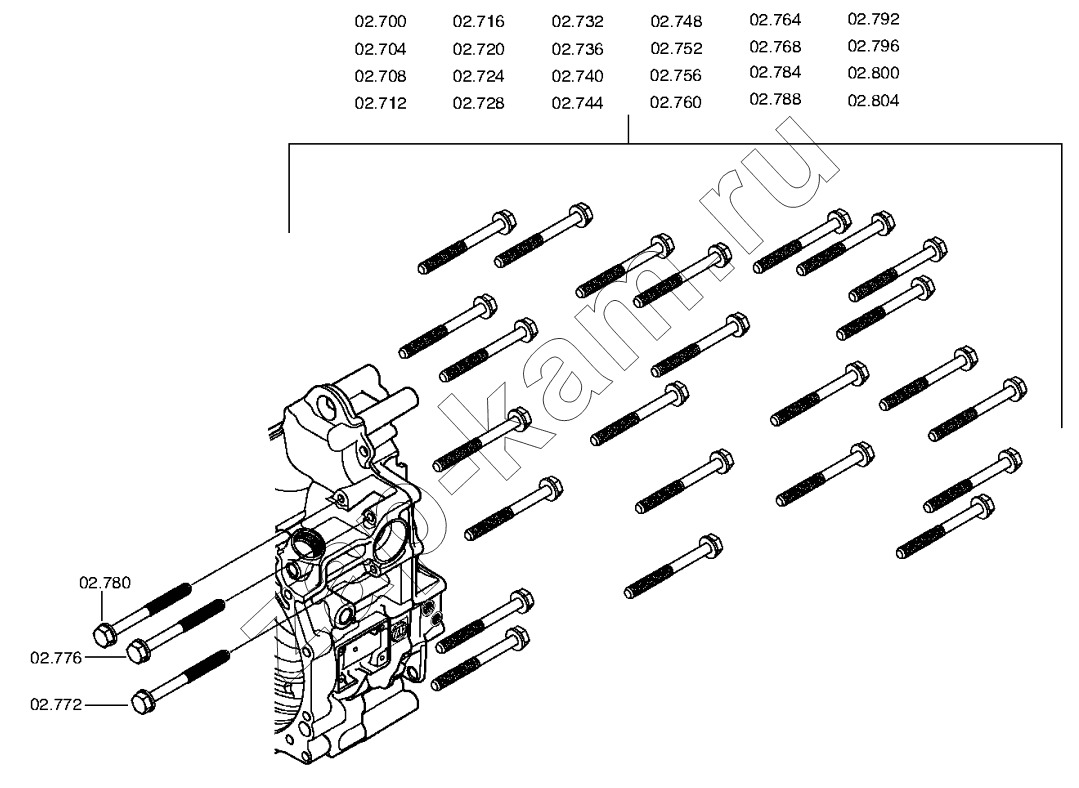

Схема/чертеж: CONTROL UNIT / DongFeng DFH4180-HA40-000-A0
02.700
02.704
02.708
02.712
02.716
02.720
02.724
02.728
02.732
02.736
02.740
02.744
02.748
02.752
02.756
02.760
02.764
02.768
02.772
02.776
02.780
02.784
02.788
02.792
02.796
02.800
02.804
Поз. Артикул Название детали Кол-во Цена
02.10 6093.302.053 Control housing 1; 77 060 ₽
02.50 0735.303.082 Needle bearing 1; -
02.60 0630.502.010 Retaining ring 1; -
02.100 SCREW PLUG Screw plug 1; -
02.100 0636.100.792 Screw plug 1; -
02.100 0634.349.853 O-ring 1; -
02.120 SCREW PLUG Screw plug 1; -
02.120 0636.100.792 Screw plug 1; -
02.120 0634.349.853 O-ring 1; -
02.200 0635.460.023 Ball 1; -
02.210 1204.304.116 Compression spring 1; -
02.220 SCREW PLUG Screw plug 1; -
02.220 0636.100.689 Screw plug 1; 310 ₽
02.220 0634.349.858 O-ring 1; -
02.300 6093.302.025 Piston 1; -
02.310 0501.330.120 Magnet 1; -
02.320 0636.102.673 Hexalobular driving screw 1; 170 ₽
02.330 0636.102.673 Hexalobular driving screw 1; 170 ₽
02.410 6093.202.003 Piston 1; 1 530 ₽
02.410.10 6093.302.039 Piston 1; -
02.410.20 0732.042.270 Compression spring 1; -
02.420 0501.330.120 Magnet 1; -
02.430 0636.102.673 Hexalobular driving screw 1; 170 ₽
02.440 0636.102.673 Hexalobular driving screw 1; 170 ₽
02.500 0501.217.385 Pump 1; -
02.500.10 0501.326.406 Rotor 1; -
02.500.20 0501.326.405 Pendulum 7; -
02.500.30 0501.326.407 Cage 1; -
02.500.40 0501.325.970 Ring slide 1; -
02.510 6093.203.001 Set of springs 1; -
02.520 0631.306.874 Cylindrical pin 1; -
02.600 0501.217.473 Gasket 1; -
02.600.10 0501.326.584 Gasket 1; -
02.600.20 0501.326.586 Intermediate plate 1; -
02.600.30 0501.326.585 Gasket 1; -
02.610 0631.100.005 Cylindrical pin 1; -
02.630 0631.100.005 Cylindrical pin 1; -
02.700 0736.300.642 Hexagon screw 1; -
02.704 0736.300.642 Hexagon screw 1; -
02.708 0736.300.642 Hexagon screw 1; -
02.712 0736.300.642 Hexagon screw 1; -
02.716 0736.300.642 Hexagon screw 1; -
02.720 0736.300.642 Hexagon screw 1; -
02.724 0736.300.642 Hexagon screw 1; -
02.728 0736.300.642 Hexagon screw 1; -
02.732 0736.300.642 Hexagon screw 1; -
02.736 0736.300.642 Hexagon screw 1; -
02.740 0736.300.642 Hexagon screw 1; -
02.744 0736.300.642 Hexagon screw 1; -
02.748 0736.300.642 Hexagon screw 1; -
02.752 0736.300.642 Hexagon screw 1; -
02.756 0736.300.642 Hexagon screw 1; -
02.760 0736.300.642 Hexagon screw 1; -
02.764 0736.300.642 Hexagon screw 1; -
02.768 0736.300.642 Hexagon screw 1; -
02.772 0736.300.642 Hexagon screw 1; -
02.776 0736.300.642 Hexagon screw 1; -
02.780 0736.300.642 Hexagon screw 1; -
02.784 0736.300.642 Hexagon screw 1; -
02.788 0736.300.642 Hexagon screw 1; -
02.792 0736.300.642 Hexagon screw 1; -
02.796 0736.300.642 Hexagon screw 1; -
02.800 0736.300.642 Hexagon screw 1; -
02.804 0736.300.642 Hexagon screw 1; -
