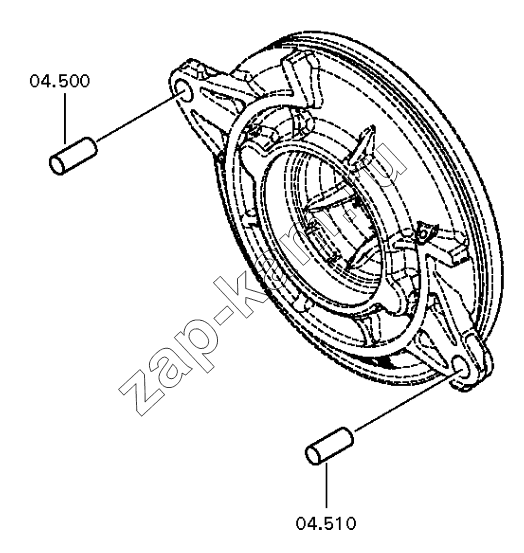

RETARDER
/ DongFeng DFH4180-HA40-000-A0

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано DAF DongFeng FAW Foton HOWO IVECO JAC Motors MAN Shaanxi SITRAK Volvo Автокомпонент Плюс ЗИЛ КАЗ КамАЗ Мадара НефАЗ СЗАП Тонар УралАЗ

Модель Не выбрано DFH3410A563-L15R-930-00 (2023) DFH4180-HA40-000-A0 (2022) DFL-3250A1-K09-003-01 (2007) DFL-3251A (2008) DFL-3251A Euro3 (2008) DFL-3251AW1 (2013) DFL-3251AW1 (2017) DFL-3251AXA Euro3 (2008) DFL-4181A (2008) DFL-4251A (2008) DFL-4251A8-T31R-931-02 (2011) DFL-4251AXA Euro3 (2014) DFL4251A-T04-930-00CA (2007) EQ-1074 (2006) EQ4251W2 - 999Z (2007) L3251A3 (вар.) (2007)

Схема > Не выбрано ST 2096 STARTER TB 2666 SUPERCHARGER LAYOUT TH 2848 THERMOSTAT BASE LAYOUT SET TP 2973 SUPERCHARGER PIPELINE WI 2037 WATER INLET CONNECTING PIPE WM 2007 WATER DELIVERY MANIFOLD WO 2025 WATER OUTLET CONNECTOR WP 2778 WATER PUMP DRIVER WR 2229 ELECTRONIC CONTROL MODULE WIRING HARNESS AB 2011 ACCESSORY BRACKET AB 2038 ACCESSORY BRACKET AH 2025 AIR INTAKE PREHEATER AP 2430 PARAMETER PLATE BB 2952 CYLINDER BLOCK BR 2138 CRANKCASE VENTILATION PARTS CA 2078 AIR FILTER CONNECTION PIPE CC 2238 AIR COMPRESSOR COOLING WATER PIPE LAYOUT SET CD 2024 AIR COMPRESSOR EXHAUST PIPELINE CF 9762 AIR CONDITIONING COMPRESSOR CI 2784 AIR COMPRESSOR AIR INLET ARRANGEMENT CL 2034 CLUTCH CP 2182 AIR COMPRESSOR DA 2164 TORSIONAL VIBRATION ABSORBER PH 2996 PRESSURE SENSOR PP20292 FUEL INJECTOR PP20334 FUEL INJECTOR PIPELINE PP20421 CYLINDER HEAD PP20427 PISTON PP20431 CAMSHAFT PP20464 SUPERCHARGER RL 2759 ROCKER ARM RP 2062 ENGINE COOLANT DEGASSING PIPE SH 2054 HEAT SHIELD EC 2705 THERMOSTAT EE 2148 GENERATOR EH 2278 GENERATOR MOUNTING KIT EH 2869 GENERATOR DRIVE PARTS EM 9508 ENGINE FRONT MOUNTING BRACKET FA 2400 FAN DRIVER FD 2721 FUEL RETURN LINE FF 2361 FUEL FILTER FH 2443 FLYWHEEL HOUSING FI 2019 FUEL INLET DEVICE FP20001 FUEL PUMP FS 2059 OIL SUPPLY SYSTEM ACCESSORIES FW 2390 FLYWHEEL HC 2110 HEATER INSTALLATION HD 2068 POWER STEERING PUMP IC 2211 AIR INLET CONNECTION IM 2755 INTAKE MANIFOLD IT 2093 AIR OUTLET CONNECTOR LA 2133 ENGINE LIFTING EYE LB 2015 TAGS LC 2795 OIL COOLER LF 2120 FULL FLOW OIL FILTER LG 2251 OIL DIPSTICK LP 2734 OIL PUMP LT 2131 OPERATION AND MAINTENANCE MANUAL OP 2208 OIL PAN PH 2993 ENGINE CONTROL MODULE XS 2152 EXHAUST CONNECTION BB 2011 CYLINDER BLOCK CA 2081 AIR FILTER CONNECTION PIPE VC 2185 VALVE COVER ARRANGEMENT 1001B-H12B1 ENGINE FRONT MOUNT GROUP - VEHICLE 1001C-H12B1 ENGINE REAR MOUNT GROUP - VEHICLE 1109L-H12B0 AIR COMPRESSOR INTAKE PIPE GROUP-MOUNTED CHASSIS 1119B-H01A0 INTERCOOLER PIPE SET 1203B-H01A0 MUFFLER EXHAUST PIPE SET 1205C-H19C0 UREA TANK AND INSTALLATION SET 1205G-H19C0 UREA SUPPLY PIPELINE SET 1205H-H19C0 UREA TANK HEATING PIPE SET 1300B-H19D0 COOLING MODULE ASSEMBLY-RADIATOR, INTERCOOLER, ETC. 1302A-H12B0 RADIATOR MOUNTING SET 1311C-H12B0 DEGASSING CIRCULATION PIPELINE SET-MOUNTED VEHICLE 1601E-T01B0 CLUTCH HOUSING INSTALLATION SET 12 TX 2621 TD / ANCHORAGE 12 TX 2621 TD / ANCHORAGE 12 TX 2621 TD / ANCHORAGE SOFTWARE TYPE PLATE TYPE PLATE TYPE PLATE INPUT SHAFT INPUT SHAFT INPUT SHAFT INPUT SHAFT COUNTERSHAFT COUNTERSHAFT COUNTERSHAFT HELICAL GEAR HELICAL GEAR HELICAL GEAR HELICAL GEAR TRANSMISSION SHIFT SYSTEM BRAKE PUMP OIL SUPPLY GEARSHIFT SYST. GV CONTROL UNIT CONTROL UNIT CONTROL UNIT HOUSING GP HOUSING GP HOUSING GP HOUSING GP PLANETARY DRIVE PLANETARY DRIVE SYNCHRONIZER GP SYNCHRONIZER GP GEARSHIFT SYST. GP OUTPUT PNEUMATIC CONNECTION CLUTCH RELEASE DEVICE CONNECTION IMPULSRAD TECHNICAL COVER IT 3 AMT T ASSEMBLY GROUP OVERVIEW 12 TX 2621 TD EST 54 T ANCHORAGE SOFTWARE ASSEMBLY GROUP OVERVIEW HOUSING CONTROL UNIT CONTROL UNIT CONTROL UNIT RETARDER RETARDER HEAT EXCHANGER HEAT EXCHANGER WIRING WIRING 1703U-H03E1 TRANSMISSION CONTROL PIPELINE GROUP, VEHICLE 2201A-HA400 DRIVE SHAFT SET 2701C-H19C0 TRAILER VALVE BRACKET SET 2809E-C6201 FRONT LOWER PROTECTION DEVICE GROUP 2901B-H01A0 U-BOLT SET 2901D-HA410 LEAF SPRING PIN SET 2901M-HA410 LIFTING LUGS AND LIFTING LUGS PIN SET 2912A-H02B1 FRONT LEAF SPRING GROUP 2921B-H03E0 SHOCK ABSORBER GROUP - REAR AIR SUSPENSION 3103B-T0501 FRONT WHEEL NUT SET 3104B4-03 REAR WHEEL NUT ASSEMBLY 3105A-H01V0 SPARE TIRE RACK SET 3108A-H0103 WHEEL DECORATIVE COVER SET 3410A-TL380 POWER STEERING OIL TANK GROUP 3506Q-H18A0 HOSE AND HOSE BRACKET - THE INTERFACE BETWEEN THE FRAME AND THE CAB PIPE 3600F-H12B0 CIOM CHASSIS CONTROL UNIT GROUP 3632B-TL800 EBS SENSOR GROUP-MOUNTED CHASSIS 37241-H19C0 TRAILER VALVE WIRING HARNESS SET 37242-H02W0 CAB LOCK WIRING HARNESS SET 3724T-H03A1 GEARBOX ELECTRICAL SET-CHASSIS 3729A-H02E0 REAR LIGHT SET 3816C-TL380 AIR PRESSURE GAUGE SENSOR SET 3832A-H0100 AIR PRESSURE ALARM SENSOR SET 3833A-K0300 AIR FILTER CLOGGING INDICATOR SET 3904D-T09K1 CAR REAR SIGN SET 3919B-H01V0 VEHICLE TOOL KIT SET 5000M-C6101 HOLE PLUGGING SET FOR CAB TECHNOLOGY 5111B-C6100 FLOOR VIBRATION ABSORBING PAD SET 5402E-C6100 LEFT SIDE WALL TOP EXTERIOR DECORATION GROUP 5402F-C6100 RIGHT SIDE WALL TOP EXTERIOR DECORATION GROUP 5407C-C6200 LEFT TOOL BOX EXTERIOR DECORATION SET 5407D-C6200 RIGHT TOOL BOX EXTERIOR DECORATION SET 5411B-C6100 SIDE SHOCK ABSORBING PAD SET 5611B-C6200 REAR SHOCK ABSORBING PAD SET 5711B-C6200 TOP COVER VIBRATION DAMPING PAD SET 5603A-C6101 REAR WINDOW SET 5619A-C6100 REAR AIR INLET DEVICE SET 3714L-C6100 SIDE TOOL BOX LIGHTING SET 3721A-C6101 ELECTRIC SPEAKER SET 3721B-C6101 AIR HORN SET 3724I-C6303 DOOR WIRE HARNESS GROUP-LEFT 3724J-C6303 DOOR WIRE HARNESS SET-RIGHT 3724K-C6300 CEILING WIRE HARNESS SET 3724V-C6100 SMJ BOX AND MOUNTING SET 3724X-H0100 FRONT CHASSIS WIRING HARNESS GUARD SET-FOR COMPLETE VEHICLE 3725A-C6200 CIGARETTE LIGHTER SET 3726A-C6200 SIDE TURN SIGNAL SET-LEFT 3726F-C6200 SIDE TURN SIGNAL SET-RIGHT 3731A-C6100 FRONT SIDE LIGHT SET 3738D-C6101 USB POWER SOCKET SET 3739A-C6101 CAB LIFT CONTROL GROUP 3747A-C6100 WINDSHIELD WASHING DEVICE SET 5710B-C6210 TOP COVER SOUND INSULATION AND HEAT INSULATION GROUP 5810B-C6200 PASSENGER SEAT BELT SET 6103A-C6101 LEFT DOOR AND WINDOW SET 6103B-C6101 RIGHT DOOR AND WINDOW SET 6104A-C6100 LEFT WINDOW LIFT GROUP - ELECTRIC 6104B-C6100 RIGHT WINDOW LIFT GROUP - ELECTRIC 6105E-C6110 IGNITION LOCK AND DOOR LATCH SET 6105G-C6200 LEFT DOOR DOOR LOCK INSTALLATION SET-WITH DOOR LOCK SPARE PARTS 6105H-C6200 LEFT DOOR DOOR LOCK INSTALLATION SET-WITH DOOR LOCK SPARE PARTS 6107A-C6100 LEFT DOOR SEALING STRIP SET 6107B-C6100 RIGHT DOOR SEALING STRIP SET 6107C-C6101 LEFT DOOR SEALING STRIP GROUP-SIDE PANEL 6107D-C6101 RIGHT DOOR SEALING STRIP GROUP-SIDE PANEL 3750F-C6201 DIFFERENTIAL LOCK SWITCH SET 3750M-C6201 POWER SWITCH SET 3750P-C6200 ELECTRIC SUNROOF SWITCH SET 3750U-C6201 REAR LIGHT SWITCH SET 3760B-C6100 SIDE MARKER LIGHT SET-BODY 3774A-C6200 COMBINATION SWITCH SET 3775B-C6100 SPEAKER SET 3775C-C6100 LEFT DOOR SPEAKER SET 3775D-C6100 RIGHT DOOR SPEAKER SET 3776A-C6102 270-DEGREE SURROUND IMAGING SYSTEM 3839A-H0100 WATER LEVEL ALARM SENSOR SET 3600A-C6200 VECU VEHICLE ELECTRONIC CONTROL UNIT GROUP 3637A-C6107 TIRE PRESSURE MONITORING ELECTRONIC CONTROL UNIT GROUP 3723U-C6302 BODY AUXILIARY WIRING HARNESS GROUP - FRONT WINDSHIELD 3723V-C6200 BODY SUB-WIRE HARNESS INSTALLATION ACCESSORY SET - CABLE TIE THROUGH HOLE SHEATH 3735F-C6200 NEUTRAL RELAY GROUP 3735K-C6200 SPEAKER RELAY GROUP 3735L-C6200 ECU POWER RELAY GROUP 3735Z-C6200 UPWARD SUNROOF RELAY GROUP 3750J-C6200 ABS SWITCH SET 3751R-C6201 HILL HOLD SWITCH SET 5301G-C6203 PEDAL BRACKET SET 7611E-C6210 SLEEPER SUPPORT FRAME SET 7915C-C6201 SIDE DISPLAY PANEL 8101B-C6100 HEATING AIR DUCT SET 8204B-C6100 SUNSHADE SET 8403A-C6201 REAR LEFT FENDER SET-FRONT WHEEL 8403E-C6201 LEFT INNER LONGITUDINAL FENDER SET-FRONT WHEEL 8403F-C6201 RIGHT INNER LONGITUDINAL FENDER SET-FRONT WHEEL 8403G-C6200 LEFT WHEEL COVER SET 8403H-C6200 RIGHT WHEEL COVER SET 3600C-C6200 BODY NETWORK DOOR ELECTRONIC CONTROL UNIT GROUP - DRIVER SIDE, HANGING BODY 3724I-C6303 DOOR WIRE HARNESS GROUP-LEFT 3775C-C6100 LEFT DOOR SPEAKER SET 6103A-C6101 LEFT DOOR AND WINDOW SET 6104A-C6100 LEFT WINDOW LIFT GROUP - ELECTRIC 6105E-C6110 IGNITION LOCK AND DOOR LATCH SET 6105G-C6200 LEFT DOOR DOOR LOCK INSTALLATION SET-WITH DOOR LOCK SPARE PARTS 6107A-C6100 LEFT DOOR SEALING STRIP SET 1108A-C6101 ACCELERATOR PEDAL SET 1109K-C6200 AIR INTAKE PIPE SET-CAB 1311A-H12B0 EXPANSION TANK SET 3600C-C6200 BODY NETWORK DOOR ELECTRONIC CONTROL UNIT GROUP - DRIVER SIDE, HANGING BODY 3600D-C6200 BODY NETWORK DOOR ELECTRONIC CONTROL UNIT GROUP - PASSENGER SIDE, HANGING BODY 3615E-C6100 AMBIENT TEMPERATURE SENSOR GROUP 3629A-C6201 AIR SUSPENSION ELECTRONIC CONTROL UNIT GROUP - ECAS 3636B-C6101 ESC SENSOR SET-CAB 3600D-C6200 BODY NETWORK DOOR ELECTRONIC CONTROL UNIT GROUP - PASSENGER SIDE, HANGING BODY 3724J-C6303 DOOR WIRE HARNESS SET-RIGHT 3775D-C6100 RIGHT DOOR SPEAKER SET 6103B-C6101 RIGHT DOOR AND WINDOW SET 6104B-C6100 RIGHT WINDOW LIFT GROUP - ELECTRIC 6105E-C6110 IGNITION LOCK AND DOOR LATCH SET 6105H-C6200 LEFT DOOR DOOR LOCK INSTALLATION SET-WITH DOOR LOCK SPARE PARTS 6107B-C6100 RIGHT DOOR SEALING STRIP SET 5003B-C6100 FLIP CYLINDER MOUNTING GROUP - CAB 5101C-C6100 FLOOR FASTENING SET 5102B-C6201 FLOOR DECORATION SET 5102J-C6204 GEAR LEVER DECORATION SET 5104C-C6102 STEERING COLUMN SEAL SET 5109C-C6200 REMOVABLE FLOOR MAT SET 5110B-C6153 UNDERFLOOR INSULATION PAD SET 5205A-C6100 WIPER SET 5301J-C6200 FRONT WALL OUTER PANEL SET 3800A-C6201 INSTRUMENT CLUSTER 3870A-C6103 DRIVING RECORDER SET 7915B-C6203 MULTIMEDIA DISPLAY GROUP 7920F-C6200 INTERNET OF VEHICLES COMMUNICATION TERMINAL GROUP 8102A-C6200 HEATING AIR DUCT GROUP 5003A-C6101 FLIP CYLINDER GROUP 5005A-C6200 FLIP OIL PUMP SET 8101C-C6200 WARM AIR INLET AND OUTLET PIPE SET-VEHICLE 8105A-C6103 CONDENSER GROUP 3724N-C6200 BUMPER WIRING HARNESS SET 3732A-C6200 FRONT FOG LIGHT SET 3772A-C6203 FRONT COMBINATION LIGHT SET

04.500

04.510

Поз.	Артикул		Название детали	Кол-во	Цена
04.10	6093.304.079		Pinion shaft	1;	-
04.40	6093.204.008		Tapered roller bearing	1;	-
04.40.10	0735.372.115		Tapered roller bearing	1;	-
04.40.20	0735.300.376		Tapered roller bearing	1;	-
04.100	6093.304.089		Stator	1;	-
04.110	0634.349.849		O-ring	1;	-
04.120	0750.113.011		Rectangular ring	1;	-
04.200	6093.304.093		Rotor	1;	-
04.310	6093.304.134		Driver disc	1;	-
04.320	0636.102.995		Cap screw	1;	-
04.330	6093.304.034		Cross disc	1;	-
04.340	6093.304.135		Sealing washer	1;	-
04.350	6093.304.136		Sealing washer	1;	-
04.360	0630.502.030		Retaining ring	1;	-
04.500	0631.306.097		Cylindrical pin	1;	-
04.510	0631.306.097		Cylindrical pin	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
