Cab Rear mounting Group
/ DongFeng DFL-3251AW1

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

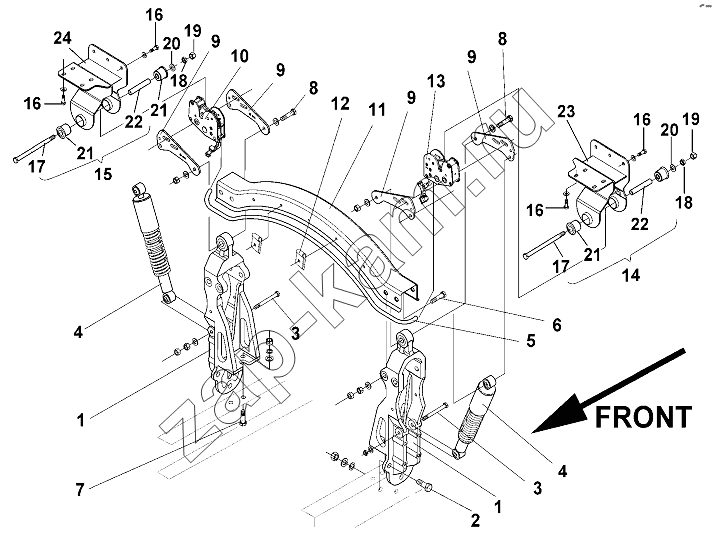

Схема/чертеж: Cab Rear mounting Group / DongFeng DFL-3251AW1
1
1
2
3
3
4
4
5
6
7
8
8
9
9
9
9
10
11
12
13
14
15
16
16
16
16
17
17
18
18
19
19
20
20
21
21
21
22
22
23
24
Поз. Артикул Название детали Кол-во Цена
Q151B0820-F7 Q151B0820-F7 Bolt 2; -
Q32118-0F7 Q32118-0F7 Nut 5; -
10384000 10384000 Bolt, rear mounting lower bracket 1; -
Q33512-F7 Q33512-F7 Nut 10; -
10383300 10383300 Bushing 1; -
10383100 10383100 Rubber sleeve assembly,upper support, rear mounting 2; -
Q40114-F7 Q40114-F7 Washer 1; -
Q341B14-F7 Q341B14-F7 Nut 1; -
Q351B14-F7 Q351B14-F7 Nut 1; -
10383400 10383400 Bolt- rear mounting upper bracket 1; -
Q341B08-F7 Q341B08-F7 Nut 2; -
Q40308-F7 Q40308-F7 Washer 2; -
Q40108-F7 Q40108-F7 Washer 2; -
Q32116-0F7 Q32116-0F7 Nut 4; -
10731100 10731100 Technological subassembly, Lower bracket assembly with rear mounting 1; -
Q341B18-0F7 Q341B18-0F7 Nut 1; -
QC41918-F7 QC41918-F7 Washer 1; -
Q40112-F7 Q40112-F7 Washer 18; -
Q1841660-0F7-J1 Q1841660-0F7-J1 Bolt 2; -
Q32216-0F7 Q32216-0F7 Nut 8; -
1 10383500 Lower support of rear mounting with rubber sleeve assembly 2; -
2 Q1851850-0F7-J1 Bolt 5; -
3 Q151B12125-F7 Bolt 2; -
4 10501200 Spring shock absorber assembly, rear mounting 2; -
5 10731300 Oil pipe assembly, left hydraulic latch to right hydraulic latch 1; -
6 Q1841655-0F7-J1 Bolt 6; -
7 Q1851650-0F7-J1 Bolt 4; -
8 Q151B1270-F7 Bolt 8; -
9 10383200 Connecting plate- rear mounting 4; -
10 10384400 Right hydraulic latch assembly 1; -
11 10731200 Cross beam, rear mounting 1; -
12 Q68614 Зажим 2; -
13 10384300 Left hydraulic latch assembly 1; -
14 10730700 Rear mounting left upper bracket with rubber sleeve assembly 1; -
15 10730900 Rear mounting right upper bracket with rubber sleeve assembly 1; -
16 Q1841030-0F7-J1 Bolt 14; -
17 10383400 Bolt- rear mounting upper bracket 1; -
18 Q351B14-F7 Nut 1; -
19 Q341B14-F7 Nut 1; -
20 Q40114-F7 Washer 1; -
21 10383100 Rubber sleeve assembly,upper support, rear mounting 1; -
22 10383300 Bushing 1; -
23 10730800 Left upper support assembly of rear mounting 1; -
24 10731000 Rear mounting right upper bracket assembly 1; -
