Instrument Panel Group
/ DongFeng DFL-3251AW1

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

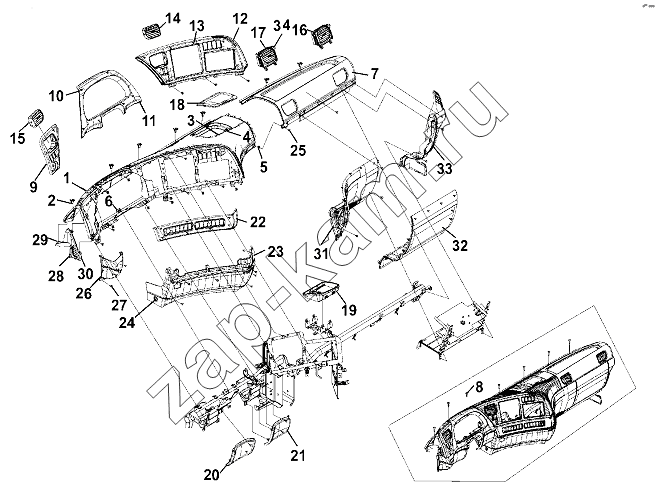

Схема/чертеж: Instrument Panel Group / DongFeng DFL-3251AW1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Поз. Артикул Название детали Кол-во Цена
11030100 11030100 Middle lower guard board sub-assembly, the passenger side instrumental panel 1; -
RQ2700512A RQ2700512A Винт 3; -
10116700 10116700 Spring clip 4; -
RQ2790616 RQ2790616 Винт 3; -
10116700 10116700 Spring clip 8; -
RQ2790616 RQ2790616 Винт 3; -
10116600 10116600 Spring clip 1; -
10116700 10116700 Spring clip 4; -
10934100 10934100 Right instrument cover assembly 1; -
10116700 10116700 Spring clip 4; -
11030000 11030000 Middle lower guard board sub-assembly, the driver side instrumental panel 1; -
10399800 10399800 Middle instrument cover assembly 1; -
10505200 10505200 Right block plate assembly,instrument panel 1; -
10116700 10116700 Spring clip 4; -
10116600 10116600 Spring clip 4; -
RQ2790616 RQ2790616 Винт 6; -
10106400 10106400 Nut 2; -
10505100 10505100 Lower guard plate craft sub-assembly 1; -
RQ2700625A-Z5 RQ2700625A-Z5 Винт 5; -
RQ2790616 RQ2790616 Винт 3; -
RQ2700512A RQ2700512A Винт 4; -
10504900 10504900 Left lower block plate assembly, instrument panel 1; -
RQ2790616 RQ2790616 Винт 2; -
10116600 10116600 Spring clip 8; -
10116600 10116600 Spring clip 5; -
1 10397000 Left body, instrument panel 1; -
2 10106400 Nut 5; -
3 10399500 Damping rubber nail 1; -
4 10399600 Lock pin 2; -
5 10116800 Nut, spring piece 9; -
6 Q32006 Гайка 1; -
7 10397100 Right body, instrument panel 1; -
8 RQ2700625A-Z5 Винт 2; -
9 10504200 Left instrument cover 1; -
10 10116700 Spring clip 6; -
11 10397300 Middle instrument cover 1; -
12 10504300 Right instrument cover 1; -
13 10116600 Spring clip 1; -
14 10114400 Right air outlet assembly, driver side 1; -
15 10114500 Left air outlet assembly, driver side 1; -
16 10114600 Right air outlet assembly, passenger side 1; -
17 10114700 Left air outlet assembly, passenger side 1; -
18 10397500 Fuse box cover 1; -
19 10397600 Fuse shield 1; -
20 10397700 Left knee guard board 1; -
21 10397800 Right knee guard board 1; -
22 10504400 Middle lower guard board, driver side instrument panel,A 1; 1 480 ₽
23 11029600 Middle lower guard board, driver side instrument panel,B 1; -
24 10116900 Snap 1; -
25 RQ2790616 Винт 2; -
26 10397900 Left lower block plate, instrument panel 1; -
27 RQ2790616-Z5 Винт 1; -
28 10398000 Right upper filling-up plate, instrumental panel 1; -
29 RQ2700516 Винт 2; -
30 RQ2720516 Винт 1; -
31 10504600 Middle lower guard board, instrument panel, passenger side 1; -
32 10398200 Lower guard plate, instrument panel passenger side 1; -
33 10398300 Right block plate,instrument panel 1; -
34 RQ2700512A Винт 3; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
