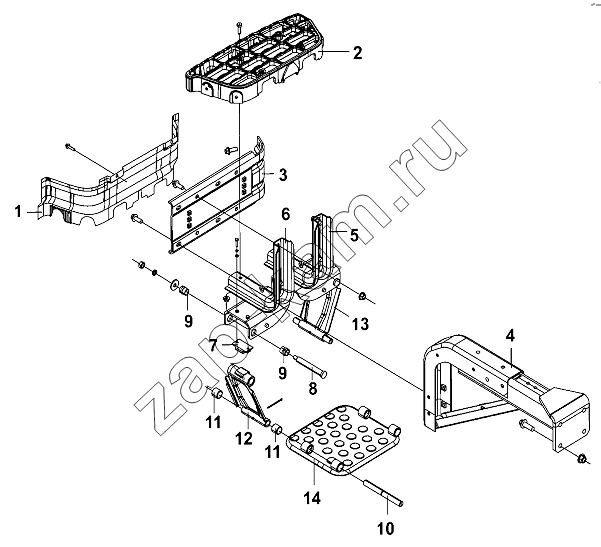

LH Pedal Plate Group, Complete Vehicle
/ DongFeng DFL-3251AW1

Тип техники

Марка

Модель

Схема

Поз.	Артикул	Название детали	Кол-во	Цена
10426300	10426300	Stop block welding assembly	1;	-
Q500B3250	Q500B3250	Шпилька	2;	-
10426900	10426900	Bushing	2;	-
10426800	10426800	Lower connecting shaft	1;	-
Q40310-F7	Q40310-F7	Washer	1;	-
Q40210-F7	Q40210-F7	Washer	1;	-
Q340B10-F7	Q340B10-F7	Nut	1;	-
Q40310-F7	Q40310-F7	Washer	1;	-
Q40210-F7	Q40210-F7	Washer	1;	-
Q340B10-F7	Q340B10-F7	Nut	1;	-
10426700	10426700	Bushing	2;	-
10426600	10426600	Upper connecting shaft	1;	-
Q1840520-F7	Q1840520-F7	Bolt	2;	-
Q1840520-F7	Q1840520-F7	Bolt	2;	-
10427100	10427100	Lower pedal craft suassembly	1;	-
Q1841025-F7	Q1841025-F7	Bolt	4;	-
Q1840620-F7	Q1840620-F7	Bolt	2;	-
Q150B0825-F7	Q150B0825-F7	Bolt	4;	-
Q32008-F7	Q32008-F7	Гайка	4;	-
Q1841025-F7	Q1841025-F7	Bolt	3;	-
Q1841025-F7	Q1841025-F7	Bolt	2;	-
Q32012-F7	Q32012-F7	Nut	4;	-
Q32010-F7	Q32010-F7	Nut	4;	-
Q1841025-F7	Q1841025-F7	Bolt	2;	-
Q1841025-F7	Q1841025-F7	Bolt	3;	-
Q1841235-F7	Q1841235-F7	Bolt	4;	-
1	10254600	Shroud, left lower pedal	1;	-
2	10425600	Left lower pedal	1;	-
3	10425800	Support beam assembly, door step,one stair	1;	-
4	10425900	Left connecting beam assembly, frame	1;	-
5	10426100	Bracket welding assembly	1;	-
6	10426200	Bracket welding assembly	1;	-
7	10426300	Stop block welding assembly	1;	-
8	10426600	Upper connecting shaft	1;	-
9	10426700	Bushing	2;	-
10	10426800	Lower connecting shaft	1;	-
11	10426900	Bushing	2;	-
12	10426500	Connecting bracket welding assembly	1;	-
13	10426400	Connecting bracket welding assembly, B	1;	-
14	10427000	Welding assembly, lower pedal	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
