Steering Transmission Device Group
/ DongFeng DFL-3251AW1

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

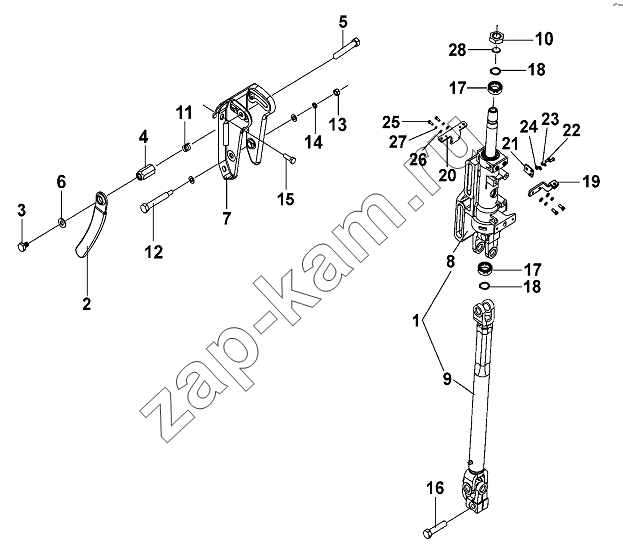

Схема/чертеж: Steering Transmission Device Group / DongFeng DFL-3251AW1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
Поз. Артикул Название детали Кол-во Цена
10478800 10478800 Steering transmission device with adjustor assembly 1; -
11116500 11116500 Seal cover 1; -
11116600 11116600 Sleeve 1; -
11116900 11116900 Steering universal joint fork 1; -
Q700B06 Q700B06 Straight-type grease nozzle 1; -
10479100 10479100 Steering universal joint with spline shaft assembly 1; -
11116200 11116200 Steering universal joint fork & spline shaft assembly 1; -
11116100 11116100 Spline shaft 1; -
10479900 10479900 Steering universal joint yoke, steering shaft 1; -
10480000 10480000 Cross shaft & bearing assembly 1; -
11116800 11116800 Steering universal joint yoke, steering gear 1; -
Q32010-F7 Q32010-F7 Nut 1; -
Q32010-F7 Q32010-F7 Nut 1; -
Q174B0410 Q174B0410 Bolt 2; -
Q40104 Q40104 Шайба 2; -
10053600 10053600 Bolt 1; -
Q340B08 Q340B08 Гайка 1; -
Q40308 Q40308 Пружинная шайба 1; 10 ₽ - 60 ₽
Q40108 Q40108 Плоская шайба 1; -
11116300 11116300 Slide fork assembly 1; -
10480000 10480000 Cross shaft & bearing assembly 1; -
11116700 11116700 Steering universal joint fork 1; -
10479000 10479000 Universal joint assembly, steering slide yoke 1; -
11116400 11116400 Oil seal 1; -
10479300 10479300 Steering shaft with anti-theft locking sleeve assembly 1; -
10478900 10478900 Steering column support 1; -
10053100 10053100 Guide gasket 1; -
10053500 10053500 Slide block 2; -
1 10479200 Steering transmitting device 1; -
2 10052700 Adjuster spanner assembly 1; -
3 10052800 Bolt 1; -
4 10052900 Nut 1; -
5 10053200 Bolt 1; -
6 10053300 Washer 1; -
7 10053400 Support assembly, angle adjuster of steering column 1; -
8 10052400 Steering shaft assembly 1; -
9 10479400 Steering universal joint with spline auxiliary assembly 1; -
10 Q351B20 Гайка 1; -
11 10053000 Spring 1; -
12 Q150B1045 Болт 1; -
13 Q340B10 Гайка 1; 100 ₽
14 Q40410 Шайба 1; -
15 Q1840825 Болт 4; -
16 Q1841045-F7 Bolt 1; -
17 10051900 Ball bearing 2; -
18 Q43125 Кольцо 2; -
19 10052100 Dust shield 1; -
20 10052200 Dust shield bracket 1; -
21 10052300 Fixing support of steering column tube 1; -
22 Q174B0410 Bolt 6; -
23 Q40304 Шайба 2; -
24 Q40104 Шайба 2; -
25 Q174B0512 Hexagon Cross Slotted Bolt 4; -
26 Q40105 Плоская шайба 4; -
27 Q40305 Пружинная шайба 4; -
28 10053900 Washer 1; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
