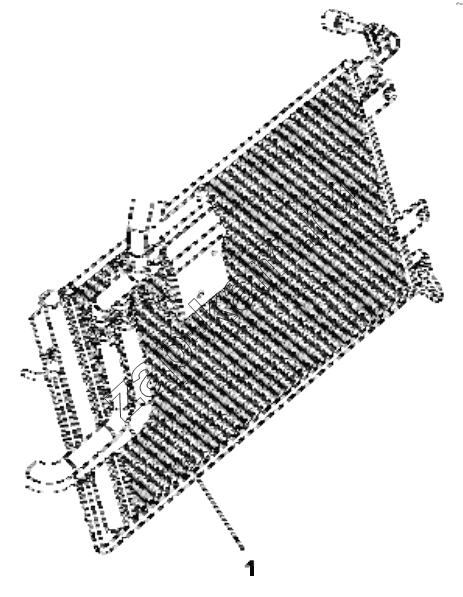

8105A-C0102 Condenser group
/ DongFeng EQ4251W2 - 999Z

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано DAF DongFeng FAW Foton HOWO IVECO JAC Motors MAN Shaanxi SITRAK Volvo Автокомпонент Плюс ЗИЛ КАЗ КамАЗ Мадара НефАЗ СЗАП Тонар УралАЗ

Модель Не выбрано DFH3410A563-L15R-930-00 (2023) DFH4180-HA40-000-A0 (2022) DFL-3250A1-K09-003-01 (2007) DFL-3251A (2008) DFL-3251A Euro3 (2008) DFL-3251AW1 (2013) DFL-3251AW1 (2017) DFL-3251AXA Euro3 (2008) DFL-4181A (2008) DFL-4251A (2008) DFL-4251A8-T31R-931-02 (2011) DFL-4251AXA Euro3 (2014) DFL4251A-T04-930-00CA (2007) EQ-1074 (2006) EQ4251W2 - 999Z (2007) L3251A3 (вар.) (2007)

Схема > Не выбрано 1000020-E2701 Engine assembly AP8480 Parameter plate group BB8171 Cylinder body group BB9213 Cylinder body pipeline connecting piece group BB9216 Cylinder body cooling circuit group BB9881 Gear compartment group BR9239 Crankcase ventilation group CC9297 Air compressor cooling water pipe group CF9118 Air conditioner driving piece group CF9148 Air conditioner subassembly CH9087 Coolant auxiliary connecting pipe group CL9079 Primary front bearing of transmission CP9590 Air compressor group DA9155 Torsional vibration damper group EA9089 Ground wire group EB9051 Exhaust brake group EC9702 Thermostat group EE9293 Generator group EH9591 Generator mounting piece group EM9223 Engine front suspension support group EO9104 Sensor assembly group FA9310 Fan driving piece group FA9739 Fan driving piece group FE9043 Supercharging compensator connecting pipe group FF9688 Fuel strainer group FF9689 Fuel strainer connecting line group FH9413 Flywheel casing group FP90370 FP90591 Fuel pump installation group and basic fuel pump group FP90545 Fuel pump group FS9891 Oil transfer pump assembly FT9190 Fuel pipeline group FV9387 Fuel cutoff magnet valve group FW9782 Flywheel group FW90025 Flywheel mounting piece group GG9804 Gear compartment mounting piece group GG9806 Gear compartment cover group HC9046 Heater mounting piece group HD9161 Hydraulic steering pump group IC9450 Intake connecting piece group IM9101 Intake manifold group LA9028 Engine lifting eye group LC9765 LF9130 Engine oil cooler and oil cleaner group LF9130 Oil cleaner group LG90191 Engine oil scale group LP9724 Engine oil pump group MS9067 Throttle control group OB9363 Cylinder body oiling accessory group OB9377 Cylinder body oiling accessory group OP9337 Oil pan group PA9001 Accessory driven pulley group PP40388 Performance part group PP98671 Supercharger group PP98698 Oil atomizer pipeline group PP98993 Cylinder cover pipeline group RL9774 Rocker arm group RP9042 Engine outlet pipe group SD9113 Water temperature sensor group SD9169 Pressure alarm sensor group SM9772 Starter mounting piece group ST9344 Starter group TB91272 Supercharger layout group TK9022 Torque transducer cooling group TP97236 Supercharger pipeline group VC9775 Air valve cover group WF9094 Water strainer group WI9145 Water inlet connecting pipe group WO9052 Water outlet connecting pipe group WP9101 Water pump group WP9916 Belt tightener group WP9963 Water pump accessory driving group 1001B-T0500 Engine front suspension group-entire vehicle 1001B-T0500 Engine front suspension group-entire vehicle 1001H-T0900 Engine auxiliary suspension group-entire vehicle 1101B-T0400 Fuel tank installation group 1101F-T0500 Fuel tank and installation subassembly group 1104A-T0400 Fuel supply pipe group-entire vehicle, main tank 1104B-T0400 Fuel supply pipe group- engine 1104C-T0400 Fuel return line group 1105B-T0400 Fuel preliminary filter installation group 1108K-T0500 Throttle control installation group- entire vehicle 1108N1-09 Control line auxiliary fixing line 1109A1-ZD2A Air filter subassembly 1109B1-ZD10 Air filter support subassembly 1109C-T0500 Intake pipe group- air filter to engine 1109J1-ZD2A Air filter blockage alarm 1109L-T0500 Air compressor intake pipe group 1118A1-ZB6 Intercooler subassembly 1118B1-ZB6 Intercooler fastener 1118C1-ZB7C Intercooler connecting piece and fastener 1119A1-ZB3 Diesel oil prefilter subassembly 1201010-T0400 Muffler group 1201B-T0900 Muffler assembly group 1203A-T0400 Muffler intake pipe group 1203G-T0500 Supercharger outlet connecting tube group 1204A-T0900 Exhaust system heat insulation group 1301A2-ZB6 Radiator subassembly 1302A-T0500 Radiator assembly group 1303A-T0400 Radiator inlet and outlet water pipe group 1308A-T0500 Fan group 1308B-T0500 Fan installation group 1309A-T0500 Fan cowl group 1309B-T0500 Fan wind screen group 1311A-T0500 Expansion tank group 1311B1-ZD10 Expansion tank fixing part 1311D-T0500 Air removal circulating pipe group-engine 1601A-ZB7C0 1601E-T0400 Clutch housing installation group 1606D-T0404 Clutch system steel tube group- entire vehicle 1606E-T0406 Clutch system hose group- entire vehicle 1608A-T0102 Clutch booster group 1700010-T0504 Speed changer with clutch system assembly T0504-DC12J-01 Primary and secondary shaft assembly T0504-DC12J-02 Intermediate shaft T0504-DC12J-03 Auxiliary shaft T0504-DC12J-04 Shift control subassembly T0504-DC12J-05 Clutch housing T0504-DC12J-06 Transmission housing T0504-DC12J-07 Rear cover T0504-DC12J-08 Roof cover 1703A-T0900 Shift control handle group 1703B-T0900 Shift control handle group 1703F-T0900 Shift control tension rod group - single rod 1703U-T0101 Shift control pipe group-entire vehicle 1712A-T0501 Lubricating oil cooler group 1712B-T0501 Lubricating oil cooling pipe group 2201A-T0400 Transmission shaft group 2202ZB7A-010 Transmission shaft with splined spindle fork assembly 2201010-T0400 Transmission shaft with splined spindle fork assembly 1001E-T0500 Engine rear suspension group- vehicle frame 1001G-T0500 Engine front suspension group- vehicle frame 1001J-T0500 Engine auxiliary suspension group-vehicle frame 2800010-T0400 Vehicle frame and bracket assembly 2801I-T0700 Cross beam group- front 2801P-T0800 Cross beam group- balance suspension 2801Q-T0800 Cross beam group- rear 2806A-T0100 Front tow hook group 831A-T0800 Cross beam group- secondary cross beam 2831B-T0800 Cross beam group- Third cross beam 2901A3-01 Cover plate subassembly 2901B3-ZB6 U bolt subassembly 2901C-T0400 Front steel plate suspension installation group- trailer frame 2901D3-01 Spring pin subassembly 2901E3-02 Lifting eye subassembly 2901H1-05 Vibration damper upper pin and fastener 2901I3-ZD10 Vibration damper lower support and lower pin group 2901J1-02 Vibration damper hoisting ring connecting rod 2902S1-ZB8A Stopper subassembly 2904A-T1400 Balance suspension connection group- cover plate, bolt 2904C-T0801 Balance suspension installation group- trailer frame 2904F-T0800 Balance suspension installation group 906A-T0500 Front transverse antisway bar group 2912A3-ZB6 Front plate spring subassembly 2913A3-ZB8A Rear plate spring group 2921A2-02 Vibration damper subassembly 2931B-ZB700 Rear thrust lever group 2701AC-01 Saddle chunk 2701B-T0400 Working stand group 2701C-T0800 Trailer valve bracket group 2701DC-ZB7 Guide rail subassembly 3000010-ZD100 Front axle assembly 001A3-ZB6 Front axle subassembly 3103A4-ZD10 Front wheel hub and brake drum group 3303A4-ZB6 Steering tie rod group 3501A1-ZB6 Front left brake group 3501B1-ZB6 Front right brake group 2400010-T0405 Rear axle system 3502ZAS03A-010 Rear left brake group 3502ZAS03A-015 Rear right brake group 2402ZS01P-010 Rear axle main reducing gear and bevel gear differential assembly 2500010-T0405 Intermediate axle system 3502ZAS03-010 Center left brake group 3502ZAS03-015 Center right brake group 2502ZAS03G-010 Intermediate axle main reducing gear ZAS03G-T0405 Intermediate rear axle subassembly 3101A-T0401 Wheel assembly group 3103B-T0500 Front wheel nut and tire bead group 3104B4-ZB3 Rear wheel nut subassembly 3105A8-ZD10 Spare tyre carrier subassembly 3106A-ZB3 Extension inflating valve group 3401A-T0100 Steering gear group 3401B-T0100 Steering gear installation group 3405A-T0500 Power steering pipe group 3410A1-07 Power steering oil tank group 3412A-T0100 Steering tension rod group 3412A-T0100 Steering tension rod group 2507B-ZB7C0 Betweencenters differential lock control pipeline group 3506001-T0402 Air brake pipe installation diagram 3513B-T0402 Front air vessel group 3513C-T0402 Rear air vessel group 3513G-T0402 Front and rear air vessel group 3522B1-ZB7 Trailer valve subassembly 3525A-T0402 Non-return valve group 3527B-ZB700 Differential valve group 3533A-T1400 Quick release valve group 3541A-T0400 Exhaust brake group 3542A-T0402 Load sensing valve group 3542B-ZB700 Load sensing valve tension rod subassembly 3543A-T0402 Air dryer group 3550A-T0100 Front ABS 3550B-ZB700 Rear ABS 3703A-T0401 Battery group 3721A6-ZD2A Electric horn group 3724A-T0405 Vehicle frame wiring harness group 3724B-T0400 Power supply line group 3724C-T0600 Ground wire group 3724E-T0400 Engine wiring harness group 3729A6-ZB6 Rear lamp group 3735B-ZB7C0 Starter relay group 3735C-T2201 Intake preheating relay group 3736A6-01 Power master switch group 3739A-T0100 Steering room lifting control group 3754A6-ZD2A Magnet valve subassembly 3760A-T0401 Side marker lamp group 3773A-T0401 Rear combination lamp group 3819B1-ZD2A Reverse alarm group 3827A-T0800 Fuel level sensor group 3833A-ZB7C0 Air filter blockage sensor group 3836A-T0100 Electronic odometer sensor group 3839A-T0500 Water-level alarm sensor group 3902B1-06 Jack group 3919B-T0500 Driver tool package group 5000012-C0326-03 Steering room assembly 1108A-C0100 Accelerator pedal group 1108C-C0100 Throttle acceleration transmission group 1108E-T0500 Throttle acceleration control line group 1108J-C0101 Idling throttle controller assembly 1109K-C0101 Intake inlet tube group-steering room 1602D-C0100 Clutch pedal group 1604A-C0100 Clutch master cylinder group 1606A-C0100 Oil tank group 1606C-C0100 Clutch system pipeline group- steering room 1703C5-ZD2A Transmission control support 3404A-C0101 Steering transmission group 3504A-C0100 Brake pedal group 3506R-C0301 Hand brake pipe group 3514A-C0100 Air brake valve group 3517A-C0101 Hand brake valve group 3621A-C0100 Speed changer electrical control unit group 3631A-C0101 ABS electrical control unit group 3638A-C0100 Compositive alarm controller group 3714A-C0300 Roof lamp group 3714B-C0100 Maintenance working lamp group 3714D-C0100 Step lamp group 3714G-C0301 Sleeper reading lamp group 3714H-C0300 Front reading lamp 3721B-C0300 Air horn group 3724D-C0326 Cab wiring harness group 3724J-C0100 Door wiring harness group 3724K-C0301 Ceiling wiring harness group 3724M-C0300 Front wall wiring harness group 3724N-C0101 Bumper bar wiring harness group 3724P-C0307 Steering room floor wiring harness group 3724Q-C0100 Wiring harness group under steering room floor 3724R-C0301 Sleeper reading lamp wiring harness group 3724Z-C0100 Front wall wiring harness frame cover group 3725A-C0100 Cigarette lighter group 3726A-C0100 Side turn light group 3726D-C0100 Steering foot lamp group 3731A-C0100 Front clearance lamp group 3732A-C0100 Front fog lamp group 3735A-C0302 Relay group- steering room 3735D-C0101 Flasher group 3735H-C0100 Exhaust brake interlocking relay group 3735M-C0100 Wiper relay group 3735N-C0100 Air conditioner heater relay group 3735Q-C0100 DBR relay group 3735S-C0100 Speed changer control relay group 3735W-C0100 Front fog lamp relay group 3735Y-C0100 Steering foot lamp relay group 3747A-C0100 Window washing device group 3750A-C0100 Rocker switch group 3750C-C0101 Preheating switch group 3750D-C0100 Door lamp switch group 3750E-C0100 Glass frame riser switch group 3750F-C0100 Differential lock switch group 3750H-C0100 Clutch stop lamp switch group 3750I-C0100 Clutch switch group 3750J-C0101 ABS switch group 3750R-C0100 Clutch switch group-for speed changer 3750T-C0100 Front fog lamp switch group 3750U-C0100 Rear lamp switch group 3751X-C0100 Switch blockage group-power rearview mirror switch 3751Y-C0100 Switch blanking cover group-rocker switch 3763A-C0100 Reflector group 3770C-C0100 Preheating controller group 3772A-C0100 Front combination lamp group 3774A-C0100 Combination switch group 3775A-C0300 Radio and tape player group 3800A-C0141 Combined meter group 3816C-C0100 Air pressure alarm sensor group 3819A-C0100 Buzzer group 3870A-C0102 Travel recording meter group 3910A-C0100 Fire extinguisher group 5000F-C0100 Front logo group 5000K-C0300 Steering room welding assembly link group 5000M-C0100 Steering room blind plate group for technology 5001A-C0300 Steering room front suspension group 5001B-C0300 Steering room rear suspension group 5001C-C0103 External steering room identification group- 375PS 5001E-C0400 External steering room identification group- Dongfeng logo (road vehicle) 5003A-C0302 Overturning oil cylinder group 5003B-C300 Overturning oil cylinder group- steering room 5005A-C0302 Overturning oil pump group 5005A-C0304 Overturning oil pump group 5101A-C0301 Floor welding group 5102B-C0101 Floor decoration group 5102J-C0105 Shift lever decoration group 5103A-C0109 Driver side glove box group 5103B-C0100 Passenger side glove box group 5104A-C0100 Steering wheel group 5104B-C0100 Steering post decoration group 5109A-C0105 Steering room carpet group 5110B-C0202 Heat insulation cushion group under floor 5111B-C0200 Floor cushion blocking group 5205A-C0100 Wiper group 5206A-C0101 Front window and gland strip group 5301C-C0100 Front wall face shield group 5301E-C0100 Front wall face shield mechanism group 5301J-C0300 Front wall lateral plate group 5301P-C0100 Front wall lower splash board group 5303A-C0104 Meter board glove box group 5305A-C0101 Meter frame group 5305B-C0102 Meter board group 5305C-C0100 Wiring harness frame cover group 5401A-C0300 Left side wall welding group 5401B-C0300 Right side wall welding group 5402A-C0205 Left side wall interior trim group 5402B-C0201 Right side wall interior trim group 5403A-C0101 Left side wall window group 5403B-C0101 Right side wall window group 5601A-C0300 Rear side wall welding group 5602A-C0201 Rear wall interior trim group 5603A-C0100 Rear window group 5701A-C0300 Roof welding group 5702A-C0302 Roof interior trim group 5703A-C0100 Louver assembly 5704A-C0300 Roof glove box group 5710B-C0300 Roof sound insulation group 5810A-C0100 Driver seat safety belt group 5810B-C0100 Passenger seat safety belt group 6101A-C0100 Left door welding group 6101B-C0108 Right door welding group 6101C-C0100 Door cushioning device group 6102A-C0105 Front left side door decoration group 6102B-C0105 Front right side door decoration group 6103A-C0100 Left door window group 6103B-C0100 Right door window group 6104A-C0101 Left glass frame riser group 6104B-C0101 Right glass 6105B-C0101 Right door lock group 6105E-C0105 Ignition lock and door lock subassembly group-with oil tank lock 6107A-C0100 Left door gland strip group 6107B-C0100 Right door gland strip group 6800A-C0102 Steering room seat group 6900A-C0102 Passenger seat group 7600A-C0202 Sleeper group 7600B-C0300 Upper sleeper group 7920A-C0101 GPS group 8101A-C0200 Heater group 8101B-C0100 Heater pipeline group 8101C-C0104 Heater outlet pipe group 8102A-C0200 Heater wind pipe group 8103A-C0201 Ventilating device group 8105A-C0102 Condenser group 8108A-C0104 Air conditioner pipeline group 8112A-C0101 Air conditioner control device group 8201A-C0100 Driver side external rearview mirror group 8201B-C0104 Passenger side external rearview mirror group 8201C-C0100 Driver side exterior rearview mirror installation group 8201D-C0100 Passenger side exterior rearview mirror installation group 8201E-C0100 Interior rearview mirror group 8203A-C0100 Ashtray group 8204A-C0101 Sun visor group 8204B-C0300 Sun shade group 8205A-C0300 Curtain group 8205B-C0300 Curtain sliding track group 8211A-C0101 Exterior armrest group 8211B-C0100 Interior armrest group 8219A-C0101 Lower viewing mirror group 8403A-C0303 Left rear mudguard group 8403B-C0305 Right rear mudguard group 8403C-C0100 Left front mudguard group 8403D-C0100 Right front mudguard group 8403E-C0200 Left interior mudguard group 8403F-C0200 Right interior mudguard group 8403G-C0200 Left wheel casing group 8403H-C0200 Right wheel casing group 8403J-C0200 Left wheel casing group- entire vehicle 8403K-C0200 Right wheel casing group- entire vehicle 8403L-C0300 Left sound panel group- entire vehicle 8403M-C0100 Right sound panel group- entire vehicle 8405A-C0101 Left foot pedal group- steering room 8405B-C0101 Right foot pedal group- steering room 8405C-C0101 Left foot pedal group 8405D-C0101 Right foot pedal group 8406A-C0100 Front bumper bar group 8510A-T0800 Left side apron board group 8510B-T0800 Right side apron board group 8511A-T04Y0 Compartment mudguard group

1

Поз.	Артикул		Название детали	Кол-во	Цена
8105135-C0102	8105135-C0102		Кронштейн в сбор	1;	-
8105130-C0102	8105130-C0102		Кронштейн в сборе	1;	-
8105120-C0102	8105120-C0102		Кронштейн в сборе	1;	-
8105125-C0102	8105125-C0102		Bracket Assembly	1;	-
Q150B0830	Q150B0830		Болт	4;	-
Q40108	Q40108		Плоская шайба	8;	-
Q40308	Q40308		Пружинная шайба	4;	10 ₽ - 60 ₽
Шайба пружинная Q40308 / КИТАЙ / Q40308 10 ₽ Болт шестигранный + шайба пружинная КПП Fastgear / Q150B0812+Q40308 40 ₽ Шайба пружинная / Q40308 60 ₽
1	8105010-C0100		Радиатор кондиционера в сборе	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
