Middle Axle Main Retarder
/ DongFeng L3251A3 (вар.)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

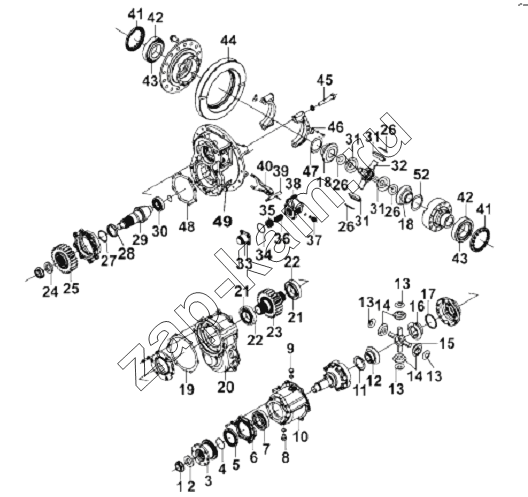

Схема/чертеж: Middle Axle Main Retarder / DongFeng L3251A3 (вар.)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
14
15
16
17
18
18
19
20
21
21
22
22
23
24
25
26
26
26
26
27
28
29
30
31
31
31
31
32
33
34
35
36
37
38
39
40
41
41
42
42
43
43
44
45
46
47
48
Поз. Артикул Название детали Кол-во Цена
2510ZHS01-410 2510ZHS01-410 Inter-axle Differential Assembly 1; -
Q40512 Q40512 Тяжелая пружинная шайба 8; -
Q151B1245-0H1 Q151B1245-0H1 Hexagon Bolt 8; -
2502ZHS01-084 2502ZHS01-084 Adjusting Washer ; -
2502ZHS01-083 2502ZHS01-083 Adjusting Washer ; -
2502ZHS01-082 2502ZHS01-082 Adjusting Washer ; -
2402ZHS01-384 2402ZHS01-384 Retaining Plate ­ Differential Bearing Cover 1; -
2402ZHS01-356 2402ZHS01-356 Bolt - Driven Bevel Gear 20; -
2402ZHS01-382 2402ZHS01-382 Adjusting Nut ­ Differential Bearing 1; -
2401ZHS01-028 2401ZHS01-028 Locating Pin 2; -
Q40512 Q40512 Тяжелая пружинная шайба 8; -
Q151B1245-0H1 Q151B1245-0H1 Hexagon Bolt 8; -
24N-01066 24N-01066 Уплотнительная шайба 1; -
24N-01066 24N-01066 Уплотнительная шайба 1; -
2502010-T1700 2502010-T1700 Middle Axle Main Retarder and Bevel Gear Differential Assembly 1; -
2510ZHS01-055 2510ZHS01-055 Oil Seal and Oil Seal Seat Assembly - Middle Axle Input End 1; -
1 2402ZHS01-072 Nut 1; -
2 2402ZHS01-071 Washer 1; -
3 2502ZHS01-065 Flange Assembly - Middle Axle Input End 1; -
4 2502ZHS01-038 O Ring - Flange 1; -
5 2510ZHS01-056 Oil Seal Assembly - Middle Axle Input End 1; -
6 2510ZHS01-057 Oil Seal Seat - Straight-through Shaft Input End 1; -
7 6315 Deep Groove Ball Bearing 1; -
8 24N-01072 Пробка сливного отверстия в сборе 1; -
9 24N-01065 Пробка отверстия уровня масла 1; -
10 2510ZHS01-411 Inter-axle Differential Case 1; -
11 2510ZHS01-426 Bush 1; -
12 2510ZHS01-435 Rear Gear and Bush Assembly 1; -
13 2510ZHS01-446 Backing Ring - Differential Gear 4; -
14 2510ZHS01-445 Planetary Gear ­ Inter-axle Differential 4; -
15 2510ZHS01-431 Spider - Inter-axle Differential Assembly 1; -
16 2510ZHS01-437 Rear Side Gear 1; -
17 2510ZHS01-438 Wearing Shim 1; -
18 2402ZHS01-335 Half Axle Gear - Bevel Gear Differential 2; -
19 2510ZHS01-422 Connecting Sleeve 1; -
20 2502ZHS01-102 Cylindrical Gear Cover 1; -
21 30222-2 Bearing Inner Race Assembly 2; -
22 30222-1 Bearing Outer Race 2; -
23 2510ZHS01-450 Driving Cylindrical Gear Assembly 1; -
24 24ZHS01-05067 Locating Sleeve 1; -
25 2502ZHS01-051 Driven Cylindrical Gear - Straight-through Axle 1; -
26 2402ZHS01-346 Shim ­ Differential Gear 4; -
27 32315 Tapered Roller Bearing 1; -
28 6216 Deep Groove Ball Bearing 1; -
29 2502ZH1827-025 Middle Axle Driving Bevel Gear 1; -
30 27314E Bevel Bearing - Driving Bevel Gear 1; -
31 2402ZHS01-345 Planetary Gear - Bevel Gear Differential 4; -
32 2402ZHS01-331 Spider ­ Bevel Gear Differential 1; -
33 25ZHS01-11023 Differential Lock Control Cylinder 1; -
34 25ZHS01-11017 O Ring 1; -
35 25ZHS01-11016 Differential Lock Piston 1; -
36 25ZHS01-11022 Spring 1; -
37 25ZHS01-11021 Sensor Assembly 1; -
38 25ZHS01-11011 Differential Lock Cylinder Cap 1; -
39 25ZHS01-11015 Shifting Fork Shaft 1; -
40 25ZHS01-11026 Shifting Fork - Shaft Differential 1; -
41 2402ZHS01-381 Adjusting Nut - Differential Bearing 1; -
42 32216-1 Bearing Outer Race 2; -
43 32216-2 Bearing Inner Race Assembly 2; -
44 2502ZH1827-026 Middle Axle Driven Bevel Gear 1; -
45 2402ZHS01-119 Locking Bolt 4; -
46 2402ZHS01-383 Retaining Plate ­ Differential Bearing Cover 1; -
47 2402ZHS01-336 Supporting Washer - Half Axle Gear 2; -
48 2502ZHS01-081 Adjusting Washer ; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
