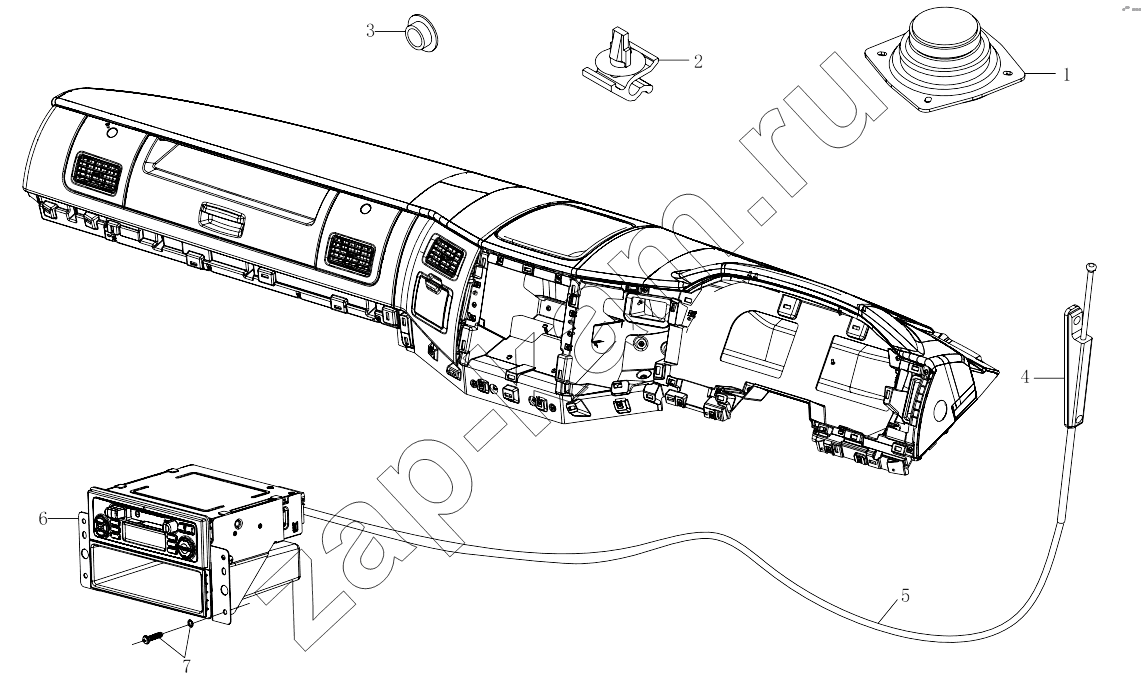

1SB2497910109 Audio device
/ Foton 3253DLPJE-0RZA01

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано DAF DongFeng FAW Foton HOWO IVECO JAC Motors MAN Shaanxi SITRAK Volvo Автокомпонент Плюс ЗИЛ КАЗ КамАЗ Мадара НефАЗ СЗАП Тонар УралАЗ

Модель Не выбрано 3253DLPJE-0RZA01 (2015) 4189SLFKA-AEZA01 (2012) BJ1039, BJ1049 (Aumark III) (2008) BJ1041, BJ1069 (Ollin) (2008) BJ1051, BJ1061 (Aumark) (2009) Foton-BJ1039 (2007) Foton-BJ1049 (2007) Foton-BJ1049 (2007) Foton-BJ1069 (2007) Foton-BJ1099 (2007) Foton-BJ3251DLPJB (2007) Оllin Express I (2008)

Схема > Не выбрано 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Single-cylinder air compressor 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Piston connecting rod 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Flame preheating system 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Oil pump 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Oil filter and oil cooler 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-intake system 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-cooling system 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Coupling 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-exhaust system 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-valve timing mechanism 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-fuel injection-pump and high-pressure oil pipe 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-cylinder head 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-cylinder block (II) 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-cylinder block (III) 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-cylinder block (I) 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-crankshaft flywheel 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-water pump 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-oil pump 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-fuel oil pipe 1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-tensioner 1S325313100H1 Radiator 1S325313300H1 Radiator hose 1S12511320103 Radiator suspension 1S32511110104 Fuel tank 1S32511140104 Fuel supply system pipeline, 1S32511150104 Fuel filter 1S32511190301 Air intake device-1 1S32511190301 Air intake device-2 1S12511200001 Air exhaust device 1S325322001H1 Propeller shaft (2,110X6,6X4) 1S325816100H1 Clutch device (WD) 1S32531620102 Clutch operation device 1S32531721501 Gearbox operation mechanism 1S32531751501 Gearbox suspension 1S32511010103 Power train assy suspension 1S42531630801 Clutch operation mechanism 1S42531730801 Gearbox operation mechanism 1S42531170701 Acceleration transmission device 1S42531181201 Acceleration transmision device-chassis(RHD) 1S32532920401 Front suspension (RHD) 1S32512950202 Rear suspension(reinforced) 1S12403110000 Wheel and tyre 1S325124002H1 Rear axle (5.73, widened, cast steel)-rear axle housing and main reducer (II) 1S325124002H1 (5.73, widened, cast steel)-rear axle housing and main reducer (I) 1S325124002H1 Rear axle (5.73, widened, cast steel)-rear axle brake 1S325124002H1 Rear axle (5.73, widened, cast steel)-hub reduction gear module 1S325125002H1 Intermediate axle (5.73, widened, cast steel)-hub reduction gear module 1S325125002H1 Intermediate axle (5.73, widened, cast steel)-intermediate axle brake 1S325125002H1 Intermediate axle (5.73, widened, cast steel)-intermediate axle main reduction and pass-through shaft 1S325125002H1 Intermediate axle (5.73, widened, cast steel)-intermediate axle assy including differential lock and shock absorber housing 1S32533000401 Front axle (7.5T, w/hand adjusting arm, RH knuckle arm)-1 1S32533000401 Front axle (7.5T, w/hand adjusting arm, RH knuckle arm)-2 1S32532801501 Frame assy 1S32513150101 Spare wheel carrier 1S32531030101 Protective device 1S32534031001 Front anti-collision and towing device 1S32534032001 Rear towing device 1S13813610001 Battery 1S32413660000 Switch 1S32533400401 Steering gear and accessories 1S52533420201 Steering drive device 1S32533620419 Chassis wire harness 1SB2493740419 Body wire 1SB2493751280 Relay control and body assy (for luxury vehicle model) 1S3253356F001 Braking pipeline-air dryer assembly (with muffler) 1S4253356A001 Brake pipeline-relay valve module 1S4253356B001 Braking pipeline-differential valve module-1 (Differential valve assy (foot braking)) 1S4253356B001 Brake pipe line-differential valve module-2 (Differential valve assy (hand braking)) 1S12533530001 Parking brake control device (cabin) 1S32533560006 Braking pipeline-chassis (non ABS)-2 1S32533560006 Braking pipeline-chassis (non ABS)-3 1S32533560006 Braking pipeline-chassis (non ABS)-4 1S32533561103 Braking pipeline, from air compressor to dryer module 1S32513561304 Braking pipeline-air reservoir module 1S32583564104 Braking pipeline-exhaust butterfly valve module 1S41703561500 Four-circuit protection valve assy 1S42533550002 Vacuum booster and brake master cylinder 1S11333644002 Front lamp (Chassis Portion) 1S32413650000 Rear lamps 1SB2493710113 Front wall lamps 1SB2206810501 Driver seat 1S42533540001 Pedal and hanger 1SB2493730408 Switch-body part 1SB2493760140 Instrument device 1SB2493780107 Electric accessories 1SB2495350503 Dashboard 1SB2497040502 Sleeper device 1SB2497910109 Audio device 1SB2498220101 Seat belt, 1SB2498250101 Fire extinguisher 1SB2495120501 Floor decorative fitting (RHD)-1 1SB2495120501 Floor decorative fitting (RHD)-2 1SB2498210502 Rear-view mirror 1SB2496150101 Door lock 1SB2496120603 Front side vehicle door accessories 1SB2496140101 Glass lifter mechanism(manual) 1SB2495000116 Vehicle body 1SB2495020302 Vehicle body tilting and locking mechanism (RH driving, self-unloading), (1B24950200199) Front Suspension Installation drawing 1SB2495020302 Vehicle body tilting and locking mechanism (RH driving, self-unloading), (1B24950240001) Tilting operation mechanism assy (RH) 1SB2495020302 Vehicle body tilting and locking mechanism (RH driving, self-unloading), (1B24950280026) Rear suspension assy 1S12413670000 Signal device 1S325139403H3 Nameplate (for ordinary export vehicle) 1SB2495062113 (AUMAN 9 290W) Body label-AUMAN 9 290W1SB2495061007, Vehicle mark (vehicle front mark ETX for export) 1SB2495310212 Bumper module 1SB2495310501 Front wall accessories-1 1SB2495310501 Front wall accessories-2 1SB2495410603 Side wall accessories 1SB2495610101 Rear wall accessories 1SB2495720404 Roof accessories 1SB2498240404 Visor device 1SB2498430212 Mudguard-frame 1SB2498430405 Mudguard-body part 1SB2498450403 Step board-body part 1SB2498450404 Step board-for dumping truck 1SB2495210101 Windshield parts 1SB2495250701 Wiper and scrubber 1SB2498110709 Heater 1S12413910000 Vehicle-born tools and accessories

1SB2497910109

1

2

3

4

5

6

7

Поз.	Артикул		Название детали	Кол-во	Цена
1SB2497910109	1SB2497910109		Audio device	1;	-
1	1B24979100030		Колонки	2;	-
2	1B24953100044		Зажим для провода	8;	-
3	1B24979100060		Кольцо защитное	1;	-
4	1B24979100040		Антенна автомобильная в сборе	1;	-
5	1B24979100070		Провод антенный	1;	-
6	1B24979100100		Radio & player assy	1;	-
7	Q2204216		Cross recessed pan head tapping screw and washer seaming	12;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
