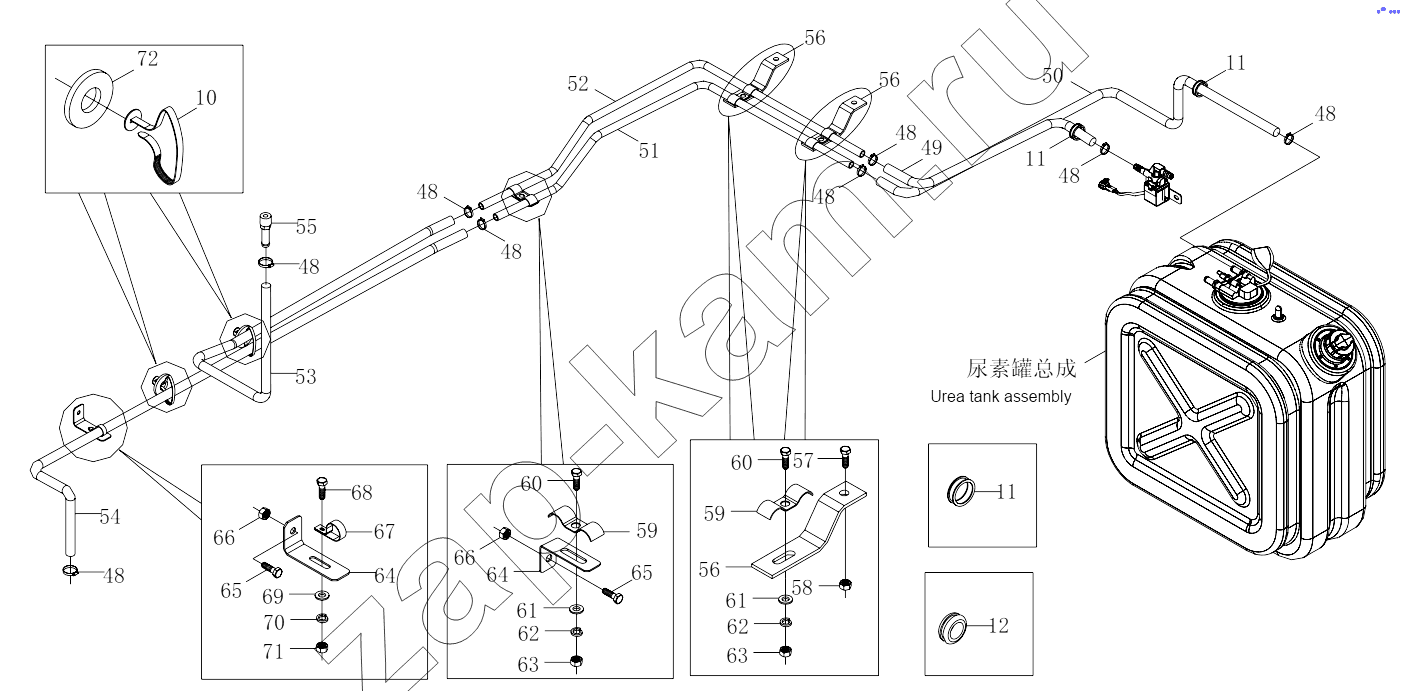

1S41891250201 Exhaust purifying device
/ Foton 4189SLFKA-AEZA01
10
11
11
11
12
48
48
48
48
48
48
48
48
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
56
56
56
56
57
57
58
58
59
59
59
59
60
60
60
60
61
61
61
61
62
62
62
62
63
63
63
63
63
63
64
64
64
64
65
65
65
65
66
66
66
66
66
66
67
68
69
70
71
72
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1S41891250201 | 1S41891250201 | Exhaust purifying device | 1; | - | |
| 1 | H4125300001A0 | Urea tank bracket assembly | 1; | - | |
| 2 | Q150B1475 | Hexagon head bolt | 4; | - | |
| 3 | Q33214 | Prevailing torque type all-metal hexagon nuts,style 2 | 4; | - | |
| 4 | H4125240001A0 | Urea tank assembly | 1; | - | |
| 5 | 1116712501032 | Urea tank cover assembly | 1; | - | |
| 6 | H4125320001A0 | Rubber pad | 2; | - | |
| 7 | H4125300006A0 | Pull belt assembly | 2; | - | |
| 8 | Q5101260 | Pin shaft | 2; | - | |
| 9 | Q5003230 | Split pin | 2; | - | |
| 10 | 1104936230070 | Круглая тесьма-завязка | 2; | - | |
| 11 | H4362080003A0 | Wire-threading sleeve | 2; | - | |
| 12 | 1115036100002 | Wire-threading sleeve | 2; | - | |
| 13 | H0125280002A0 | Drainage solenoid valve | 1; | - | |
| 14 | Q150B0825 | Болт | 2; | - | |
| 15 | Q40108 | Плоская шайба | 2; | - | |
| 16 | Q40308 | Шайба пружинная | 2; | 30 ₽ - 60 ₽ | |
| 17 | Q340B08 | Гайка | 2; | - | |
| 18 | 1116712501017 | Air filter | 1; | - | |
| 19 | Q150B0830 | Болт | 2; | - | |
| 20 | Q40108 | Плоская шайба | 2; | - | |
| 21 | Q40308 | Шайба пружинная | 2; | 30 ₽ - 60 ₽ | |
| 22 | Q340B08 | Гайка | 2; | - | |
| 23 | H4125300007A0 | Bracket, urea pump | 1; | - | |
| 24 | Q150B1440 | Болт | 2; | - | |
| 25 | Q33214 | Prevailing torque type all-metal hexagon nuts,style 2 | 2; | - | |
| 26 | 1116712501025 | Urea pump assembly | 1; | - | |
| 27 | Q150B0855 | Шестигранный болт | 4; | - | |
| 28 | Q40108 | Плоская шайба | 4; | - | |
| 29 | Q40308 | Шайба пружинная | 4; | 30 ₽ - 60 ₽ | |
| 30 | Q340B08 | Гайка | 4; | - | |
| 31 | H4125410001A0 | Water pipe | 1; | - | |
| 32 | H4125260001A0 | Urea tube | 1; | - | |
| 33 | H4125270001A0 | Urea tube | 1; | - | |
| 34 | H4125430001A0 | Intake pipe | 1; | - | |
| 35 | H4125250001A0 | Urea tube | 1; | - | |
| 36 | 1116712501029 | Urea nozzle assembly | 1; | - | |
| 36 | 1417035600187 | Хомут ленточный | 10; | - | |
| 37 | 1116712501026 | Temperature sensor | 1; | - | |
| 38 | 1116712501027 | Temperature sensor | 1; | - | |
| 39 | 1116712501028 | NOx sensor | 1; | - | |
| 40 | Q150B0825 | Болт | 2; | - | |
| 41 | Q40108 | Плоская шайба | 2; | - | |
| 42 | Q40308 | Шайба пружинная | 2; | 30 ₽ - 60 ₽ | |
| 43 | Q340B08 | Гайка | 2; | - | |
| 44 | 1325312560001 | Bracket, NOx ECU | 1; | - | |
| 45 | Q150B0825 | Болт | 2; | - | |
| 46 | Q40308 | Шайба пружинная | 2; | 30 ₽ - 60 ₽ | |
| 47 | Q40108 | Плоская шайба | 2; | - | |
| 48 | Q67522 | Хомут стяжной | 8; | - | |
| 49 | H4125410002A0 | Water pipe | 1; | - | |
| 50 | H4125410003A0 | Water pipe | 1; | - | |
| 50 | H4125410003A0 | Water pipe | 1; | - | |
| 51 | H4125410016A0 | Water return steel pipe | 1; | - | |
| 51 | H4125410016A0 | Water return steel pipe | 1; | - | |
| 52 | H4125410017A0 | Water inlet steel pipe | 1; | - | |
| 52 | H4125410017A0 | Water inlet steel pipe | 1; | - | |
| 53 | H4125410018A0 | Water intake pipe | 1; | - | |
| 53 | H4125410018A0 | Water intake pipe | 1; | - | |
| 54 | H4125410019A0 | Water return pipe | 1; | - | |
| 54 | H4125410019A0 | Water return pipe | 1; | - | |
| 55 | 1325312560003 | Water intake joint, engine | 1; | - | |
| 55 | 1325312560003 | Water intake joint, engine | 1; | - | |
| 56 | H4125400001A0 | Installation bracket, steel pipe | 2; | - | |
| 56 | H4125400001A0 | Installation bracket, steel pipe | 2; | - | |
| 57 | Q150B1425 | Hexagon head bolt | 2; | - | |
| 57 | Q150B1425 | Hexagon head bolt | 2; | - | |
| 58 | Q33214 | Prevailing torque type all-metal hexagon nuts,style 2 | 2; | - | |
| 58 | Q33214 | Prevailing torque type all-metal hexagon nuts,style 2 | 2; | - | |
| 59 | H4125400006A0 | Double pipe clamp | 3; | - | |
| 59 | H4125400006A0 | Double pipe clamp | 3; | - | |
| 60 | Q150B0630 | Болт с шестигранной головкой | 1; | - | |
| 60 | Q150B0630 | Болт с шестигранной головкой | 1; | - | |
| 61 | Q40106 | Плоская шайба | 1; | - | |
| 61 | Q40106 | Плоская шайба | 1; | - | |
| 62 | Q40306 | Шайба пружинная | 1; | - | |
| 62 | Q40306 | Шайба пружинная | 1; | - | |
| 63 | Q340B06 | Гайка | 1; | - | |
| 63 | Q340B06 | Гайка | 1; | - | |
| 64 | 1425135608093 | Single pipe clamp bracket | 2; | - | |
| 64 | 1425135608093 | Single pipe clamp bracket | 2; | - | |
| 65 | Q150B1435 | Болт | 2; | - | |
| 65 | Q150B1435 | Болт | 2; | - | |
| 66 | Q33214 | Prevailing torque type all-metal hexagon nuts,style 2 | 2; | - | |
| 66 | Q33214 | Prevailing torque type all-metal hexagon nuts,style 2 | 2; | - | |
| 67 | Q68620F4 | Скоба | 1; | - | |
| 68 | Q150B0630 | Болт с шестигранной головкой | 1; | - | |
| 69 | Q40106 | Плоская шайба | 1; | - | |
| 70 | Q40306 | Шайба пружинная | 1; | - | |
| 71 | Q340B06 | Гайка | 1; | - | |
| 72 | 1324035600052 | Резиновая прокладка | 2; | - | |
| 73 | H4312060010A0 | Washer | 3; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
