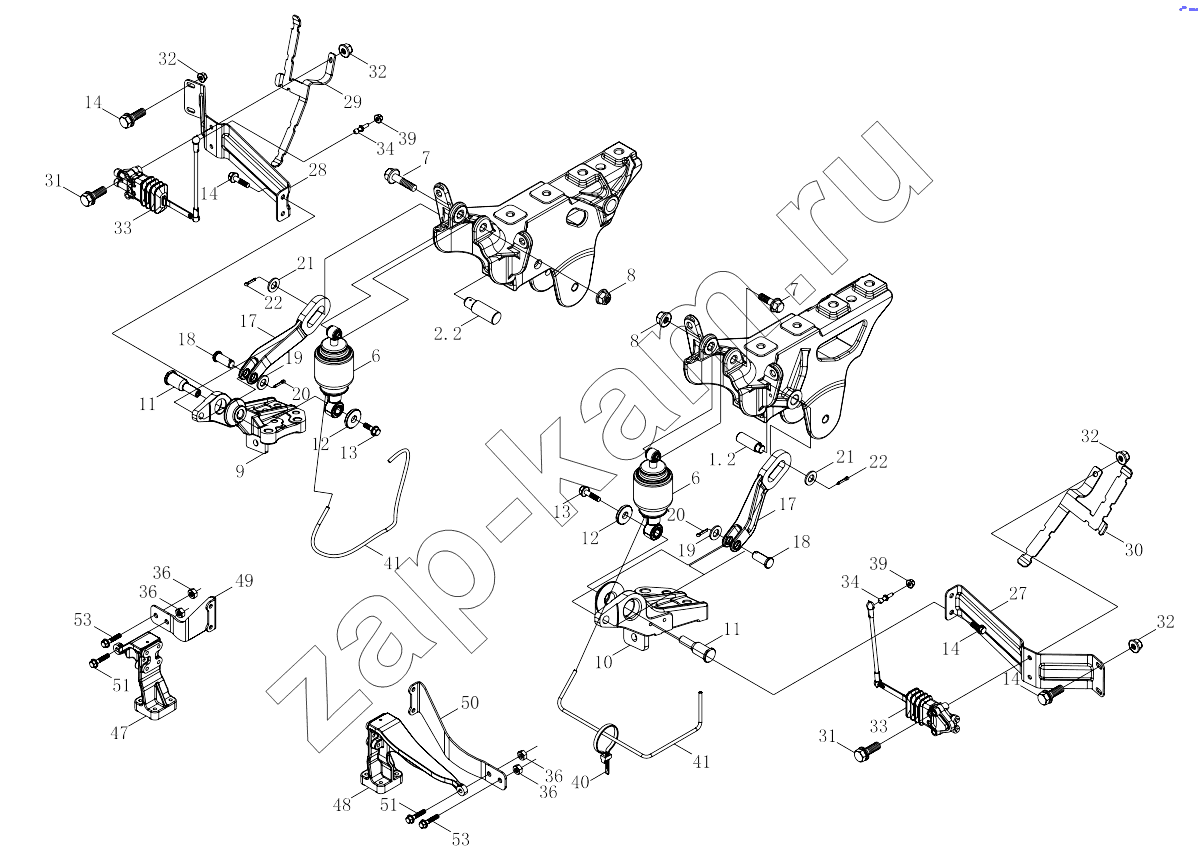

1SB248502A401 Front mounting system, body
/ Foton 4189SLFKA-AEZA01
27
34
34
33
33
32
32
32
32
31
31
30
29
28
36
36
36
36
22
22
21
21
20
20
51
51
50
49
48
47
19
19
41
41
40
39
39
2.2
1.2
6
6
7
7
8
8
9
10
11
11
12
12
13
13
14
14
14
14
17
17
18
18
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 27 | H4502A01063A0 | Bracket, leveling valve | 1; | - | |
| 35 | Q18616110TF2 | Hexagon flange bolt-oversize series | 2; | - | |
| 34 | H4502A01051A0 | Fixing ball, leveling valve | 2; | - | |
| 33 | H4502A01056A0 | Leveling valve assembly | 2; | - | |
| 32 | Q33008 | Гайка шестигранная с буртиком | 6; | - | |
| 31 | Q1460860 | Hex bolt, spring washer and flat washer assembly | 4; | - | |
| 30 | H4502A01061A0 | Bracket, thread guide, air tube, air spring | 1; | - | |
| 29 | H4502A01062фA0 | Bracket, thread guide, air tube, air spring | 1; | - | |
| 28 | H4502A01064A0 | Bracket, leveling valve | 1; | - | |
| 36 | Q33016T13F2 | Hexagon nut, style I | 6; | - | |
| 26 | H4502A01054A0 | Mounting pad, support | 8; | - | |
| 25 | H4502A01053A0 | Mounting bolt, support | 8; | - | |
| 24 | H4502A01034A0 | Reinforced support assembly | 1; | - | |
| 23 | H4502A01033A0 | Reinforced support assembly | 1; | - | |
| 22 | Q5005040 | Шплинт | 2; | - | |
| 21 | Q40216 | Шайба | 2; | - | |
| 20 | Q5005030 | Split pin | 2; | - | |
| 44 | Q33010 | Гайка шестигранная с буртиком | 2; | - | |
| 52 | Q1861480TF2 | Hexagon flange bolt-oversize series | 2; | - | |
| 51 | Q18616100TF2 | Hexagon flange bolt-oversize series | 2; | - | |
| 50 | H4502A01046A0 | Reinforced support, front suspension | 1; | - | |
| 49 | H4502A01045A0 | Reinforced support, front suspension | 1; | - | |
| 48 | H4502A01042A0 | Base, front suspension | 1; | - | |
| 47 | H4502A01041A0 | Base, front suspension | 1; | - | |
| 46 | Q33016 | Wmetallic locking nut,hexagon flange | 4; | - | |
| 45 | Q1861660 | Hexagon flange bolt-oversize series | 4; | - | |
| 19 | Q40116 | Плоская шайба | 2; | - | |
| 43 | Q1861070 | Hexagon flange bolt-oversize series | 2; | - | |
| 42 | Q33014 | Hexagon flange locking-nut, full metal | 4; | - | |
| 41 | H4502A01060A0 | Nylon tube-leveling valve to air spring | 2; | - | |
| 40 | Q67405100 | Пластмассовая протяжка | 14; | - | |
| 39 | Q33006 | Гайка шестигранная с буртиком | 2; | - | |
| 38 | Q40214 | Plain washer | 8; | - | |
| 37 | Q18614110 | Hexagon flange bolt-oversize series | 4; | - | |
| 1.7 | H4502A01019A0 | Support shaft, lift cylinder | 1; | - | |
| 2.7 | H4502A01019A0 | Support shaft, lift cylinder | 1; | - | |
| 2.6 | Q33016 | Wmetallic locking nut,hexagon flange | 2; | - | |
| 2.5 | H4502A01017A0 | Stopper | 1; | - | |
| 2.4 | H4502A01018A0 | Limit rod | 1; | - | |
| 2.3 | H4502A01016A0 | Stopper | 1; | - | |
| 2.2 | H4502A01015A0 | Supporting axle, guide | 1; | - | |
| 2.1 | H4502A01014A0 | Body, support | 1; | - | |
| 2 | H4502A01012A0 | Support assembly | 1; | - | |
| 3 | H4502A01020A0 | Stabilizer bar assembly | ; | - | |
| 1.6 | Q33016 | Wmetallic locking nut,hexagon flange | 2; | - | |
| 1.5 | H4502A01017A0 | Stopper | 1; | - | |
| 1.4 | H4502A01018A0 | Limit rod | 1; | - | |
| 1.3 | H4502A01016A0 | Stopper | 1; | - | |
| 1.2 | H4502A01015A0 | Supporting axle, guide | 1; | - | |
| 1.1 | H4502A01013A0 | Body, support | 1; | - | |
| 1 | H4502A01011A1 | Support assembly | 1; | - | |
| 1SB248502A401 | 1SB248502A401 | Front mounting system, body | 1; | - | |
| 4 | Q1861230 | Hexagon flange bolt-oversize series | 4; | - | |
| 5 | Q40112 | Плоская шайба | 4; | - | |
| 6 | H4502A01030A0 | Air spring assembly | 2; | - | |
| 7 | Q18614100TF2 | Hexagon flange bolt-oversize series | 2; | - | |
| 8 | Q33014T13F2 | Hexagon flange self-locking nut | 4; | - | |
| 9 | H4502A01043A0 | Holder, front suspension | ; | - | |
| 10 | H4502A01044A0 | Holder, front suspension | ; | - | |
| 11 | H4502A01035A0 | Tilting shaft | 2; | - | |
| 12 | H4502A01057A0 | Mounting pad, air spring | 2; | - | |
| 13 | Q1861430 | Hexagon flange bolt-oversize series | 2; | - | |
| 14 | Q1460820 | Болт с шестигранной головкой, пружинная шайба и плоская шайба | 6; | - | |
| 15 | Q1861665TF2 | Hexagon flange bolt-oversize series | 8; | - | |
| 16 | Q1861450TF2 | Hexagon flange bolt-oversize series | 6; | - | |
| 17 | H4502A01031A0 | Arm, support, guide | 2; | - | |
| 18 | H4502A01032A0 | Pin, arm, support, guide | 2; | - |
