1SB2485130402 Soundproof, insulating, damping, sealing devices
/ Foton 4189SLFKA-AEZA01

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

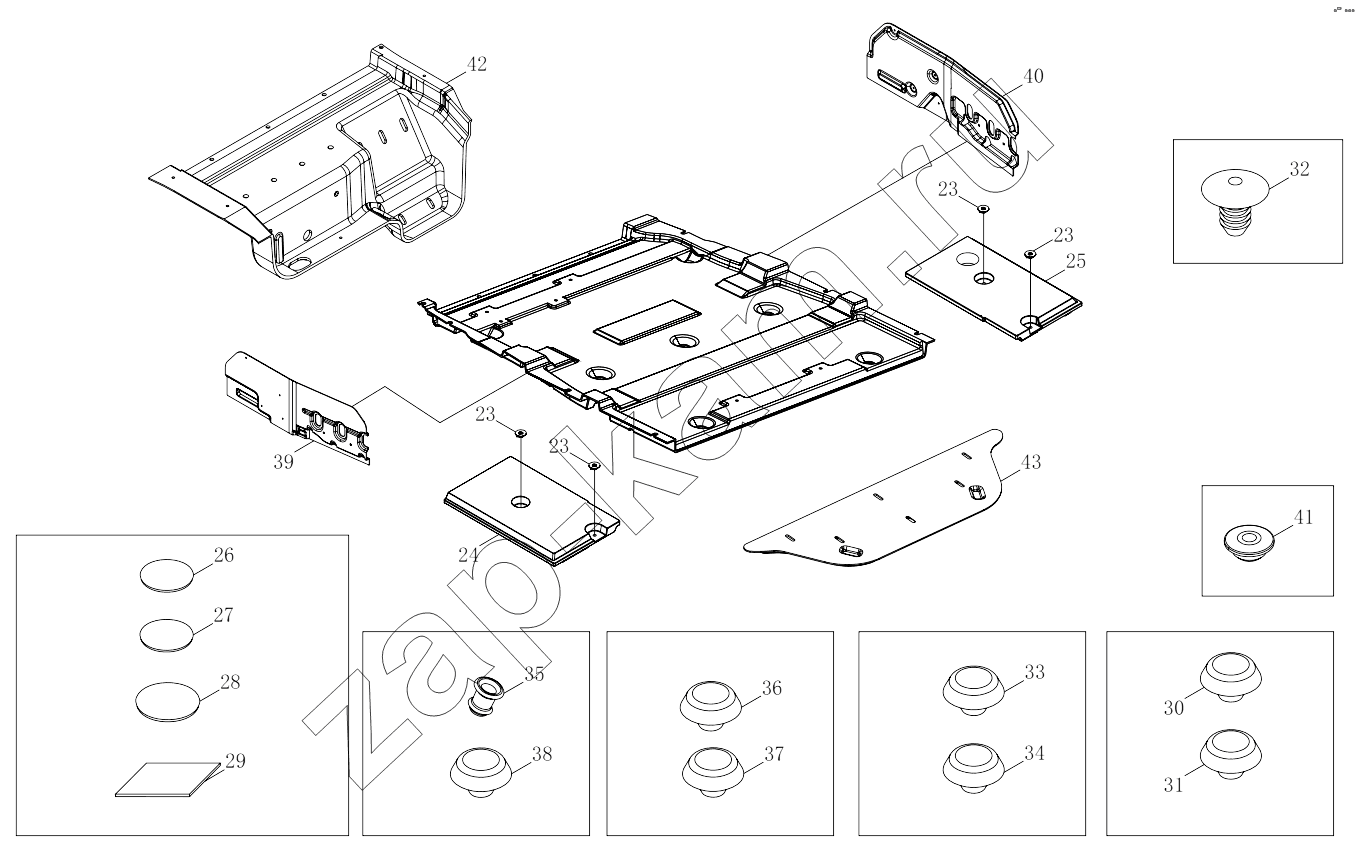

Схема/чертеж: 1SB2485130402 Soundproof, insulating, damping, sealing devices / Foton 4189SLFKA-AEZA01
1SB2485130402
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
Поз. Артикул Название детали Кол-во Цена
1SB2485130402 1SB2485130402 Soundproof, insulating, damping, sealing devices 1; -
1 Н4513020022А0 Heat insulator 12, high-top roof 1; -
2 Н4513020024А0 Heat insulator 14, high-top roof 1; -
3 Н4513020019А0 Heat insulator 9, high-top roof 1; -
4 Н4513020021АО Heat insulator 11, high-top roof 1; -
5 Н4513020023А0 Heat insulator 13, high-top roof 1; -
6 Н4513020020А0 Heat insulator 10, high-top roof 1; -
7 Н4513020017А0 Heat insulator 7, high-top roof 1; -
8 Н4513020018А0 Heat insulator 8, high-top roof 2; -
9 Н4513020016А0 Heat insulator 6, high-top roof 1; -
10 Н4513020014А0 Heat insulator 4, high-top roof 1; -
11 Н4513020011АО Heat insulator 1, high-top roof 1; -
12 Н451302001ЗАО Heat insulator 3, high-top roof 1; -
13 Н4513020012А0 Heat insulator 2, high-top roof 1; -
14 Н4513020015А0 Heat insulator 5, high-top roof 1; -
15 Н4513010011А0 Sound insulator 1, front wall 1; -
16 Н4513010012А0 Sound insulator 2, front wall 1; -
17 Н4513010013А0 Sound insulator 3, front wall 1; -
18 Н4513010014А0 Sound insulator 4, front wall 1; -
19 Н4513010015А0 Sound insulator 5, front wall 1; -
20 Н4513010017А0 Sound insulator 7, front wall 1; -
21 Н4513010016А0 Sound insulator 6, front wall 1; -
22 Н4513024102А0 Drum bag heat insulation pad 1; -
23 Н4513040016А0 Insulation mat button 43; -
24 Н4513010004А0 Sound insulator, floor 1; -
25 Н4513010003А0 Sound insulator, floor 1; -
26 Н4513040001АО Hole sticker 60, floor 8; -
27 Н4513040003А0 Hole sticker 25, floor 70; -
28 Н4513040002А0 Hole sticker 35, floor 16; -
29 Н4513040021АО Hole sticker 100, floor 2; -
30 Н4513040025А0 Block cover, panel, rear wall 4; -
31 Н4513040006А0 Block cover, panel, rear wall 2; -
32 Н4513040007АО Block cover, welded nut hole, rear wall 4; -
33 Н4513040008А0 Block cover, rear section, floor 8; -
34 H4513040009A0 Block cover, front panel 2; -
35 H4513040010A0 Double-layer rubber plug, rear wall 1; -
36 H4513040011A0 Block cover 1, side member, floor 2; -
37 H4513040012A0 Block cover 2, side member, floor 2; -
38 H4513040013A0 Block cover, side frame, floor 8; -
39 H4513014002A0 Acoustic board, wheel housing 1; -
40 H4513014001A0 Acoustic board, wheel housing 1; -
41 1K16951200804 Rubber plug 4; -
42 H4513024001A0 Heat insulator, wheel housing 1; -
43 H4513024003A0 Heat insulator, wheel housing 1; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
