Chassis Electric
/ HOWO Howo A7 8x4

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано DAF DongFeng FAW Foton HOWO IVECO JAC Motors MAN Shaanxi SITRAK Volvo Автокомпонент Плюс ЗИЛ КАЗ КамАЗ Мадара НефАЗ СЗАП Тонар УралАЗ

Модель Не выбрано Howo Howo A7 8x4 Howo cnhtc-huaxin (2010) Sinotruck (полный) Sinotruk 4x2 Tractor (371) Sinotruk 6x4 Tipper (290) Sinotruk 6x4 Tipper (336) Sinotruk 6x4 Tipper (371) Sinotruk 6x4 Tractor (371) Sinotruk 6x6 Tipper (336) Sinotruk 8x4 Tipper (336) Sinotruk 8x4 Tipper (371) ZZ3327N3647C-N2WA ZZ3407S3867E-PA103709 ZZ4257N3247N1B_A7_D12_380

Схема > Не выбрано Improved suspension assemble Truck cab Length Driving cab with door (improved suspension) Front wall and radiator cover HOWO Instrument assemby Cab Fender assemby Cab Tool box Cab door accessories HOWO cab door lock, oil tank cover and igite lock rod assemby Cab windows HOWO long cab front suspension (coil spring / 320sus / highway) Driver seat (high seat back) HOWO chair assemby (right) HOWO long driving cab saft belt HOWO long driving cab Noise and heat insulation plate of Cab Cab window glasses HOWO Driving cab washer device Roof glove box Roof window cover device Rearview mirror assemby Rearview and Down mirrors assemby MP3 and audio receiver and player HOWO driving cab electrical equipment Rear lamps HOWO Driving cab lift device Air conditioner device (SINOTRUK connector) HOWO driving cab windows washing assemby HOWO driving cab sunshine protection device Cab interchangeable part HOWO air guide sleeve holed seal graph HOWO Dump Truck Bumper assemby & traction device HOWO logo 08 vision HOWO/8X4/length front wheels fender assemby Air inlet system (length cab) Inner Refrigerant compressor & belt HOWO intercooler assemby 400L D-type oil tank & oil pipes (HOWO7/ Eruo в…ў electronic fuel injection engine/16Г—2 oil pipes/rough filter/8Г—4) Electric accelerate assemby Engine bracket assemby (HOWO7/8X4/8+7/8+4/90 fender/rear PTO /Motor 12mm/gradient 1.2В°) Transmission auxiliary support (leaf leaf structure / 300-850 frame) HOWO Engine accessories left Power sign (375 H.P.) Transmission front beam assemby Transmission front beam assemby Countershaft assemby Main shaft composite member Idle gear composite member Gears composite member Gears composite member (Electromagnetic transducer) Input shaft assemby & end cover composite member 10-Gears switch cover composite member Shaft fork assemby Cast iron transmission Double head bolt Clutch hydraulic pressure sssist device HW18710 transmission flexible shaft operate device Oil pump and pipe component Pneumatic tube valve component (develop) Clutch operate part Transmission operate device Electric switch assemby Electric switch assemby Sign component Mid axle drive device(i=5.73,XSП†180,outputXSО¦165,cast axle) Three part forged rear-bridge house (1850, brake) Three part forged rear-bridge house (1850, brake) Three part forged rear-bridge house (1850, broad brake) The first axle of the doule front axle (HR9,short axle distance,no ABS,with cover) The first axle of the doule front axle (HR9,medium-long axle distance,no ABS,with cover) HOWO 8x4 first axle steer tie rod HOWO 8x4 second axle steer tie rod Steering pull ring Disc brake (ZZ30A001 L/R) Steering device (ZF8118) Steering device absorber A7 rear suspensionпј€850, 8+8, 300high frame, cast axle, cast beam) HOWO 8x4 front suspension (multiple leaf spring, pre 9 tonnes front axle) HOWO 8x4 load truck absorber Truck mounted concrete mixer stabilizer (850 frames) Front axle stabilizer (HOWO) Over volts warning device 09-vision Central control system (VDO) 09-vision HW7C truck electric device (ST double bridge) Wire connector box nameplate 240-320 H.P. 6x4/6x6 chassis Electric Chassis Electric HOWO front lamps Sorage battery HOWO battery box assembly Rear lamp Wire (145/75) Wheel differential & Axle differential wire (80) Frame wire (900) Starting motor cathode connection wire (740) HW7C09 vision PTO Electrical appliances (850cm) Motor Starting wire (3100) HW7C cab wire Engine exhaust brake and operate device Differential lock between the two axle operate device Air seat operate device Double air horn operate device Differential lock between the two wheel operate device Auxiliary gas module NG12/6-NG8 Auxiliary gas module part (5 pugs) Transmission gas operate device Transmission lock work cyclinder Brake air chamber (mid-rear axle) 6X4/6X6 Brake system air supply device Driving cab brake device HW8X4 chaiss brake device Steyr doubel axle brake device HOWO doubel front axle brake device HOWO combine step operate assemby (new switch/common rail) Front wheel cover &Wheel bolt assemby Rear locating spare wheel bracket (Frame width 850, 90 wing width, 8.5 wheel, rotate arm rear locate) 991-1491 semi-trailer truck pull hook HOWO rear light bracket assemby

1

2

3

4

5

6

7

8

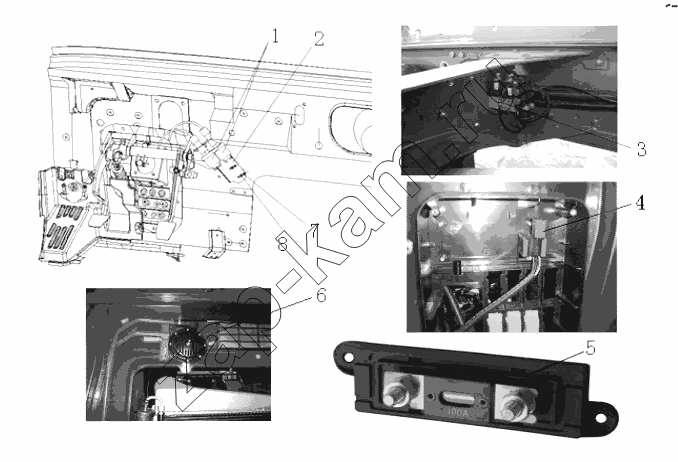

Поз.	Артикул		Название детали
1	WG9727710002		Electronic barometric sensor	2
2	WG9725710004		Stand	1
3	WG9719710004		Magnetic valve	3
4	WG9725584002		Relay	1
5	WG9725580006		Автомат 10А	1
6	WG9718710002		Электрический звуковой сигнал	1
7	Q214062OF31		Cross flute screw	2
8	Q40306		Пружинная шайба	2
9	Q1460825		Болт	1
10	Q340B08		гайка	1
11	WG9100710004		Выключатель контрольной лампы воздушного давления	2
12	Q150B08190		Hex bolt	2
13	Q40308		Пружинная шайба	2
14	Q340808		гайка	2
15	Q2140410		Crosss crew	1
16	Q40304		Пружинная шайба	1
17	Q40104		Шайба	1
18	Q15080620		болт	2
19	Q40306		Пружинная шайба	2
20	Q40106		Шайба	2
21	340806		I shape hexagonal nut	2

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
