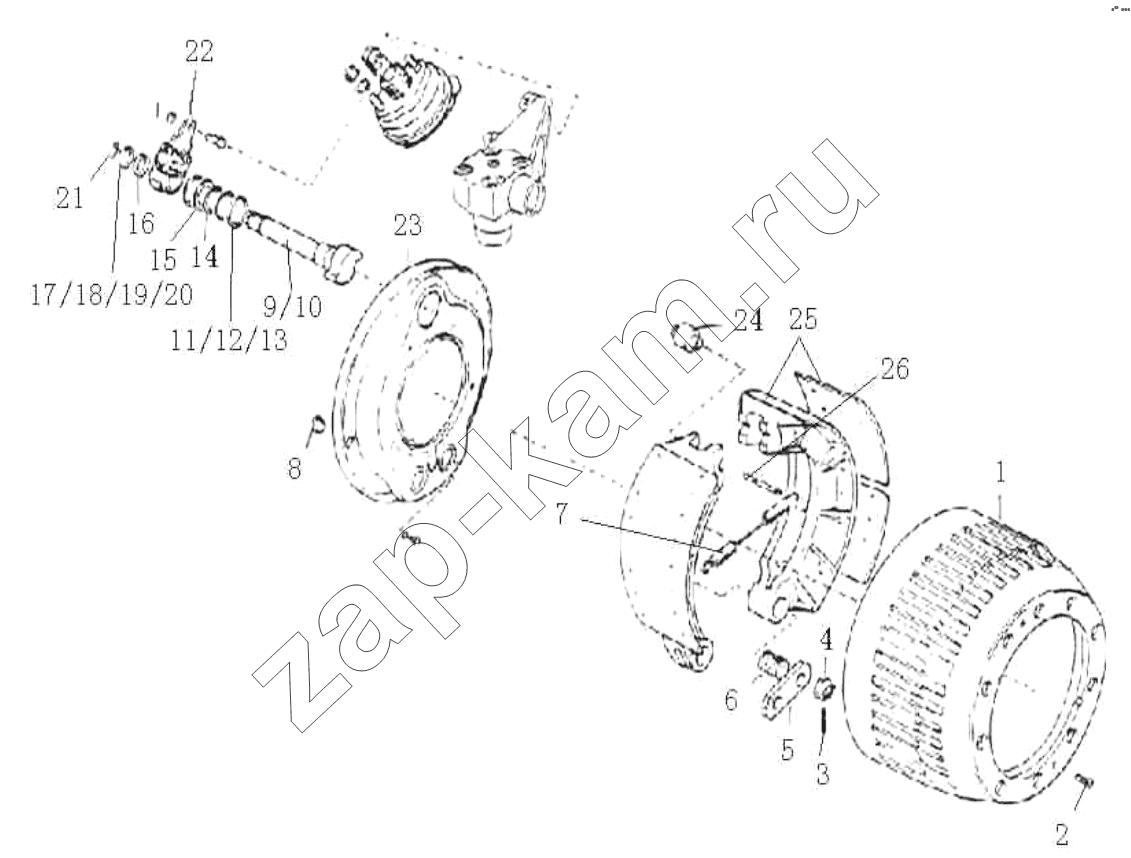

Brake System
/ HOWO ZZ3327N3647C-N2WA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | WG9112440001 | Brake drum | 2; | - | |
| 2 | Q2541025 | Болт | 4; | - | |
| 3 | Q5005045 | Шплинт | 4; | - | |
| 4 | 190003872369 | Гайка | 4; | - | |
| 5 | WG880440008 | Plate | 2; | - | |
| 6 | WG880440006 | втулка | 4; | - | |
| 7 | AZ9100440061 | Return spring | 2; | - | |
| 8 | WG880340037 | O-ring | 4; | - | |
| 9 | WG9100440001 | Camshaft-left | 1; | - | |
| 10 | WG9100440002 | Camshaft-right | 1; | - | |
| 11 | WG880440010 | Shim | 4; | - | |
| 12 | WG9100440011 | Washer | 4; | - | |
| 13 | WG9100440012 | Washer | 4; | - | |
| 14 | WG880340023 | O-ring | 4; | - | |
| 15 | WG880440015 | Sleeve | 2; | - | |
| 16 | WG880340022 | Washer | 2; | - | |
| 17 | WG80 320028 | Washer | 1; | - | |
| 18 | WG80 320029 | Washer | 1; | - | |
| 19 | WG80 320030 | Washer | 1; | - | |
| 20 | WG80 320046 | Washer | 1; | - | |
| 21 | 190003933116 | Стопорное кольцо | 2; | - | |
| 22 | WG9100440023 | Автоматический регулятор зазора | 2; | - | |
| 23 | WG9112440006 | Dustproof cover | 2; | - | |
| 24 | WG9100440021 | Roller | 4; | - | |
| 25 | WG9100440030 | Brake shoe assy | 4; | - | |
| 26 | WG1218G85 | Spring pin | 4; | - | |
| 27 | Q150B0818 | болт | 2; | - | |
| 28 | Q33408 | Гайка | 2; | - | |
| 29 | Q40308 | Пружинная шайба | 8; | 10 ₽ - 60 ₽ | |
| 30 | Q150B0812 | болт | 8; | 30 ₽ - 60 ₽ | |
| 31 | WG9100349994 | Automatic clearance adjustme | 1; | - | |
| 32 | WG9100349995 | Automatic clearance adjustme | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
