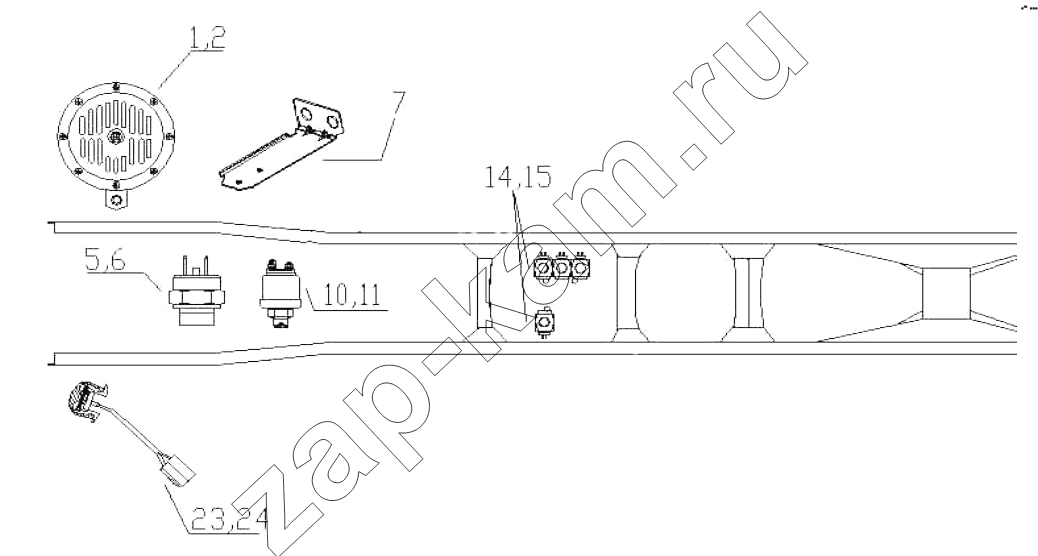

Chassis Electric Device 2
/ HOWO ZZ3327N3647C-N2WA

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано DAF DongFeng FAW Foton HOWO IVECO JAC Motors MAN Shaanxi SITRAK Volvo Автокомпонент Плюс ЗИЛ КАЗ КамАЗ Мадара НефАЗ СЗАП Тонар УралАЗ

Модель Не выбрано Howo Howo A7 8x4 Howo cnhtc-huaxin (2010) Sinotruck (полный) Sinotruk 4x2 Tractor (371) Sinotruk 6x4 Tipper (290) Sinotruk 6x4 Tipper (336) Sinotruk 6x4 Tipper (371) Sinotruk 6x4 Tractor (371) Sinotruk 6x6 Tipper (336) Sinotruk 8x4 Tipper (336) Sinotruk 8x4 Tipper (371) ZZ3327N3647C-N2WA ZZ3407S3867E-PA103709 ZZ4257N3247N1B_A7_D12_380

Схема > Не выбрано Cab AssСѓ Cab Body Front Cover Assy Dashboard Fender Tool Box Door Accessories Cab door lock ignition lock core Long cab window Angle Long before the cab engine mount Left seat Right seat Safety Belt Long a sleeper cab long cover cab lined Floor Lining Heat retaining panel Long cab glass Window wiper On groceries box Cold roof window cover device View Mirror Radio Electric Equipment Cab lifting device Рђir conditioning plant The cab window scrubber Sun Visor Car cabin corrosion resistance (cold) Cab using commonstandard spare Cab guiding device installing hole seal Fender Engine heat preservation device Cab Front Support Trademark Trademark Cylinder Block Assy Fly wheel housing & Screw Gear case Cylinder block Belt pulley Flywheel and Screw Crankshaft and Flywheel Connecting Rod and Piston Cylinder Head Valve-Gear Mechanism Bracket Fan-О¦640 Flange Thermostat assy Oil Pump and Oil Filter Fuel Supply System Flange Oil pressure sensor Wire clip Electrical preheater Electric control part Wirning harness Alternator & Starter Pipe - oil return Tube Air Filter System Turbo supercharger Compressor Oil Pan Air Filter System Refrigeration compressor and belt Exhaust System Fuel Tank & oil pipe Electronic throttle system Engine Mounting Transmission auxiliary support Accessory case Oil Filter The sign of the engine power Nameplate Transmission Front Housing Transimission Housing-Middle Input Shaft and Cover Lay Shaft Main Shaft Idle Wheel Sub Gearbox Small Cover Fork Shaft Cast iron shell transmission stud DE-9 soft shaft controlling device Pump and Pipe Air Pipe and Valve Shifting Accessories Electric switch components Sign components 09 version 6x4 transmission auxiliary support Clutch assy Stud DE-9 soft shaft controlling device Propeller Shaft 1st Rear Axle Drive Rear Axle Drive (i=5.73,XSП†180) 1st Rear Axle Housing Rear Axle Housing Front Axle Tie rod assy Brake System Front Suspension Rear Suspension Front Shock Absorber Front Stabilizer Rear Stabilizer Electric Control System Over Voltage Alarming Device Electric Control System(VDO) Vehicle Speed Sensor Nameplate Electric Equipment Chassis Electric Device 1 Electrical preheater Chassis Electric Device 2 Chassis Electric Device 3 Chassis Electric Device 4 Headlamp Battery 180AH Battery Box ABS wire Diff. Lock Wireness Chassis Wireness Cab Wireness-ABS Wireness Starter Wirene Cab Wireness Wireness Engine Exhaust Brake System Interaxle Diff. Control System 1 Interaxle Diff. Control System 2 Clutch Brake Gas control devices Air distributor block Seat Air System Gearbox Air System Operating Cylinder of Differential Lock Valve Brake Actuator Brake Actuator Silencer Air pipe-compressor Automatic antifreezing pumping Single front axle brake ABS (disc) Brake Device In Cab Double brake device PTO gas control devices Chassis Frame Assy Wheel and Tire Towing Hook Wheel Cover and Screw Cap lubricating grease lubricating oil

1

3

5

7

10

14

23

Поз.	Артикул		Название детали	Кол-во	Цена
1	WG9718710002		Электрический звуковой сигнал	1;	-
3	Q1460825		Болт	1;	-
4	Q340B08		гайка	1;	-
5	WG9100710004		Выключатель контрольной лампы воздушного давления	2;	-
7	AZ9725710001		кронштейн	1;	-
8	Q150B0616		болт	2;	-
9	Q40306		Пружинная шайба	2;	-
10	WG9130713001		Датчик воздушного давления	2;	-
12	Q41212		Стопорная шайба	2;	-
13	Q40112		Шайба	4;	-
14	WG9719710004		Magnetic valve	4;	-
16	Q150B0875		Screw	2;	-
17	Q150B08190		Hex bolt	2;	-
18	Q40308		Пружинная шайба	4;	10 ₽ - 60 ₽
Шайба пружинная Q40308 / КИТАЙ / Q40308 10 ₽ Болт шестигранный + шайба пружинная КПП Fastgear / Q150B0812+Q40308 30 ₽ Шайба пружинная / Q40308 60 ₽
19	Q340B08		гайка	4;	-
20	190003962019		Болт	3;	-
21	199000360477		Прокладка	3;	-
22	1288730061		Кольцо круглого сечения	3;	-
23	WG9725716001		Evb switch	1;	-
25	Q2714216		Болт	2;	-
26	Q39748202		Пистон	2;	-
27	WG9725580100		Starter relay	1;	-
29	Q150B0625		болт	2;	-
30	Q340B06		гайка	4;	-
31	Q40106		Шайба	2;	-
32	Q40306		Пружинная шайба	2;	-
33	WG9725580021		Diode assembly	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер

Дополнительная информация

×

Название:

Номер:

Примечание:
