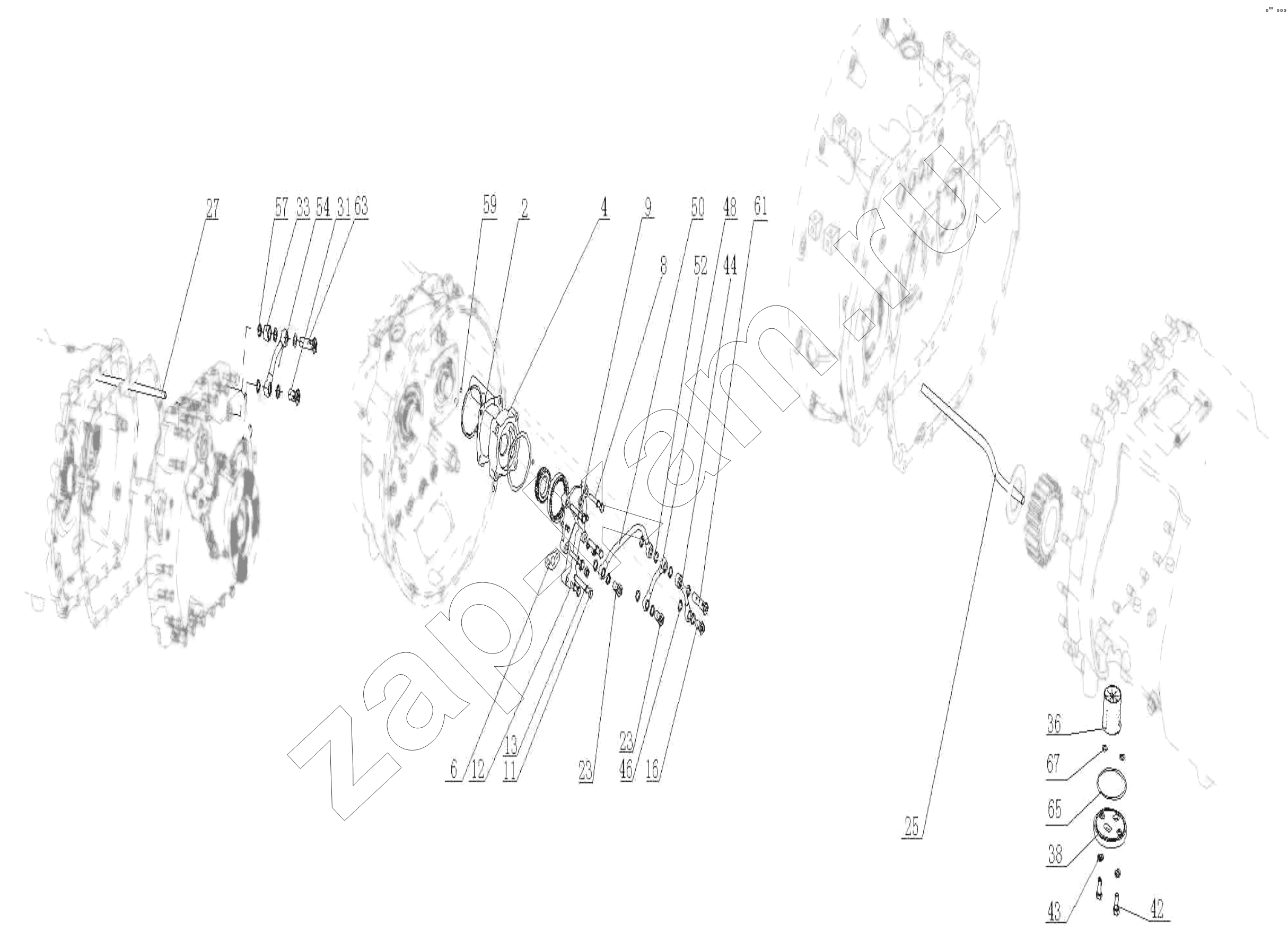

Pump and Pipe
/ HOWO ZZ3327N3647C-N2WA
2
4
6
8
9
11
12
13
16
23
23
25
27
31
33
36
38
42
43
44
46
48
50
52
54
57
59
61
63
65
67
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 2 | WG2229000002 | Shaft end cover gasket | 1; | - | |
| 4 | WG2203240005 | Oil pump assemby | 1; | - | |
| 6 | WG2229240003 | Paper gasket | 1; | - | |
| 8 | Q150B1070 | Hex bolt | 4; | - | |
| 9 | Q40110 | Шайба | 2; | - | |
| 10 | AZ9007970242 | Glue | 1; | - | |
| 11 | Q150B1090 | Hex bolt | 1; | - | |
| 12 | Q150B1040 | Hex bolt | 1; | - | |
| 13 | Q40310 | Пружинная шайба | 4; | - | |
| 16 | 190003962627 | Пустотелый болт | 1; | - | |
| 23 | 190003962627 | Пустотелый болт | 2; | - | |
| 25 | WG2229240107 | Tube | 1; | - | |
| 27 | WG2229240108 | Tube | 1; | - | |
| 31 | 190003962627 | Пустотелый болт | 1; | - | |
| 33 | WG2229240010 | Shealth | 1; | - | |
| 36 | WG2203240007 | Filter bracket | 1; | - | |
| 38 | WG2222240005 | End plate | 1; | - | |
| 42 | Q150B0822 | болт | 2; | - | |
| 43 | Q40308 | Пружинная шайба | 2; | 10 ₽ - 60 ₽ | |
| 44 | WG2203240011 | Output oil assemby | 1; | - | |
| 46 | WG9004130016 | Seal washer | 2; | - | |
| 48 | WG2203240012 | Hose assemby | 1; | - | |
| 50 | WG2203240013 | Hose assemby | 1; | - | |
| 52 | WG9004130016 | Seal washer | 8; | - | |
| 54 | WG2203240014 | Input oil assemby | 1; | - | |
| 56 | AZ2203240014 | Pipe assy-oil in | 1; | - | |
| 57 | WG9004130016 | Seal washer | 5; | - | |
| 59 | WG9003338000 | Steel ball | 1; | - | |
| 61 | WG9003961670 | Hollow bolt | 1; | - | |
| 63 | WG9003961650 | Hollow bolt | 1; | - | |
| 65 | WG9003077100 | O ring | 1; | - | |
| 67 | WG9003070085 | O ring | 2; | - |
