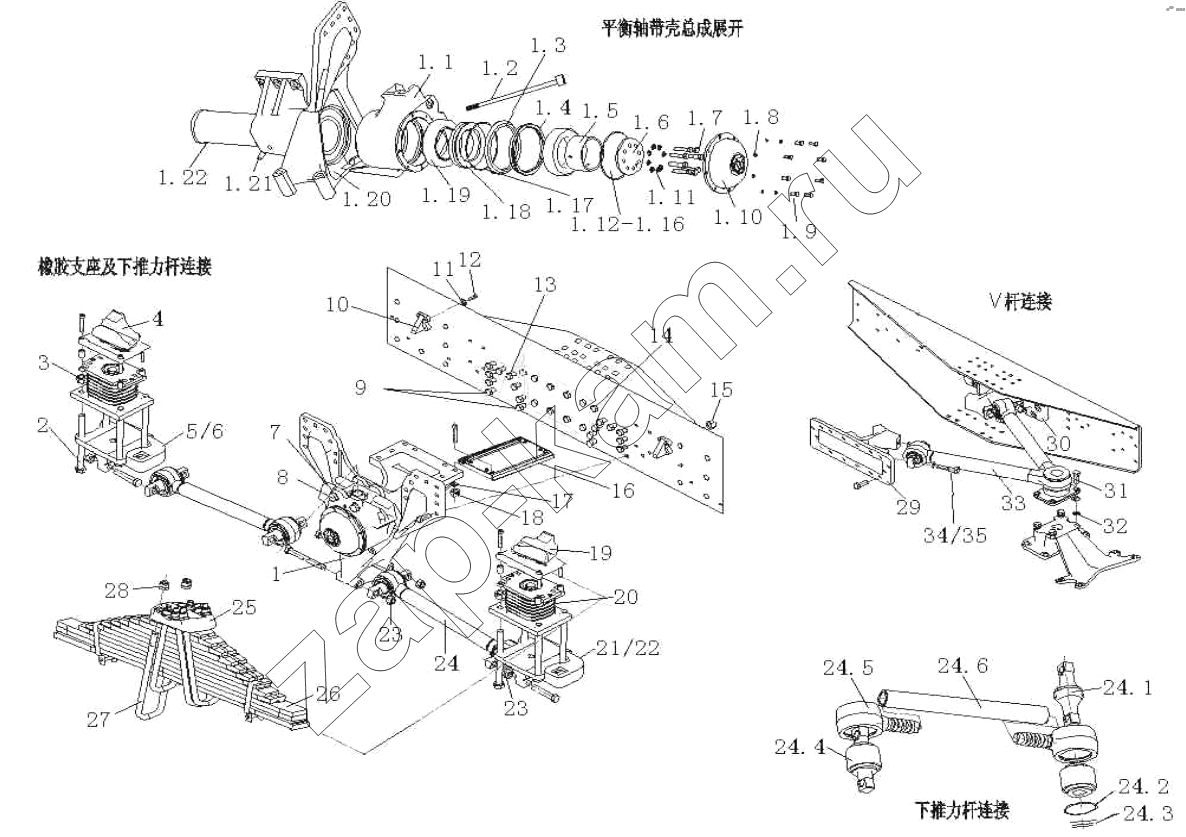

Rear Suspension
/ HOWO ZZ3327N3647C-N2WA
1
1.10
1.1
1.11
1.12
1.16
1.17
1.18
1.19
1.20
1.2
1.21
1.22
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
24.2
24.3
24.4
24.6
25
26
27
28
29
30
31
32
33
34
35
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | AZ9925520310 | Balance axle with axle assemby | 2; | - | |
| 1.10 | WG9014520311 | Cover | 1; | - | |
| 1.1 | WG9925520235 | Balance axle housing | 1; | - | |
| 1.11 | Q40314 | Пружинная шайба | 6; | - | |
| 1.12 | WG9014520192 | Fix washer | 1; | - | |
| 1.13 | WG9014520193 | Fix washer | 1; | - | |
| 1.14 | WG9014520194 | Locate washer | 1; | - | |
| 1.15 | WG9014520303 | Fix washer | 1; | - | |
| 1.16 | WG9114520059 | Fix washer | 1; | - | |
| 1.17 | WG614 130062 | Sealing ring | 1; | - | |
| 1.18 | WG9725520136 | Oil sealing cover | 1; | - | |
| 1.19 | WG9114520042 | Шарикоподшипник | 2; | - | |
| 1.20 | AZ9925520233 | Bracket | 1; | - | |
| 1.2 | 190003962021 | Болт | 1; | - | |
| 1.21 | Q5211630 | баут | 1; | - | |
| 1.22 | AZ9725520237 | балансирная ось | 1; | - | |
| 1.23 | Q150B0810 | болт | 1; | - | |
| 1.24 | Q72308T5F | уплотняющая шайба | 1; | - | |
| 1.25 | WG9014520306 | Fix washer | 1; | - | |
| 1.26 | WG9100520008 | Locate washer | 1; | - | |
| 1.3 | WG9925520223 | Sealing ring | 1; | - | |
| 1.4 | WG9114520223 | Sealing ring | 1; | - | |
| 1.5 | WG9725520238 | Spacing bush | 1; | - | |
| 1.6 | WG9725520239 | Press block | 1; | - | |
| 1.7 | Q150B1445TF2 | Болт | 6; | - | |
| 1.8 | Q40308 | Пружинная шайба | 8; | 10 ₽ - 60 ₽ | |
| 1.9 | Q150B0820 | болт | 8; | - | |
| 2 | Q151B22250 | Screw | 016; | - | |
| 3 | 190003888630 | Гайка | 016; | - | |
| 4 | WG9725520277 | Limit bracket | 2; | - | |
| 5 | WG9725520290 | Bracket | 1; | - | |
| 6 | WG9725520291 | Bracket | 1; | - | |
| 7 | Q40116 | Шайба | 8; | - | |
| 8 | Q151B1685 | Screw | 016; | - | |
| 9 | Q151B1665 | болт | 20; | - | |
| 10 | WG9725520776 | Limit block | 4; | - | |
| 11 | Q40314 | Пружинная шайба | 016; | - | |
| 12 | Q150B1460 | болт | 012; | - | |
| 13 | Q151B1690 | болт | 4; | - | |
| 14 | Q151B1675 | Screw | 020; | - | |
| 15 | 190003888459 | Гайка | 056; | - | |
| 16 | WG9725520302 | Junction plate | 1; | - | |
| 17 | Q40116 | Шайба | 8; | - | |
| 18 | 190003888459 | Гайка | 016; | - | |
| 19 | WG9725520279 | Limit bracket | 2; | - | |
| 20 | AZ9725520278 | Rubber bracket assemby | 4; | - | |
| 21 | AZ9725520294 | задний левый держательреактивного рычага | 1; | - | |
| 22 | AZ9725520295 | задний правый держатель реактивного рычага | 1; | - | |
| 23 | 190003888467 | Гайка | 012; | - | |
| 24 | AZ9631523175 | Pull level assemby | 4; | - | |
| 24 | Q151B20180TF3 | Screw | 4; | - | |
| 24.2 | AZ9631521179 | Washer | 2; | - | |
| 24.3 | AZ9631521180 | Cover | 2; | - | |
| 24.4 | AZ9631521177 | Pin assemby | 2; | - | |
| 24.6 | AZ9114521186 | Connect level | 1; | - | |
| 24.8 | WG9631520044 | End cover | 2; | - | |
| 25 | WG9925520366 | Spring block | 2; | - | |
| 26 | WG9725520286 | Rear leaf spring | 2; | - | |
| 26.1 | WG9725520286+00 | 1st piece of rear leaf spring | 1; | - | |
| 26.10 | WG9725520286+01 | 10th piece of rear leaf spring | 1; | - | |
| 26.11 | WG9725520286+01 | 11th piece of rear leaf spring | 1; | - | |
| 26.12 | WG9725520286+01 | 12th piece of rear leaf spring | 1; | - | |
| 26.13 | WG9725520286+01 | Central bolt | 1; | - | |
| 26.14 | WG9725520286+01 | Central bolt | 1; | - | |
| 26.2 | WG9725520286+00 | 2nd piece of rear leaf spring | 1; | - | |
| 26.3 | WG9725520286+00 | 3rd piece of rear leaf spring | 1; | - | |
| 26.4 | WG9725520286+00 | 4th piece of rear leaf spring | 1; | - | |
| 26.5 | WG9725520286+00 | 5th piece of rear leaf spring | 1; | - | |
| 26.6 | WG9725520286+00 | 1st piece of rear leaf spring | 1; | - | |
| 26.7 | WG9725520286+00 | 1st piece of rear leaf spring | 1; | - | |
| 26.8 | WG9725520286+00 | 1st piece of rear leaf spring | 1; | - | |
| 26.9 | WG9725520286+00 | 1st piece of rear leaf spring | 1; | - | |
| 27 | AZ9925520268 | Bolt | 8; | - | |
| 28 | WG9925520269 | Nut | 016; | - | |
| 29 | AZ9725520361 | V образная левая опора реактивного рычага | 1; | - | |
| 30 | AZ9725520362 | V образная правая опора реактивного рычага | 1; | - | |
| 31 | WG9714520227 | Stud | 8; | - | |
| 32 | Q40318 | Spring washer | 8; | - | |
| 33 | AZ9725529272 | Pull level assemby | 2; | - | |
| 33.10 | WG9725526205 | Bearing assemby | 1; | - | |
| 33.1 | WG9725526201 | Spherical seat-upper | 1; | - | |
| 33.11 | Q151B1855TF2 | болт | 1; | - | |
| 33.12 | Q40118 | прокладка | 1; | - | |
| 33.13 | Q40518 | Spring washer | 1; | - | |
| 33.14 | AZ9725527209 | Snap ring | 1; | - | |
| 33.15 | AZ9725527210 | End cover-upper | 1; | - | |
| 33.16 | AZ9725527211 | Connect level | 2; | - | |
| 33.17 | AZ9725529213 | Spherical pin | 2; | - | |
| 33.18 | AZ9725529216 | Locking ring | 4; | - | |
| 33.2 | WG9725527203 | Clamp | 1; | - | |
| 33.3 | WG9725528212 | Ball base | 2; | - | |
| 33.4 | WG9725529209 | Retainer | 2; | - | |
| 33.5 | WG9725529214 | Interior seal ring | 2; | - | |
| 33.6 | WG9725529215 | Outside seal ring | 2; | - | |
| 33.7 | AZ9725527202 | Pull level install base | 1; | - | |
| 33.8 | AZ9725527204 | Protect sleeve | 1; | - | |
| 33.9 | AZ9725527215 | Clamp | 1; | - | |
| 34 | WG9725520367 | Fasten shealth | 8; | - | |
| 35 | Q18422110TF3 | Screw | 8; | - | |
| 36 | 190003901905 | Lining pin | 4; | - | |
| 37 | AZ9725520250 | Guide plate | 4; | - | |
| 38 | Q40312 | Пружинная шайба | 016; | - | |
| 39 | Q151C1255 | Болт | 8; | - | |
| 40 | Q151C1255 | Болт | 8; | - | |
| 41 | AZ9003860003 | Screw | 4; | - | |
| 42 | AZ9003860004 | Screw | 8; | - | |
| 43 | 190003871353 | Гайка | 8; | - | |
| 44 | Q150B1450 | Screw | 4; | - | |
| 45 | Q151B20100TF3 | Screw | 8; | - | |
| 46 | Q151B1430TF3 | Screw | 016; | - | |
| 47 | WG9000520006 | Lining pin | 4; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
