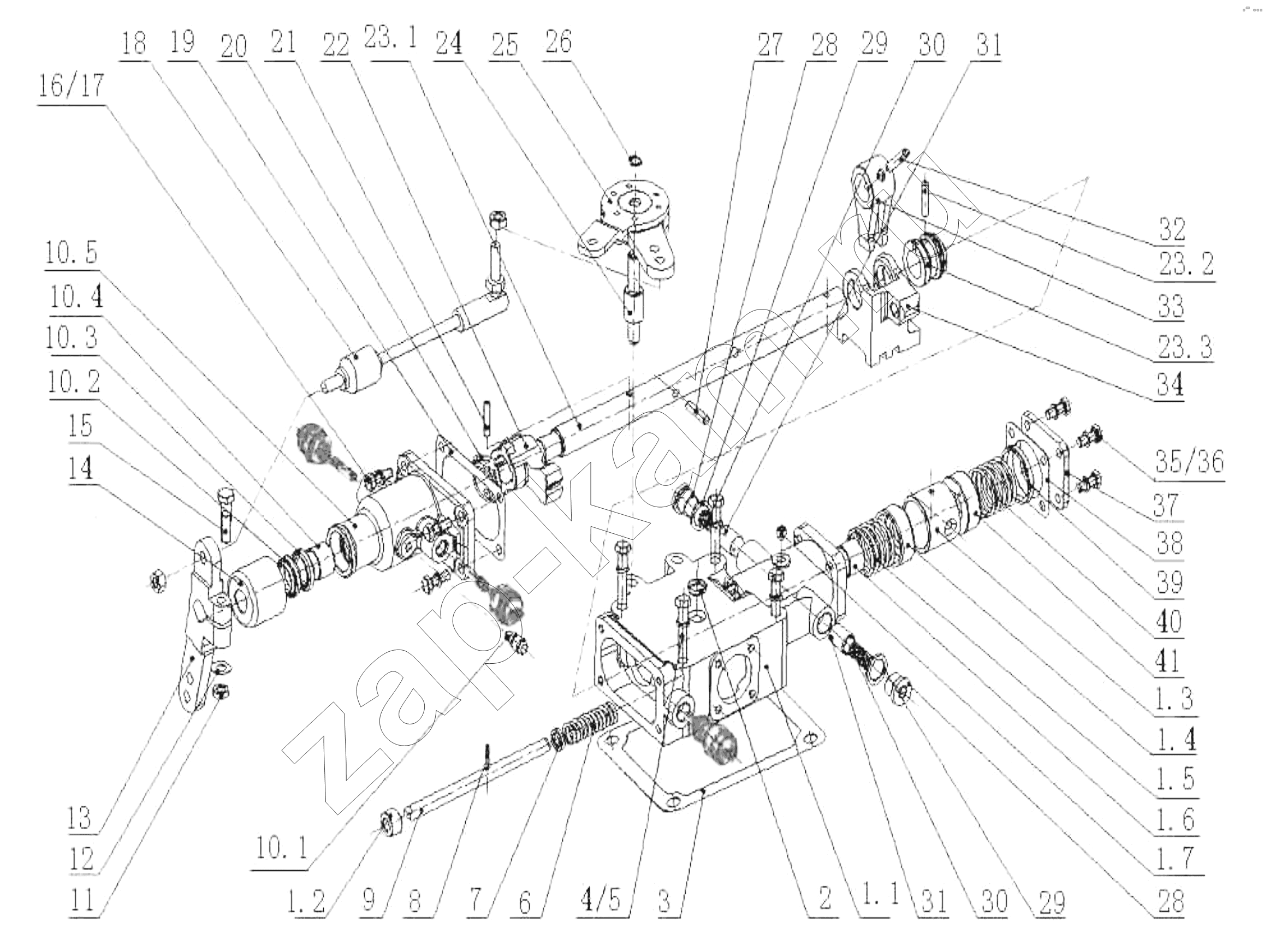

Small Cover
/ HOWO ZZ3327N3647C-N2WA
1.1
1.2
1.3
1.4
1.5
1.6
1.7
2
3
4
5
6
7
8
9
10.2
10.3
10.3
10.4
10.5
11
12
13
14
15
16
17
18
19
20
21
22
23.1
23.2
23.3
24
25
26
27
28
28
29
29
30
30
31
31
32
33
34
35
36
37
38
39
40
41
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | AZ2203210002 | House assy | 1; | - | |
| 1.1 | WG2222210042 | House | 1; | - | |
| 1.2 | WG2229210001 | Shealth | 1; | - | |
| 1.3 | WG2229210005 | Spacer sleeve | 1; | - | |
| 1.4 | WG2229210004 | Spring | 1; | - | |
| 1.5 | WG2229210003 | Spring | 1; | - | |
| 1.6 | WG2229002520 | Shealth | 1; | - | |
| 1.7 | WG2229210006 | Screw | 1; | - | |
| 1.8 | AZ9007970001 | Loctite glue | 1; | - | |
| 2 | Q72220 | Plug | 1; | - | |
| 3 | WG2229210050 | Paper gasket | 1; | - | |
| 4 | Q150B1085 | Screw | 1; | - | |
| 5 | Q40310 | Пружинная шайба | 1; | - | |
| 6 | WG2229210015 | Spring | 1; | - | |
| 7 | WG2229210011 | Spring block | 1; | - | |
| 8 | AZ9003343178 | Roller rod | 1; | - | |
| 9 | WG2212210002 | Shaft | 1; | - | |
| 10 | AZ2203210008 | End plate assemby | 1; | - | |
| 10.1 | Q901 | Air plug | 1; | - | |
| 10.2 | WG9003072502 | Oil seal | 1; | - | |
| 10.3 | WG9003072501 | Oil seal | 1; | - | |
| 10.4 | WG2229002520 | Shealth | 1; | - | |
| 10.5 | WG2222210034 | End plate assemby | 1; | - | |
| 11 | Q340B10T13F2 | I shape hex nut | 1; | - | |
| 12 | Q41810 | Шайба | 1; | - | |
| 13 | WG2214210004 | Swing arm | 1; | - | |
| 14 | WG2229210026 | Dust cover | 1; | - | |
| 15 | Q150B1040TF2 | Screw | 1; | - | |
| 16 | Q150B0825 | болт | 4; | - | |
| 17 | Q40308 | Пружинная шайба | 4; | 10 ₽ - 60 ₽ | |
| 18 | WG2229210041 | Support level | 1; | - | |
| 19 | WG2229210017 | End plate gasket | 1; | - | |
| 20 | WG2229210014 | Sensor drive ring | 1; | - | |
| 21 | Q5280632 | Elastic round rod | 1; | - | |
| 22 | WG2229210013 | Block | 1; | - | |
| 23 | AZ2203210007 | Flexible cable-change gear | 1; | - | |
| 23.1 | WG2212210003 | Flexible cable-change gear | 1; | - | |
| 23.2 | Q5280632 | Elastic round rod | 1; | - | |
| 23.3 | WG2229210002 | High low location ring | 1; | - | |
| 24 | WG2229270003 | Support axle | 1; | - | |
| 25 | WG2229210040 | Gear shift assemby | 1; | - | |
| 26 | Q43112 | Retainer | 1; | - | |
| 27 | WG2229210012 | Driving rod | 1; | - | |
| 28 | 190003960005 | Cylinder head inside hexagona | 2; | - | |
| 29 | Q72320 | Sealing washer | 2; | 190 ₽ | |
| 30 | WG2229210020 | Spring | 2; | - | |
| 31 | WG2229210018 | Range file locking pin | 2; | - | |
| 32 | WG2229210009 | Rod | 1; | - | |
| 33 | WG2214210002 | Block | 1; | - | |
| 34 | WG2214210001 | Fork | 1; | - | |
| 35 | Q150B0820 | болт | 4; | - | |
| 36 | Q40308 | Пружинная шайба | 4; | 10 ₽ - 60 ₽ | |
| 37 | WG2229210023 | Cover assy | 1; | - | |
| 38 | WG2229210024 | Gasket | 1; | - | |
| 39 | WG2229210022 | Spacer | 1; | - | |
| 40 | WG2229210021 | Spring | 1; | - | |
| 41 | WG2229210004 | Spring | 1; | - | |
| 42 | AZ9007970242 | Glue | 1; | - | |
| 43 | WG2229210036 | Locate sleeve | 2; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
