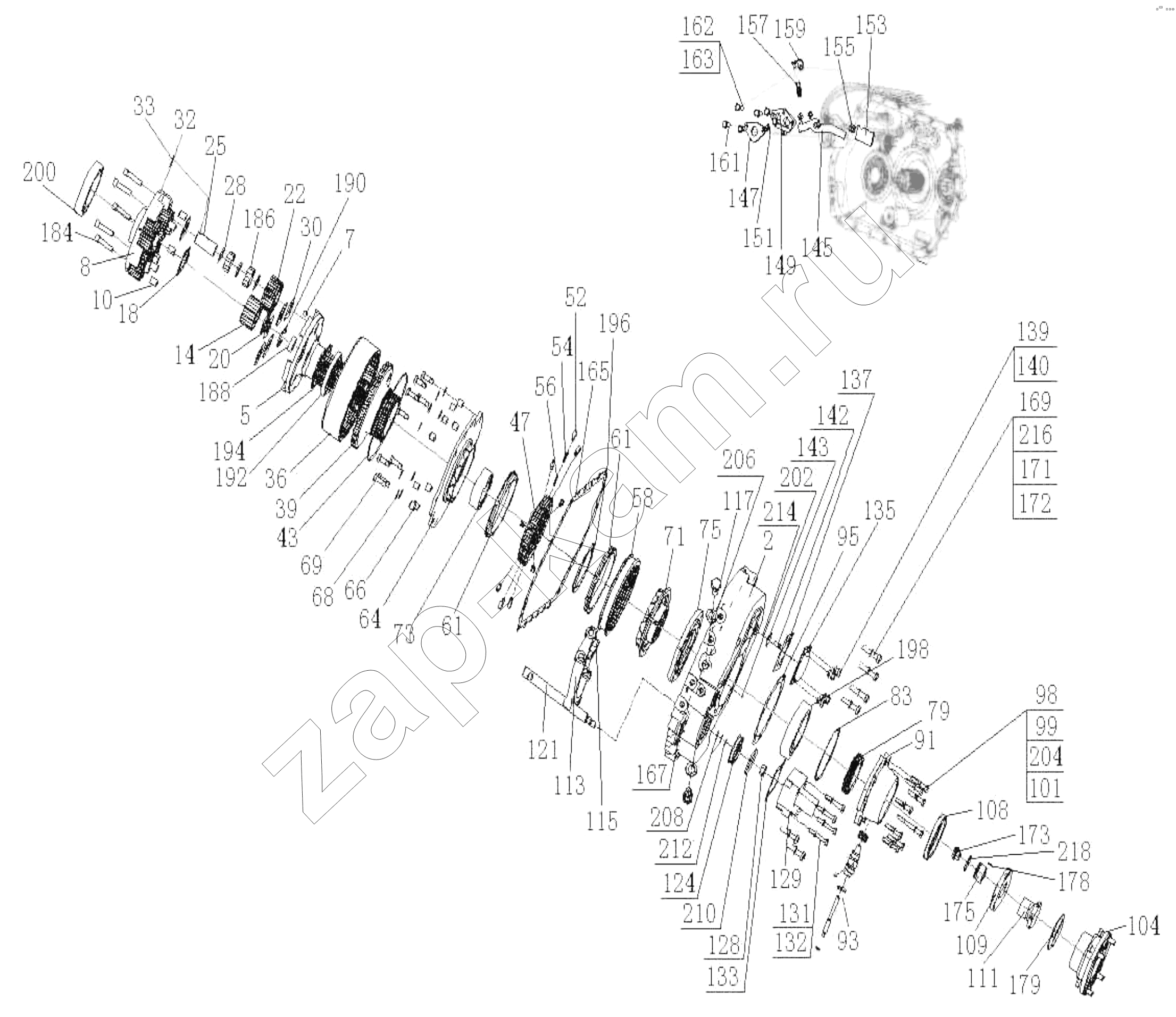

Sub Gearbox
/ HOWO ZZ3327N3647C-N2WA
2
5
7
8
10
14
18
20
22
25
28
30
32
33
36
39
43
47
52
54
56
58
61
61
64
66
68
69
71
73
75
79
83
91
93
95
98
99
101
104
108
109
111
113
115
117
121
124
128
129
131
132
133
135
137
139
140
142
143
145
147
149
151
153
155
157
159
161
162
163
165
167
169
171
172
173
175
178
179
184
186
188
190
192
194
196
198
200
202
204
206
208
210
212
214
216
218
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | AZ2203100015 | Range of box assembly file | 1; | - | |
| 2 | AZ2220100105 | Transmission housing | 1; | - | |
| 3 | AZ2203100102 | Planetary carrier | 1; | - | |
| 4 | AZ2203100004 | Output shaft assembly | 1; | - | |
| 5 | AZ2225100101 | Output shaft | 1; | - | |
| 7 | AZ9003335500 | Steel ball | 5; | - | |
| 8 | WG2225100102 | Front carrier | 1; | - | |
| 10 | WG2229100001 | Torque sleeve | 5; | - | |
| 13 | AZ9007970271 | Glue | 1; | - | |
| 14 | WG2210100101 | Sun gear | 1; | - | |
| 18 | WG2229100105 | Spacer | 1; | - | |
| 20 | WG2229100106 | Spacer | 1; | - | |
| 22 | WG2210100104 | Planetary gear | 5; | - | |
| 25 | WG2212100101 | Planets wheel | 5; | - | |
| 28 | WG2229100107 | Plate | 015; | - | |
| 30 | WG2229100108 | Spacer | 010; | - | |
| 32 | Q5280630 | Pin | 5; | - | |
| 33 | Q5280430 | Pin | 5; | - | |
| 36 | WG2210100105 | Gear ring | 1; | - | |
| 39 | WG2210100006 | Bracket | 1; | - | |
| 43 | WG2229100012 | Retainer | 1; | - | |
| 47 | WG2210100007 | Syn tooth base | 1; | - | |
| 52 | WG2229020001 | Block | 9; | - | |
| 54 | WG2229020002 | Spring | 9; | - | |
| 56 | WG2229020003 | Spring cage | 9; | - | |
| 58 | WG2210100008 | Syn sleeve | 1; | - | |
| 61 | WG2210100009 | Syn ring | 2; | - | |
| 64 | WG2203100005 | Gear hub assemby | 1; | - | |
| 66 | WG2229100002 | Torque sleeve | 9; | - | |
| 68 | Q40112 | Шайба | 9; | - | |
| 69 | Q150B1235 | болт | 9; | - | |
| 70 | AZ9007970271 | Glue | 1; | - | |
| 71 | WG2203100006 | Gear hub assemby | 1; | - | |
| 73 | WG2229100032 | Block sleeve | 1; | - | |
| 75 | WG2203100007 | Guide ring assemby | 1; | - | |
| 77 | AZ9007990001 | Glue | 1; | - | |
| 79 | WG2210100015 | Range worm | 1; | - | |
| 83 | AZ2208100003 | Adjust shim | 1; | - | |
| 84 | WG2229100035 | Adjust shim | 1; | - | |
| 86 | WG2229100036 | Adjust shim | 1; | - | |
| 88 | WG2229100037 | Adjust shim | 1; | - | |
| 90 | AZ2203100008 | End plate assemby | 1; | - | |
| 91 | WG2222100001 | End plate assemby | 1; | - | |
| 93 | WG2203100009 | Connected assemby | 1; | - | |
| 95 | WG2229100041 | End plate gasket | 1; | - | |
| 98 | Q150B1055 | болт | 6; | - | |
| 99 | Q170B1055 | Hex holed bolt | 1; | - | |
| 101 | Q40310 | Пружинная шайба | 7; | - | |
| 102 | AZ9007970242 | Glue | 1; | - | |
| 103 | AZ9007990001 | Glue | 1; | - | |
| 104 | WG2210100018 | Output flange | 1; | - | |
| 108 | AZ9003070105 | Oil seal | 1; | - | |
| 109 | WG2229100072 | Press block | 1; | - | |
| 111 | WG2229100073 | Bolt | 1; | - | |
| 113 | WG2214100001 | Shaft fork | 1; | - | |
| 115 | WG2229100042 | Shaft fork swing block | 2; | - | |
| 117 | WG2229100043 | Shaft fork support pin | 2; | - | |
| 120 | AZ9007970242 | Glue | 1; | - | |
| 121 | WG2214100002 | Shaft fork | 1; | - | |
| 124 | WG2229100050 | Piston | 1; | - | |
| 128 | AZ9003870016 | Hex nut | 1; | - | |
| 129 | WG2222100009 | Cyclinder | 1; | - | |
| 131 | Q150B1065 | Hex bolt | 4; | - | |
| 132 | Q40310 | Пружинная шайба | 4; | - | |
| 133 | WG2229100049 | Paper gasket | 1; | - | |
| 135 | WG2229100047 | Pto shaft cover | 1; | - | |
| 137 | WG2229100048 | Plate gasket | 1; | - | |
| 139 | Q150B1216 | регулировочная шайба | 4; | - | |
| 140 | Q40312 | Пружинная шайба | 4; | - | |
| 142 | Q150B0820 | болт | 1; | - | |
| 143 | AZ2229100075 | Cover | 1; | - | |
| 144 | AZ9007990001 | Glue | 1; | - | |
| 145 | WG2229100051 | Plate | 1; | - | |
| 147 | WG2229100052 | Subplate | 1; | - | |
| 149 | WG2229100053 | Plate | 1; | - | |
| 151 | WG2229100054 | Press block | 5; | - | |
| 153 | WG2229100055 | Plate | 1; | - | |
| 155 | WG2229100056 | Pin | 1; | - | |
| 157 | WG2229210019 | Spring | 1; | - | |
| 159 | WG2203100012 | Pin | 1; | - | |
| 161 | Q150B1025 | болт | 5; | - | |
| 162 | Q150B1020 | болт | 1; | - | |
| 163 | Q40310 | Пружинная шайба | 1; | - | |
| 164 | AZ9007970271 | Glue | 1; | - | |
| 165 | WG2229100062 | Paper gasket | 1; | - | |
| 167 | WG2229100061 | Hange plate | 1; | - | |
| 169 | Q150B1050 | Hex bolt | 016; | - | |
| 171 | Q150B1060 | Hex bolt | 6; | - | |
| 172 | Q40310 | Пружинная шайба | 024; | - | |
| 173 | WG2229100011 | Fasten nut | 1; | - | |
| 175 | WG2229100071 | Plug | 1; | - | |
| 178 | Q5280514 | Spin | 1; | - | |
| 179 | WG2229100074 | Locking plate | 1; | - | |
| 181 | AZ9007970242 | Glue | 1; | - | |
| 184 | WG9003821250 | Screw | 5; | - | |
| 186 | WG9003320816 | Roller bearing | 150; | - | |
| 188 | WG9003326322 | Roller bearing | 1; | - | |
| 190 | WG9003991056 | Retainer | 1; | - | |
| 192 | WG9003321820 | Roller bearing | 1; | - | |
| 194 | WG9003991125 | Retainer | 1; | - | |
| 196 | WG9003991130 | Retainer | 1; | - | |
| 198 | WG9003326218 | Roller bearing | 1; | - | |
| 200 | WG9003326020 | Roller bearing | 1; | - | |
| 202 | WG9003070800 | O-ring | 1; | - | |
| 204 | WG9003801187 | Bolt | 1; | - | |
| 206 | WG9003990024 | Wave spring washer | 2; | - | |
| 208 | WG9003072503 | O-ring | 2; | - | |
| 210 | WG9003076900 | O-ring | 1; | - | |
| 212 | WG9003071700 | O-ring | 1; | - | |
| 214 | WG9003070800 | O-ring | 1; | - | |
| 216 | WG9003801058 | Hex bolt | 2; | - | |
| 218 | WG9003073150 | O-ring | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
